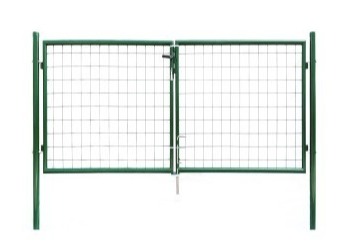

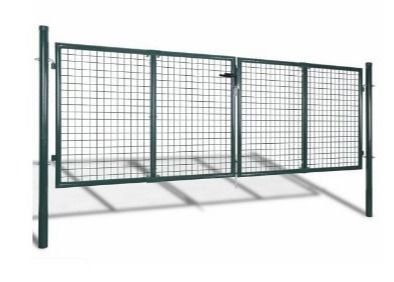

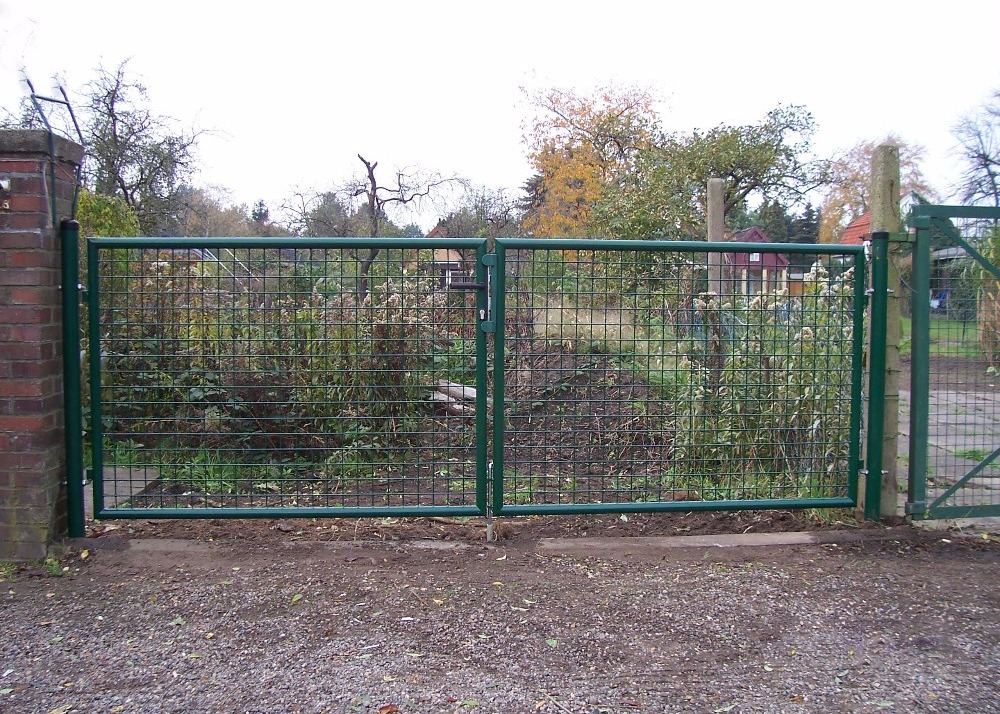

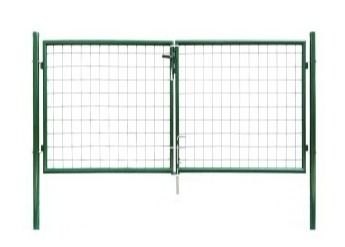

Wire Mesh Fence Double Gate With Safty Lock Round Post Green Pvc Coated Europe Metal Garden Fence Gate
Metal Garden Fence Gate Description
The garden gate is designed to simple and generous beauty. It’s also devised to use easy assemble accessories to make quick installation and locking. But it’s strong enough and durable in years.
Note:
1, Post: can be used in Round or square shape.
2, Mesh: Welded square mesh panel or 3D panel.
3, Leaf with: Depended on the actual request.
4, Gate Frame: Double or Single gate.
Metal Garden Fence Gate Specification
Gate panel
Material: Low carbon steel wire, galvanized steel wire.
Wire Diameter: 4.0 mm, 4.8 mm, 5 mm, 6 mm.
Mesh opening: 50 × 50, 50 × 100, 50 × 150, 50 × 200 mm, or customized.
Gate height: 0.8 m, 1.0 m, 1.2 m, 1.5 m, 1.75 m, 2.0 m
Gate width: 1.5 m × 2, 2.0 m × 2.
Frame diameter: 38 mm, 40 mm.
Frame thickness: 1.6 mm
| Width | Height | Frame pipe | Post size | Mesh inside | Tube inside | ||||
| size | Thickness | Size | Thickness | Wire Dia. | Hole size | Pipe size | Distance | ||
| 2m 3m 4m 6m 8m |
1m 1.2m 1.5m 1.8m 2m 2.2m 2.4m |
40*60mm 50*50mm 60*60mm 60x80mm |
1.5mm 2.0mm 2.5mm |
60x60mm 80x80mm 100x100mm |
1.8mm 2.0mm 2.5mm 3.0mm |
4mm 5mm 6mm |
50x100mm 50x200mm 75x150mm 75x200mm 10Ox200mm |
20x20mm 20x30mm |
100mm 120mm 140mm |
| Surface treatment | 1.Hot-dipped galvanized after black wire and tube welded 2.Powder coated aftergalvanized wire and tube welded |
||||||||
Post
Material: Round tube or square steel tube.
Height: 1.5–2.5 mm.
Diameter: 35 mm, 40 mm, 50 mm, 60 mm.
Thickness: 1.6 mm, 1.8 mm
Connector: Bolt hinge or clamp.
Accessories: 4 bolt hinge, 1 clock with 3 sets of keys are included.
Process: Welding → Making folds → Pickling → Electric galvanized/hot-dipped galvanized → PVC coated/spraying → Packing.
Surface Treatment: Powder coated, PVC coated, galvanized.
Color: Dark green RAL 6005, anthracite grey or customized.
Package:
Gate panel: Packed with plastic film + wood/metal pallet.
Gate post: Each post packed with PP bag, (post cap must be covered well on the post), then shipped by wood/metal pallet.
Metal Garden Fence Gate Feature
1. Robust structure offer high strength & durable.
2. Attractive appearance bright your garden.
3. Quick lock system for extra safety.
4. Resistance to aging, UV & bad weather.
5. Mounting posts for easy installation.
6. Powder coated is anti-rust
7.180° opening angle is flexible.
