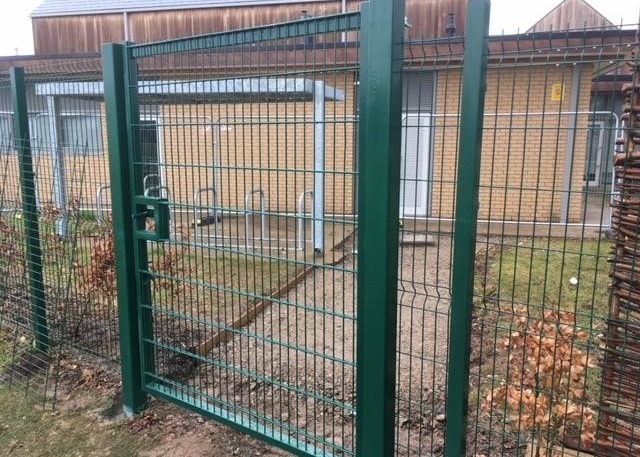

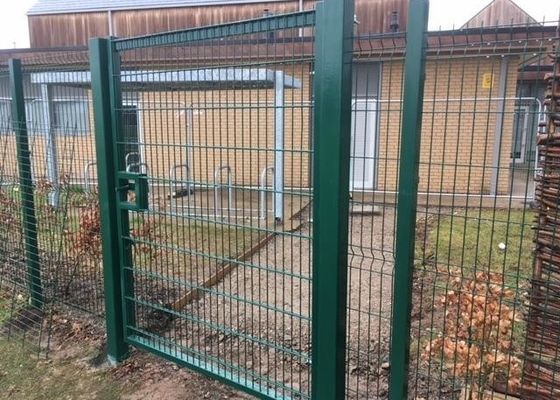

Pvc Coated Wire Mesh Fence Single Europe Garden Gate With Safety Lock Round Post
Metal Garden Fence Gate Description

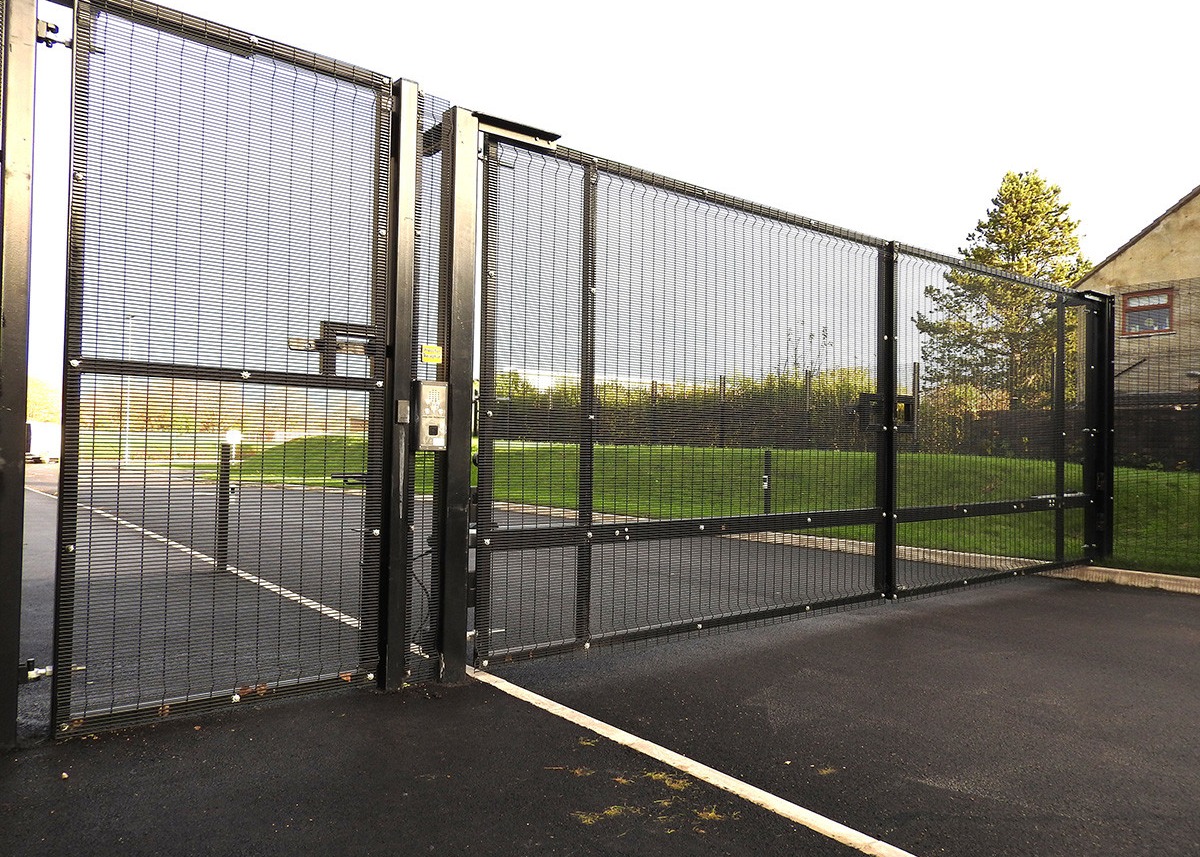

Usually when a project need go for 3D mesh fence, they will need suitable gate, basically they have options like single leaf swing gate, double leaf swing gate, singe drive or double drive cantilever slide gate, when we go for Cantilever slide gate, it will be two basic design show like chart going, there will be cantilever post and 2 sets of wheel fix on both side to make sure the gate slide in right way, can be manual or automatic drive. here I give you classic H 2 m * W 10 m 3D curved wire mesh manual drive cantilever-slide fence gate system for safety on sale, made by lower carbon steel, galvanized and power coated, panel made by classic 3D wire mesh panel, go with wire dia 4 mm, mesh size 200 mm * 50 mm, frame 50 mm * 50 mm * 2 mm, post would be square tube, 100 mm * 100 mm * 3 mm. gate height 2 m, width 10 m, this classic used a lot in project.
Metal Garden Fence Gate Size
| Width | Height | Frame pipe | Post size | Mesh inside | Tube inside | ||||
| size | Thickness | Size | Thickness | Wire Dia. | Hole size | Pipe size | Distance | ||
| 0.9m 1m 1.2m 1.5m 1.8m |
1m 1.2m 1.5m 1.8m 2m 2.2m 2.4m |
30x50mm 40x40mm 40x60mm 5Ox50mm 60x80mm |
1.2mm 1.5mm 2mm |
5Ox50mm 60x60mm 80x80mm 100x100mm |
1.5mm 1.8mm 2mm 2.5mm 3mm |
4mm 5mm 6mm |
50x100mm 50x200mm 75x150mm 75x200mm 10Ox200mm |
20x20mm 20x30mm |
100mm 120mm 140mm |
| Surface treatment | 1.Hot-dipped galvanized after black wire and tube welded 2.Powder coated aftergalvanized wire and tube welded |
||||||||
Metal Garden Fence Gate Feature and Benefit
* classic design for 3D fence system
* manual drive
How to install Metal Garden Fence Gate ?
Metal Garden Fence Gate Packaging & Delivery
