3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds

100 set
MOQ
5-19
Price
3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Metal
Service: 3D Modeling
Product Name: 3D Wire Mesh Fence
Mesh Size: 50*200mm
Wire Diameter: 4mm, 5mm, Custom
Post Size: 40*60mm,60*60mm
Panel Height: 1.03M-2.43m Or Custom
Post Thickness: 1.0mm,1.2mm,1.5mm,2.0mm
Surface Treatment: Powder Coating, PVC Coating, Galvanized
Minimum Order Quantity: 50sets
Height: 1830mm
Length: 2500mm
Opening Size: 50*200mm
Packaging Details: 1.panel And Post All Bulk In The Container 2.panel With Pallet And Post Bulk 3.panel And Post All Packing With Pallet
Shape: Rectangle
Frame Finishing: Pvc Coated
Highlight:

3mm garden wire mesh fence

,

v folds garden wire mesh fence

,

3mm green wire fencing

Basic Infomation
Place of Origin: china
Brand Name: BD fence
Certification: iso ce
Model Number: 3D fence
Payment & Shipping Terms
Packaging Details: the pallet
Delivery Time: 5-20 days
Payment Terms: L/C, T/T
Supply Ability: 1000 Set/Sets per Month
Product Description

Triangle Bend Fence also known as 3D fence, is a special design for fencing and security protection. Compared with traditional two-dimensional fences, 3D fences achieve higher safety and protection through structural and design innovations.The 3D fence uses a three-dimensional design, with multiple levels and different heights of protection structures. It usually consists of a vertical metal pole or post and a transverse connecting rod. These connecting rods can form a mesh structure,forming a dense grid to prevent people or animals from crossing.





Wire mesh fence is a steel fence using wire strands welded together to form a high strength mesh. Welded wire mesh fences are used predominantly as high security barriers where visibility through the fence is necessary or desirable. We can produce both fence panel and gates.

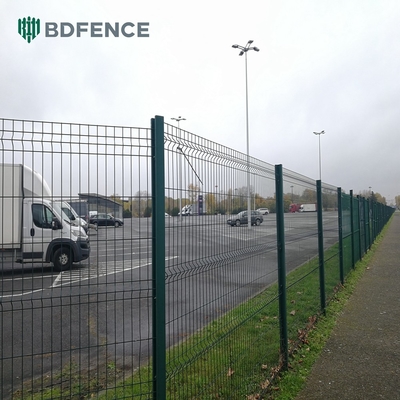

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 0

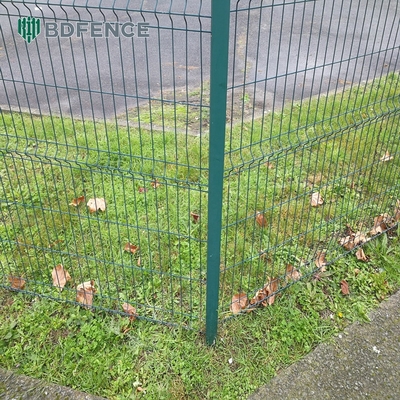

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 1
Specifications for 3D Wire Fence:
Choose the size you want as follows
3D Wire Fence Specification
Panel height
Panel Length
Wire diameter
Mesh Size
Folds No
1.03m





2.5m or custom




4.0mm
4.5mm
5.0mm




50*200mm
55*200mm
2
1.23m
2
1.53m
2
1.73m
3
1.83m
3/4
2.03m
4
2.43m
4



Panel Height Panel Width Wire Dia. Profiles Mesh Size Post Height Post size
630mm 2500mm 5mm 2 200x50mm 1100mm 48*1.5mm
1030mm 2500mm 5mm 2 200x50mm 1600mm 48*2mm
1530mm 2500mm 5mm 3 200x50mm 2100mm 60*1.8mm
1730mm 2500mm 5mm 3 200x50mm 2400mm 60x1.8mm
2030mm 2500mm 5mm 4 200x50mm 2600mm 75*2mm
2430mm 2500mm 5mm 4 200x50mm 3100mm 75*2mm



Product Feature

•Easy Installation

•Cost effective

•Durable, corrosion resistance, Galvanized wire then PVC coated

•Different colors available according to customers’ special requirements. RAL 6005, 7016, etc

•Different post available

•anti-climbing, high strength, strong protection ability

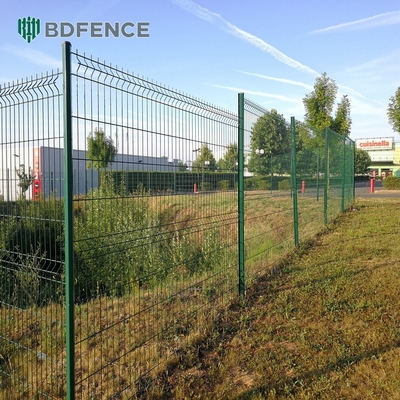

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 2

Packaing

1) Pallet packing: it makes the transportation of goods safer and more reliable, ensuring complete transportation of the goods to the customer’s warehouse.

Normally 120pcs/ Pallet, special loading capacity available depended on different request.

2) The entire pallet will be wrapped by stretch film to ensure the tidiness of the goods and prevent the pallet from bumping and scratching

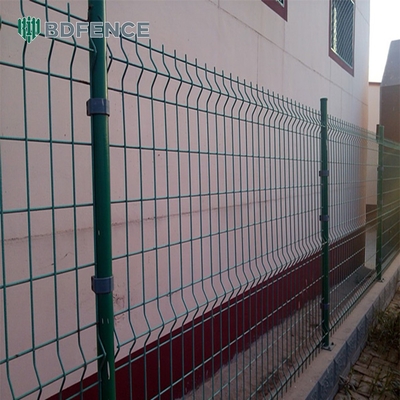

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 3

Company Introduction



Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety metal fences. We engaged in the production, research, development, sales, and services of metal fences, gates, and barriers.

BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough knowledge on how to produce top-quality fencing which led us to become a trusted supplier & exporter globally.

As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing metal fences with excellent quality. With professional experience in the metal fence business, our skilled staff members are able to provide the highest level of support, including drafting and engineering of our products. In order to meet our clients’ project requirements.

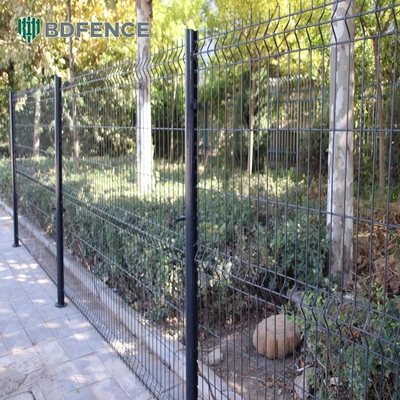

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 4

What clients said about BD Fence.

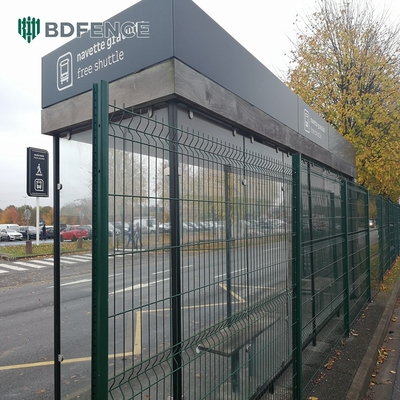

3mm 3d Fence Panels Coated Border Green Garden Wire Mesh Fence With V Folds 5

Our Service

1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .



FAQ

1.Are you a factory?

Answer:yes,we are a factory that manufactured fence for 32 years.

2.Can you send the cargo to seaport? Where is your nearest sea port?

Answer:yes, sure ,our nearest seaport is Xingang Port.

3.How about the height fence?

Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.

4.Can I have more details of the fence, such as real picture and the accessories?

Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.

5.Can you make the color according to our request?

Answer: yes,we can ,the common color is Green,Yellow,White,Gray. If you have more question, please contact us for best service

6.How long does it take to produce?

3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.

7.Do I need to hire a professional installer for my metal fence?

All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
