Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld

50set
MOQ
USD 5-8 set
Price
Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld
Features Gallery Product Description Request A Quote
Features
Specifications
Hole Shape: Hexagonal
Wire Gauge: 2.0-3.7mm
Processing Service: Woven
Packing: Pallet
Width: 0.5-2m
Length: 1-30m
Surface Treatment: Galvaized, Galfan, PVC Coated
Aperture: 50x50, 50x75,75x75, 50x100mm Etc.
High Light:

2mm gabion fence system

,

stone filled galvanized gabion fence system

,

2mm galvanized gabion box

Basic Infomation
Place of Origin: china
Brand Name: BD fence
Certification: iso ce
Model Number: woven gabion
Payment & Shipping Terms
Packaging Details: Pallet
Delivery Time: 5-20days
Payment Terms: T/T
Supply Ability: 50000 square meter a week
Product Description

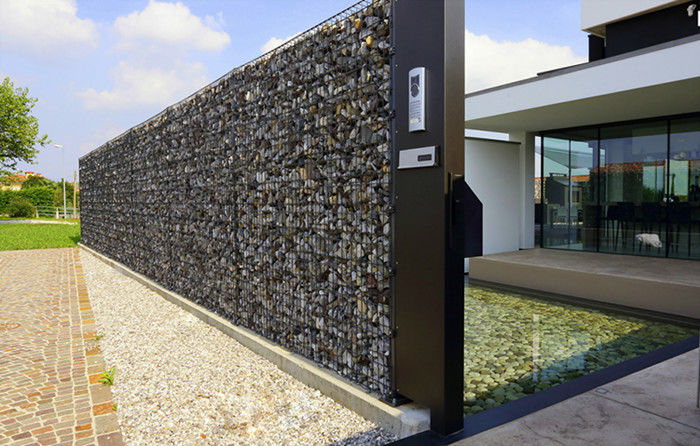

Welded gabion box is made of mesh sheets connected by spring wire, which has very strong robustness

and anti corrosion. It is mainly used for park and urban landscape with a simple construction, beautiful

structure and easy installation, it is an ideal product for home decoration and slope protection.

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 0

Features: Simple installation. Weather proof under natural destroys corrosion resistant;No collapse even
under big scope of deforming;Sludge in the stones is good for plant growing. Mixed to form a integrity with
the natural environment;Good permeation can prevent the damage by hydrostatic. Common size:1*1*1m ,
2*1*1m Customized size is acceptable.
Welded Gabion Basket
Gabion Basket (M)
Wire Diameter
Mesh
1*0.3*0.3



3.5mm
4mm
5mm
6mm




50*50 mm
50*100 mm
100*100 mm
1*0.5*0.3
1*0.5*0.5
2*1*0.5
1*1*0.5
1*1*1
1.5*1*1
2*1*1
Material: Hot dip galvanized, Galfan galvanized wire, Pvc coated galvanized
Zinc coated: 200-300 g/m³
Stiffener length: 300 mm

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 1

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 2

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 3

Gabion Box are wire containers made of hexagonal wire netting. Wire diameter varies with the hexagonal

For hexagonal wire netting with no pvc coating, the wire diameter ranges from 2.0mm to 4.0mm.

For those PVC coated hexagonal wire netting, the outside diameter ranges from 3.0mm to 4.0mm.

The wire of the outside frame edge is one of wire gauge thicker than the wire used for hexagonal wire netting

Dimensions(cm)
Capacity (m3)
Wire(mm)
Mesh (mm)
Surface Treatment
100x30x30
0.09

4.00
4.50
5.00
5.50
6.00


50 x 50
50 x 100
50 x 75
75 x 75
100 x 100



Hot dipped galvanized
Galfan Wire
PVC Coated
100x50x30
0.15
100x80x30
0.24
100x100x50
0.50
100x100x100
1.00
150x100x50
0.75
150x100x100
1.50
200x100x50
1.00
200x100x100
2.00
Customization accepted





Material
Galvanized Steel Wire, Galfan Steel Wire/Zinc-5%Aluminum Wire
Wire Diameter
3 mm-6 mm
Aperture
50*50 mm, 50*100 mm etc
Gabion Box Size
100*30*30 cm, 100*50*30 cm, 100*100*50 cm, 100*100*100 cm etc.
Finish
Hot Dipped Galvanized; Heavy Zinc Coating;Galfan Coating;PVC Coated.
Normal Box Size(cm)
Diaphragms
Capacity (m3)
Mesh Size(mm)
100x30x30
None
0.09






50×50 or 100×50
100x50x30
None
0.15
100x100x50
None
0.5
100x100x100
None
1
150x100x50
1
0.75
150x100x100
1
1.5
200x100x50
1
1
200x100x100
1
2
Other sizes can be customized.




Application of Hexagonal Gabion:
· Control and guide rivers and floods
· Flood discharge and diversion dams
· Rock fall protection · Preventing soil erosion
· Bridge protection · Soil fixation structure
· Coastal Defense Engineering
· Port Engineering · Retaining wall
· Road protection

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 4

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 5

Company Introduction



Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety metal fences.

We engaged in the production, research, development, sales, and services of metal fences, gates, and barriers.

BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough knowledge

on how to produce top-quality fencing which led us to become a trusted supplier & exporter globally.

As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing metal fences with

excellent quality. With professional experience in the metal fence business, our skilled staff members are able to

provide the highest level of support, including drafting and engineering of our products. In order to meet our

clients’ project requirements.

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 6

What clients said about BD Fence.

Wire Mesh 2mm Gabion Fence System Galvanized Pvc Coated Stone Filled Weld 7

Our Service

1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .



FAQ

1.Are you a factory?

Answer:yes,we are a factory that manufactured fence for 32 years.

2.Can you send the cargo to seaport? Where is your nearest sea port?

Answer:yes, sure ,our nearest seaport is Xingang Port.

3.How about the height fence?

Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.

4.Can I have more details of the fence, such as real picture and the accessories?

Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.

5.Can you make the color according to our request?

Answer: yes,we can ,the common color is Green,Yellow,White,Gray. More Questions If you have more question, please contact us for best service Contact Now

6.How long does it take to produce?

3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.

7.Do I need to hire a professional installer for my metal fence?

All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
