Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems

100sets
MOQ
3-10dollors
Price
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems
Features Gallery Product Description Request A Quote
Features
Specifications
Type: Woven Mesh
Hole Shape: Hexagonal
Processing Service: Bending, Cutting
Product Name: Gabions, Gabion Basket, Gabion Box, Gabion Mesh,
Gabion Box Size: 2x1x1m, 3x1x0.5m, 3x1x1m, 3x2x0.17, 4x1x0.3m
Feature: Anti-corrosion
Color: Dark Green, Grey, Silver
Material: Low-Carbon Iron Wire, Galvanized Wire, PVC Coated
Application: Gabions, River Bank
Wire Gauge: 2.0-4.0mm
Delivery Time: 20-25days
Hole Size: 80x100mm, 100x120mm, 60x80mm
Packing: Bundle
Sample: Avaliable
High Light:

zinc coating gabion mesh fence

,

gabion mesh fence 200mm

Basic Infomation
Place of Origin: Hebei Anping
Brand Name: Bending fence
Model Number: GF130
Payment & Shipping Terms
Packaging Details: 1,Panels in Wooden Pallet; 2,Post with Bubble Film; 3,Accessories in Carton Box.
Delivery Time: 20-25days
Payment Terms: L/C, T/T
Supply Ability: 5000sets/month
Product Description

Product Information

Gabion is very popular in construction with its stable structure, high flexibility, and corrosion resistance. We can supply two kinds of gabion: welded gabion and woven gabion.

Woven gabion boxes are made of high-quality steel wire, which has 2 types of fabrication: double or triple twist fabric. The fabric structures are flexible and variable. Compared with welded gabion baskets, woven gabion baskets have durability for long service life.
Woven gabion boxes can be widely used for erosion protection, roadway and bridge protection, gravity retaining wall, slope paving, and riverbank controlling.

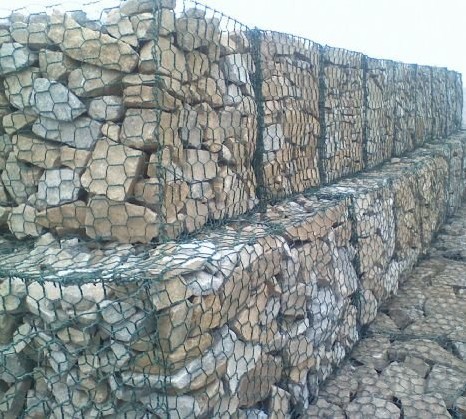

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 0

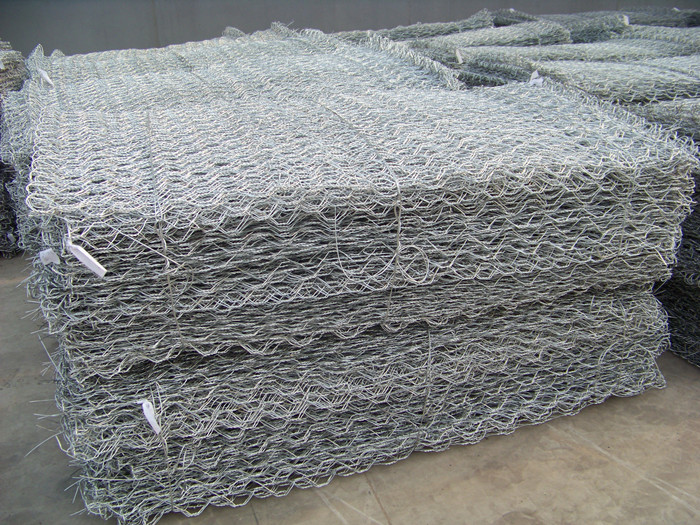

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 1
Gabion Baskets
Gabion iron wire basket are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires, the
mesh shape is hexagonal style.
The gabion retaining wall are used widely in slope protection,mountain rock holding,gabion for river bank protection
Standard
ASTM 975 Standards:
style 1 Galvanized wire as per ASTM A 641, class 3 soft temperstyle 2 Same as style 1 with extra coating with PVC.style 3 Zn-5Al or Zn-10Al coated wire as per ASTM A 856, also known as Galfan
wire.
EN 10223-3 standard:
Galvanized wire meets EN 10244-2 and old BS 443Wire tensile strength is between 380N/mm2 and 550N/mm2 as per BS 1052.
Aperture
(mm)
Wire Diameter
(mm)
Edge wire
(mm)
Gabion Sizes
(m)
Material
(zinc coating)
60x80mm
2.2mm/2.7mm
2.4mm/3.4mm
6x2x0.3m/2x1x0.5m
1.galvanized steel wire
2.high zinc steel wire
3.pvc coating steelwire
80x100mm
2.7mm/3.0mm/3.2mm
2.4mm/3.4mm
2x1x1/3x1x1m/4x1x1m
100x120mm
3.0mm/3.05mm/3.2mm
3.4mm
3x1x1/4x1x1m/5x1x1m
bar between mesh
80x100mm
2.7mm/3.0mm/3.2mm
2.4mm/3.4mm
2x1x3m/2x1x6m

production process

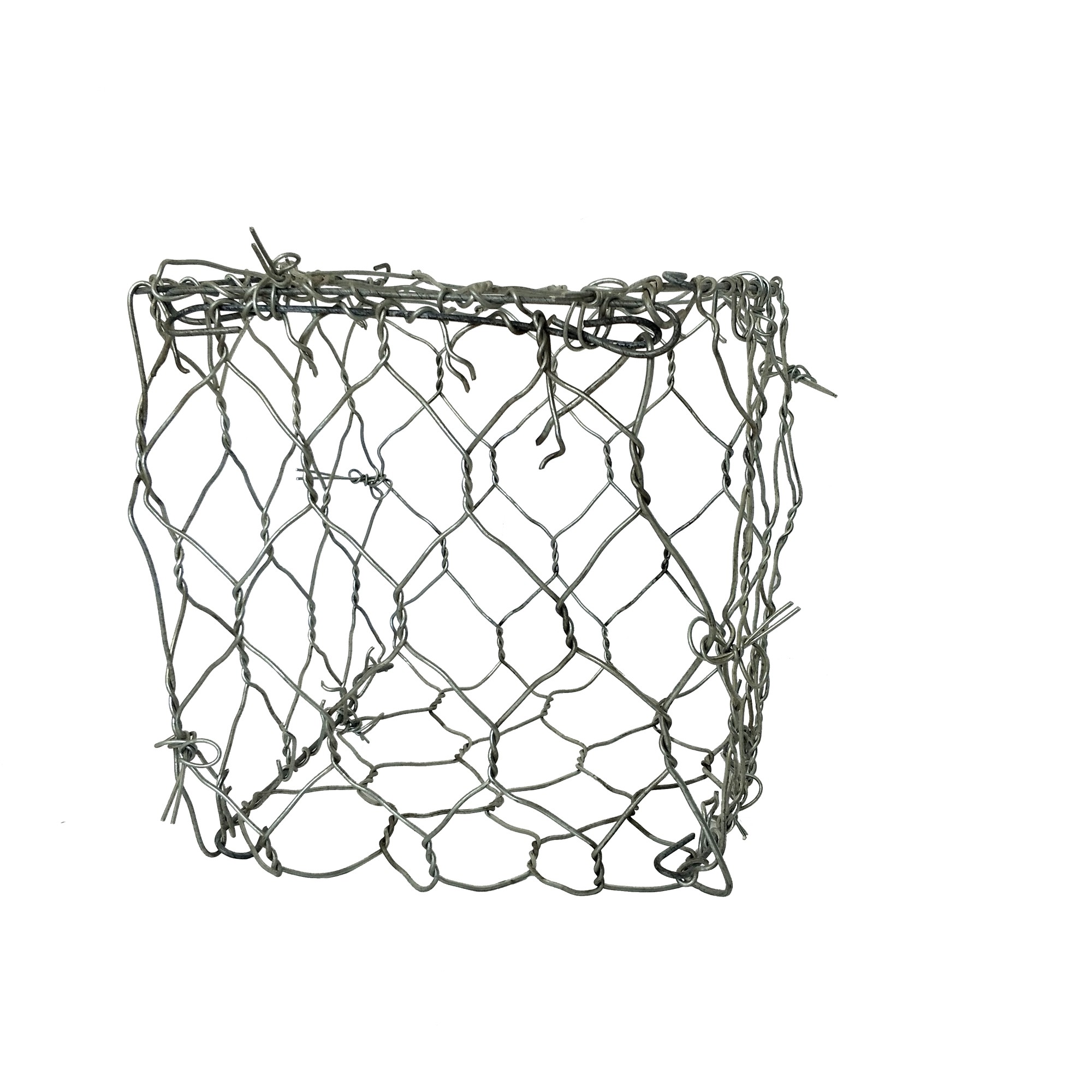

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 2

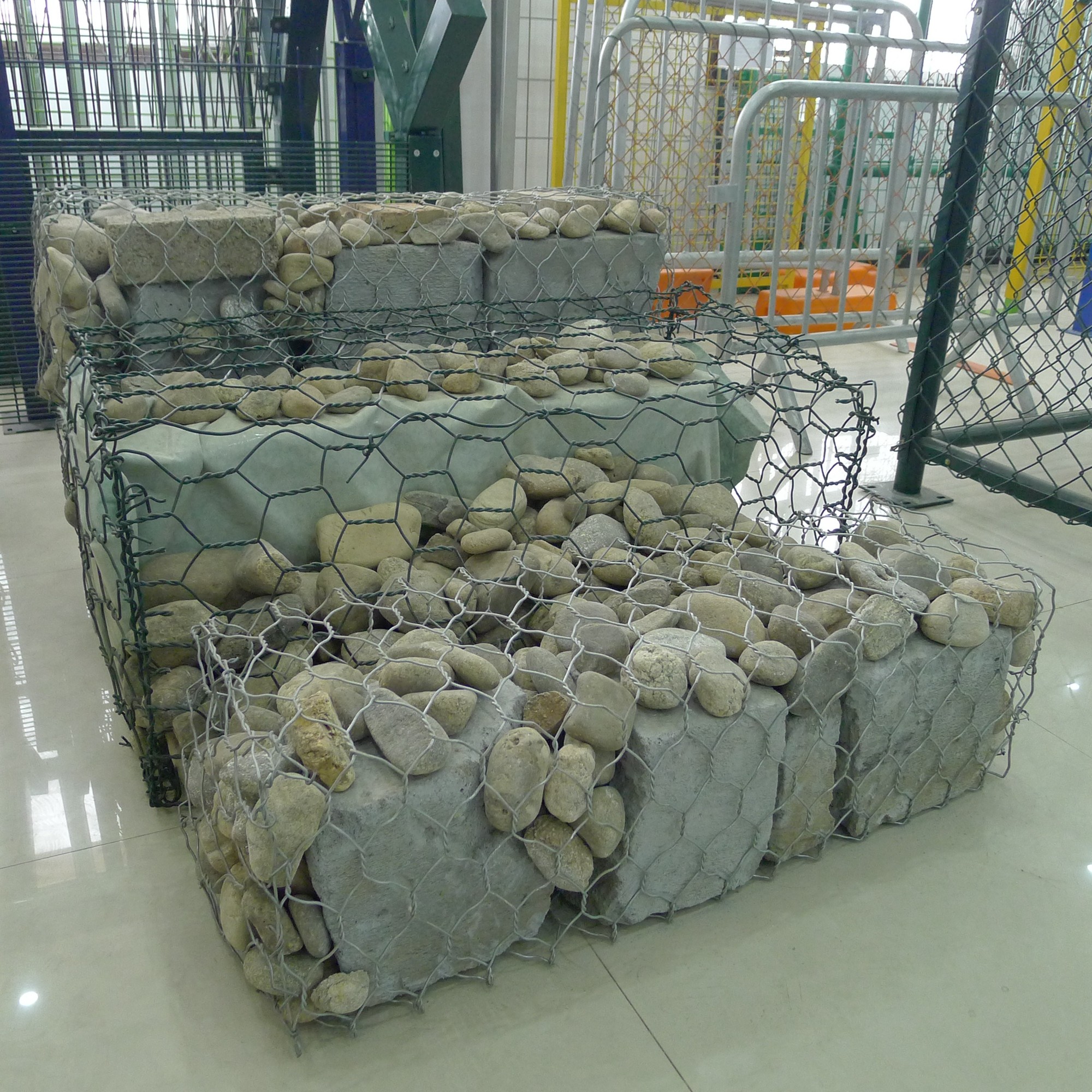

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 3
Product specifications

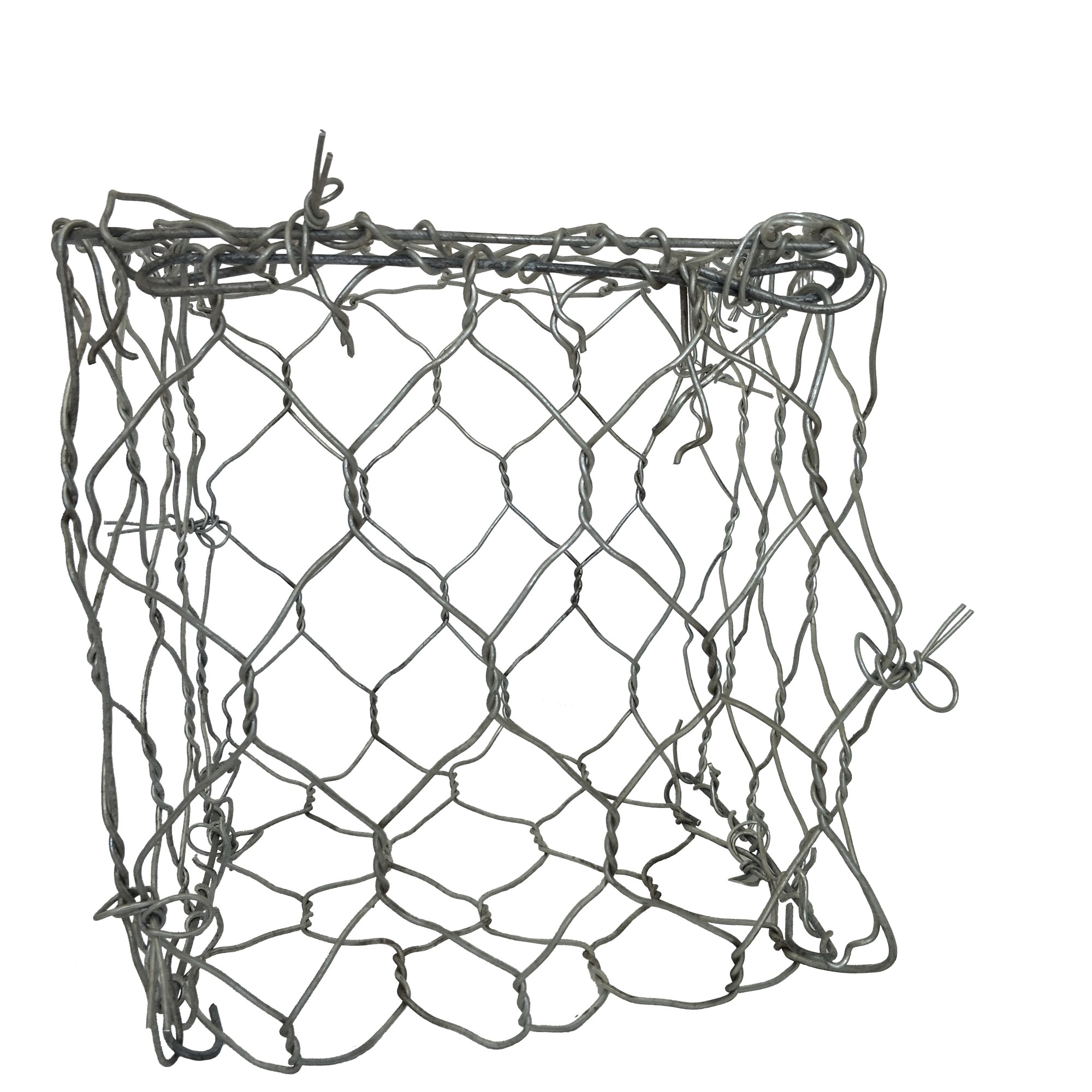

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 4

3x1x1m Gabion Baskets

wire diameter:2.7mm/3.0mmedge wire:3.4mm
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 5

4x1x1m Gabion Baskets

wire diameter:2.7mm/3.0mmEdge wire:3.4mm
Tie wire:2.2mm
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 6

6x2x0.3m Gabion Baskets

Wire diameter:2.2mmEdge wire:2.7mm
Tie wire:2.2mm
Mesh size:60x80mm/80x100mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 7

PVC Coated Gabion Protection Net

wire diameter:2.2/3.3mmedge wire:3.4/4.4mm
tie wire:2.2/3.2mm
mesh size:80x100mm/100x120mm
Size:2X30m/Roll
zinc coating:40-60g/㎡
high zinc :250g/㎡
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 8

PVC Coated Gabion Baskets

Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mmSize: 2x1x1m/3x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 9

1x1x1m PVC Coated Gabion Basket

Wire diameter:2.7/3.7mmedge Wire:3.4/4.4mm
Tie wire:2.2/3.2mmSize: 3x1x1m/4x1x1m
Mesh size:80x100mm/100x120mm
Zinc coating:40-60g/㎡
High zinc :250g/㎡
Product Application

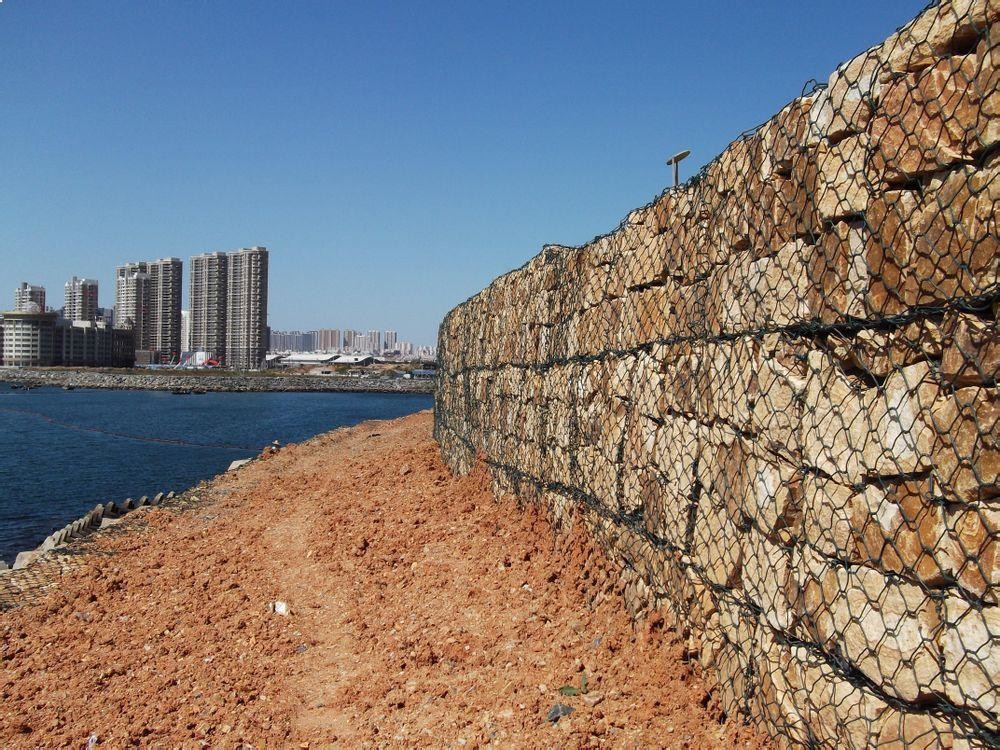

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 10
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 11
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 12
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 13
Gabion Baskets can be used for slope support, foundation pit support, gabion retaining wall.
Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 14
Company Profle

Hebei Bending Fence Technology Co.,Ltd was founded in 1992 as a manufacturer of wide variety metal fences. We engaged in the production, research, development, sales, and services of metal fences, gates, and barriers.

BD FENCE spent more than 3 decades of experience providing fencing solutions, we gain enough knowledge on how to produce top-quality fencing which led us to become a trusted supplier & exporter globally.

As one of the manufacturing pioneers in metal fencing solutions. We also accept customizing metal fences with excellent quality. With professional experience in the metal fence business, our skilled staff members are able to provide the highest level of support, including drafting and engineering of our products. In order to meet our clients’ project requirements.

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 15

What clients said about BD Fence.

Zinc Coating Gabion Mesh Fence 200mm Galvanized For Retaining Walls Systems 16

Our Service

1. Our products offer 10 YEARS GUARANTEE.
2. Product customization services
We can customize products according to your requirements, including design and drawing.
3. After-sales service
Our after-sales service start immediately after signing the contract.
3.1. No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
3.2. The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.3. Do our best to help customer arrange the shipment and customs clearance.
3.4. Full information for installation, maintenance and repair instructions .



FAQ

1.Are you a factory?

Answer:yes,we are a factory that manufactured fence for 32 years.

2.Can you send the cargo to seaport? Where is your nearest sea port?

Answer:yes, sure ,our nearest seaport is Xingang Port.

3.How about the height fence?

Answer:The height is about 2m, but we accept all customized size,you can let us know the height and the length, then we can make design and calculate the prices.

4.Can I have more details of the fence, such as real picture and the accessories?

Answer: yes, sure, please contact us,we will send you drawing and the details parts pictures.

5.Can you make the color according to our request?

Answer: yes,we can ,the common color is Green,Yellow,White,Gray. More Questions If you have more question, please contact us for best service Contact Now

6.How long does it take to produce?

3 to 4 weeks is the delivery time range depending on the model and quantity of the fence.

7.Do I need to hire a professional installer for my metal fence?

All of our metal fences are very easy to install. Aside from its easy installation, we also provide an installation guide. That’s why you can even install it by yourself.
