| Place of Origin: | China |
| Brand Name: | HGMT |
| Certification: | ISO9001:2008 |
| Model Number: | GF138 |
Livestock Fence Panels Instruction

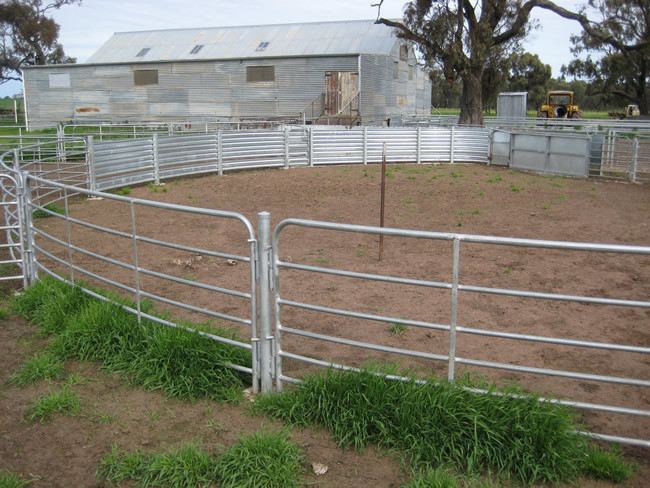

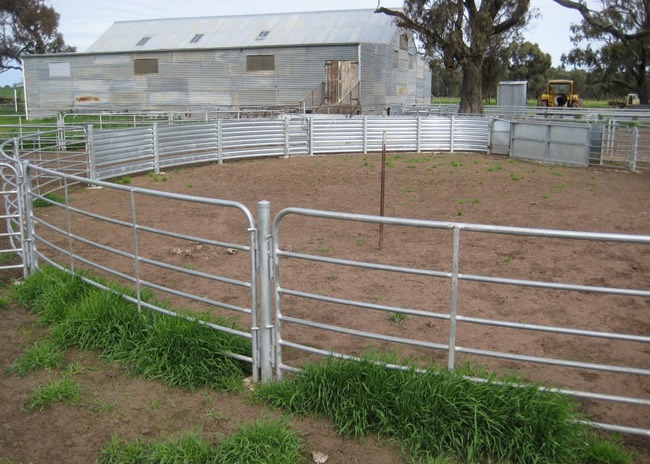

attle panel are also known as stockyard, cattle yard, cattle panel, house fence, sheep fence, livestock fencing. Cattle fence is made of square, oval or round tube, it is mainly used as portable or permanent fencing. The fence panels are offered in a variety of heights, lengths, and number of rails.The fence panels are appealing, safe, easy to install.
| Type | Light-duty | Medium -duty | Heavy-duty | |||
|
Rail Number (Height) |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
5 Rails 1600mm 6 Rails 1700mm 6 Rails 1800mm |
|||
| Post size |
40x40mm RHS |
40x40mm RHS |
50x50mm RHS |
50x50mm RHS |
89mm OD | 60x60mm RHS |
| Rail size | 40x40mm | 60x30mm | 50x50mm | 80x40mm | 97x42mm | 115x42mm |
| Length | 2.1m 2.2m 2.5m 3.2m 4.0m ect. | |||||
| Surface treatment | 1.Fully hot dipped galvanized 2.Pre-galvanized pipe then anti-rust spraying. | |||||
| Kits |

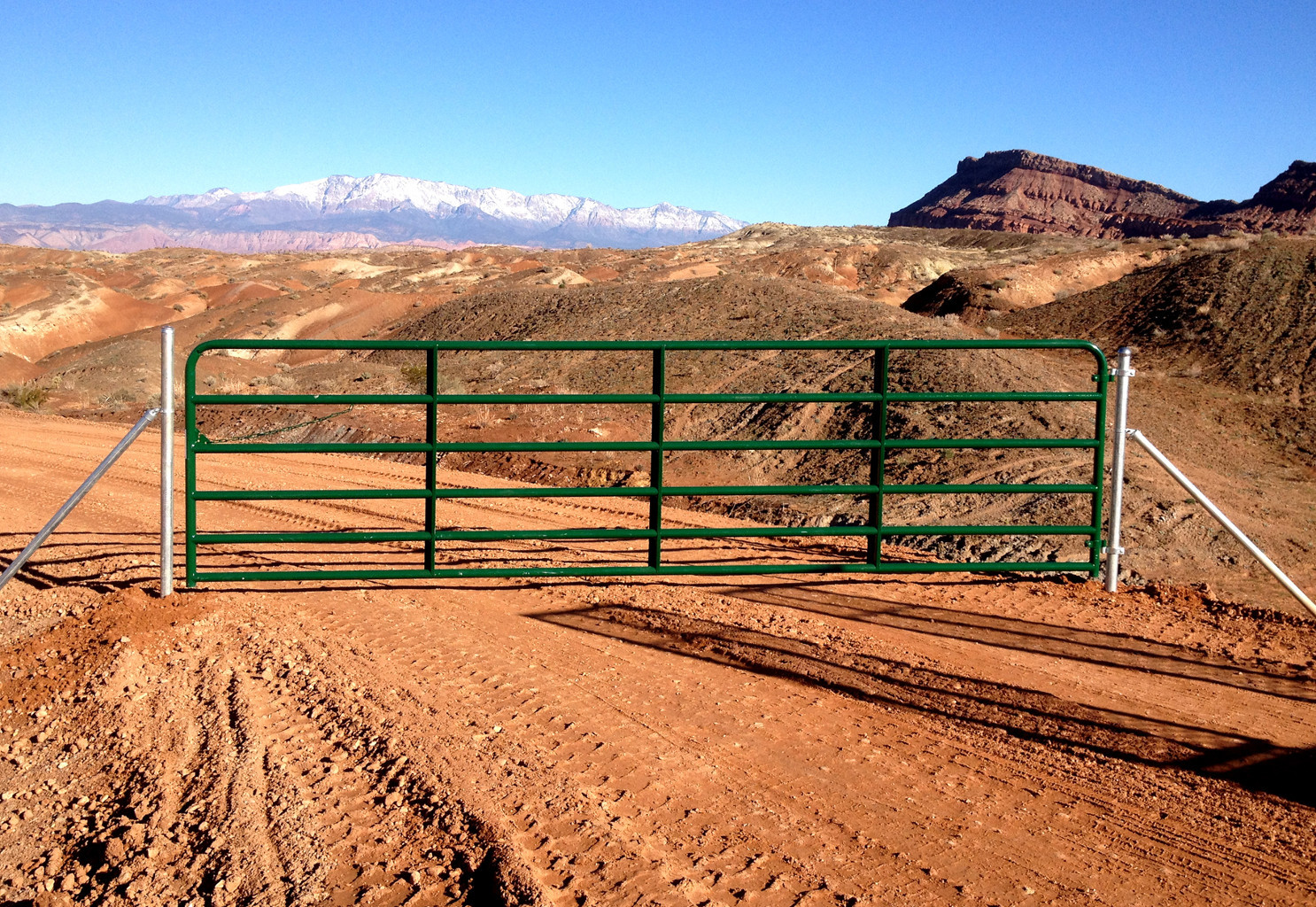

1. 2 lugs and pins 2. cattle panel gate (cattle gate in frame ,double gate ,man gate ,side gate ) |
|||||
We have a full range of sheep panels & gates to suit any operation. Our sheep panel range includes permanent, semi-permanent and portable panels. All our panels come with caps on top and with joining pins/bolts. We can supply you with a complete sheep yard, contact us for panels to suit your operation.

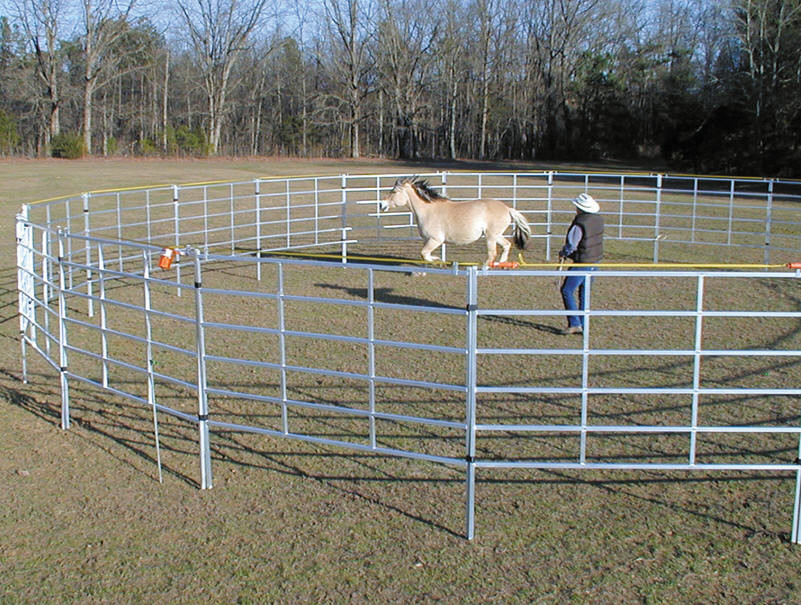

| Round tube cattle panel | |
| Height*Length | 1m*2.1m,1m*2.9m,1.8m*2.1m |
| Horizontal rails | 32mmOD,42mmOD, (6 round rail) |
| Vertical pipe | 32mmOD,42mmOD |
| Thickness | 1.6mm, 2.0mm |
| Material | pre hot dipped galvanized steel pipe |
| Accessories |
4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel
|

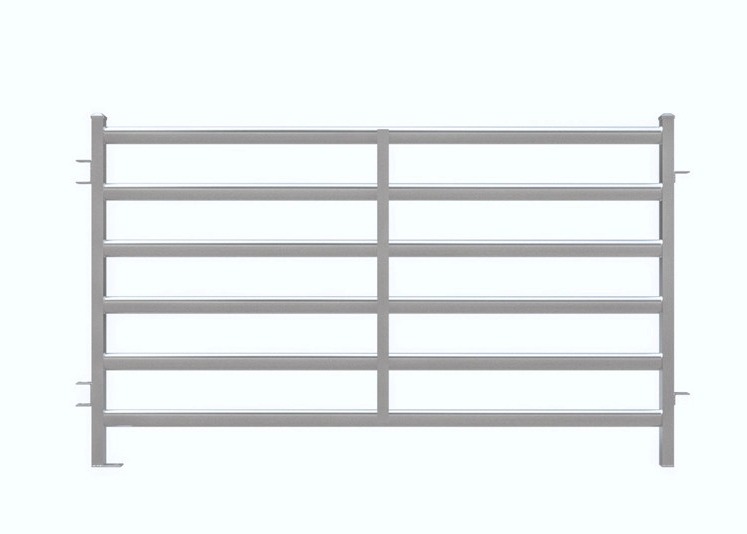

| Square tube cattle panel | |
| Height*Length | 1m*2.1m,1m*2.9m,1.8m*2.1m |
| horizontal rails | 40*40mm,50*50mm (6 square rail) |
| vertical pipe | 40*40mm,50*50mm |
| Thickness | 1.6mm, 2.0mm |
| material | pre hot dipped galvanized steel pipe |
| Accessories | 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel |
| Oval rail with square post style | |
| Height | 1.6m, 1.8m, etc. |
| Width | 2.07m, 2.09m, 2.9m, etc. |
| Horizontal oval rail | 30x60mm, 40x80mm, 42x115mm;4pcs, 5pcs or 6pcs |
| Vertical square tube | 40x40mm, 50x50mm, 75x75mm, etc.2pcs |
| Welded parts | U lugs, L lugs, caps, panel base |
| Accessories | pins |
| Material | hot dipped galvanized steel |
