| Place of Origin: | China |
| Brand Name: | HGMT |
| Certification: | ISO9001:2008 |
| Model Number: | GF138 |
Livestock Fence Panels Instruction

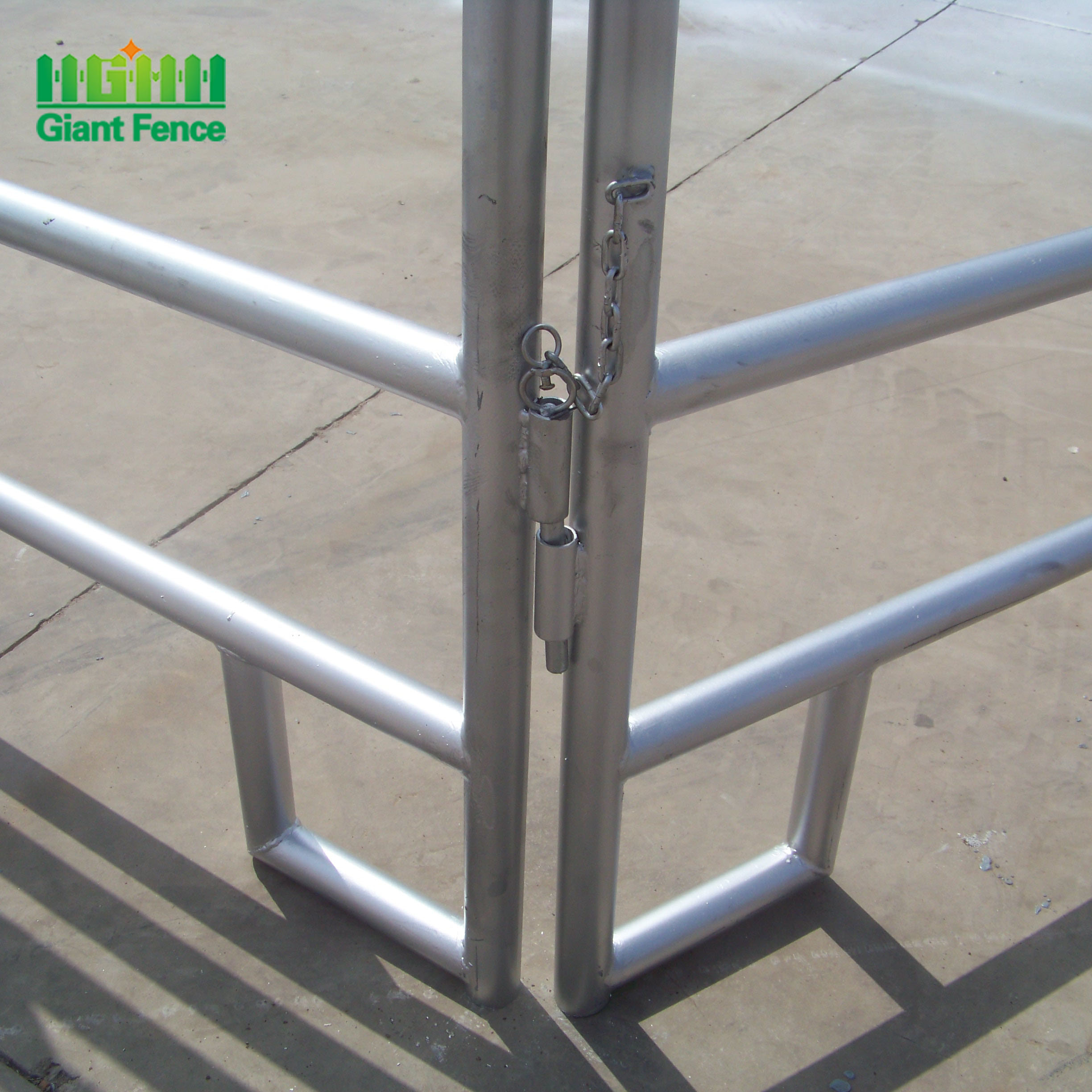

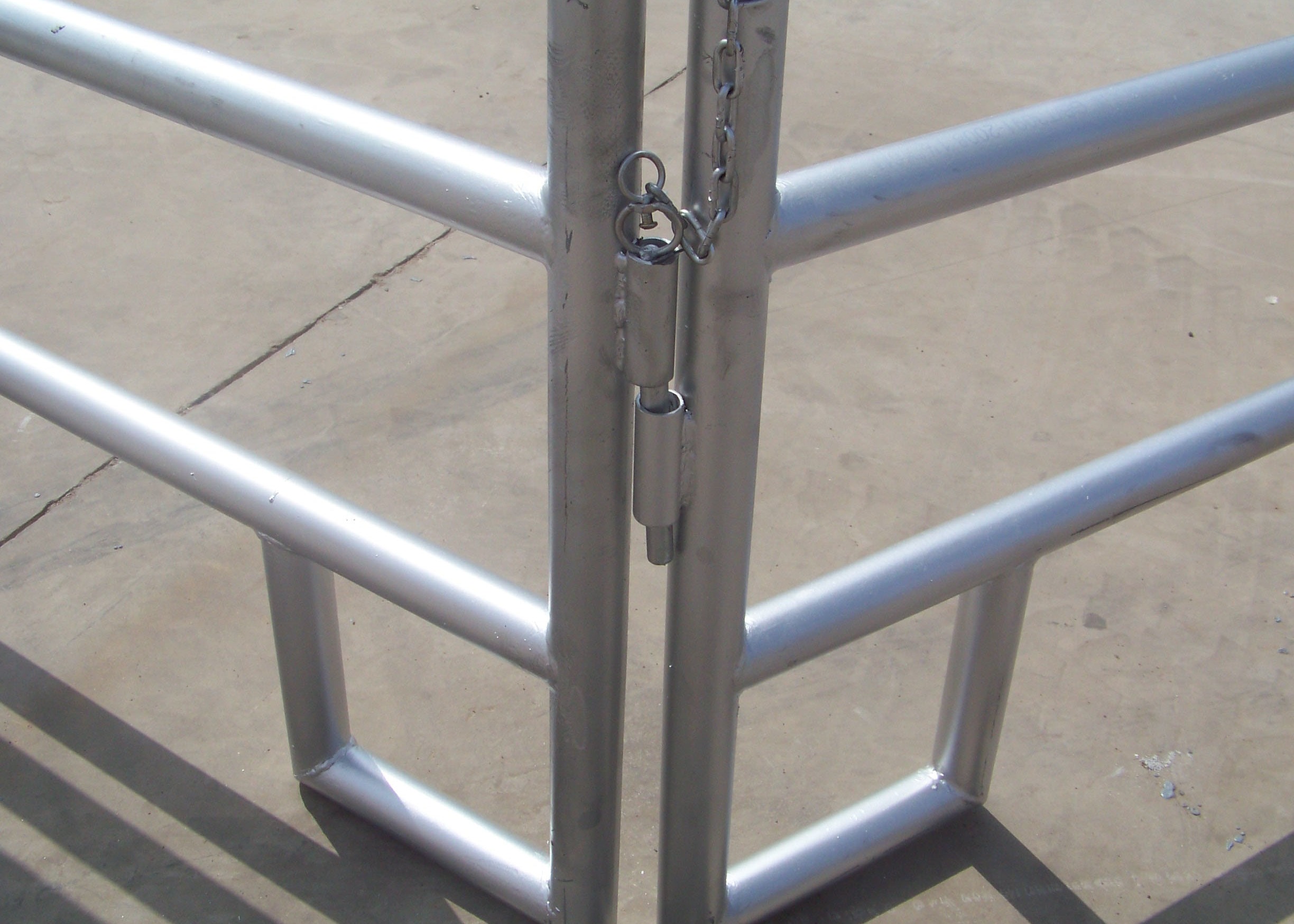

These bulk galvanized livestock panels are easily and quickly assembled into sheep pens with their drop pin design. They are ideal for lambing pens and also attaching an adoption gate too. These hurdles are available in a wide range of sizes to cater for all needs. Our range of drop-pin hurdles are fully hot dipped galvanised after manufacture to give maximum life expectancy. Each hurdle includes a pin for simple connection.
Dimensions: 3' 4' 5' 6' 8' and so on.
Livestock Fence Panels Specifications
| Standard specification | Normal size |
| Height x Length | 2.9mX1.05m,2.1mX1.26m,2.2mX1.26m and so on |
| Pole style | Round pipe or square tube or oval tube |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
Livestock Fence Panels Processing
Manufacturing process of cattle panels cheap galvanized temporary mobile fence panel manufactuer
Material ,Cutting The Pipe,Welding The Pipe,Make The Weld Spots Clean,Anti Rust Paint The Welding Sports,After The Silver Paint Drying, The Panels Packed On Steel Pallet,Panels Loaded In Container

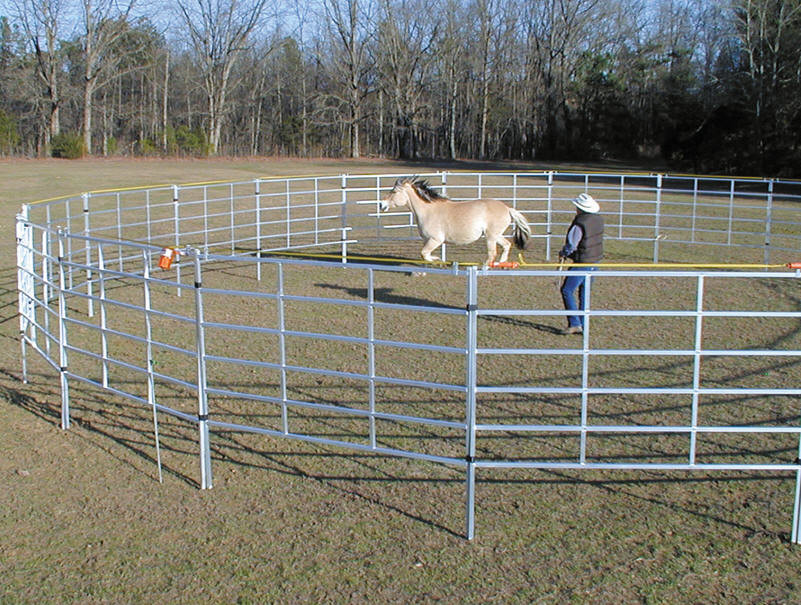

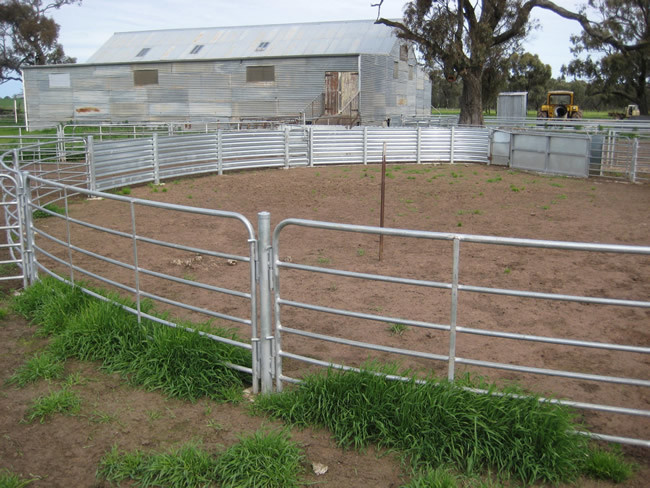

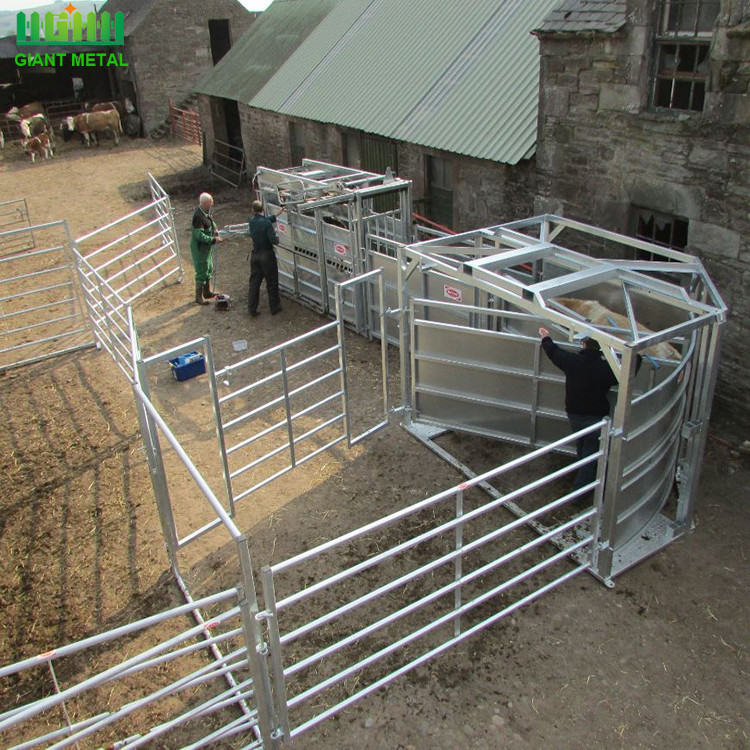

We have a full range of sheep panels & gates to suit any operation. Our sheep panel range includes permanent, semi-permanent and portable panels. All our panels come with caps on top and with joining pins/bolts. We can supply you with a complete sheep yard, contact us for panels to suit your operation.
| 1. Round tube style | |
| Height | 1m,1.2m,1.5m,1.8m,2.1m |
| Length | 1.8m,2.1m,2.4m,2.9m,3m,3.6m |
| Horizontal rails | 32mmOD,42mmOD, 48mmOD(5-6 round rail) |
| Vertical pipe | 32mmOD,42mmOD,48mmOD |
| Thickness | 1.6mm, 1.8mm,2.0mm |
| Material | pre hot dipped galvanized steel pipe |
| Accessories | 4 lugs, 2 rain caps are welded on panel2 pins are included in 1 panel |
| 2. Square tube style | |
| Height | 1m,1.2m,1.5m,1.8m,2.1m |
| Length | 1.8m,2.1m,2.4m,2.9m,3m,3.6m |
| horizontal rails | 40*40mm,50*50mm (5-6 square rail) |
| Thickness | 1.6mm,1.8mm,2.0mm |
| Material | 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel |

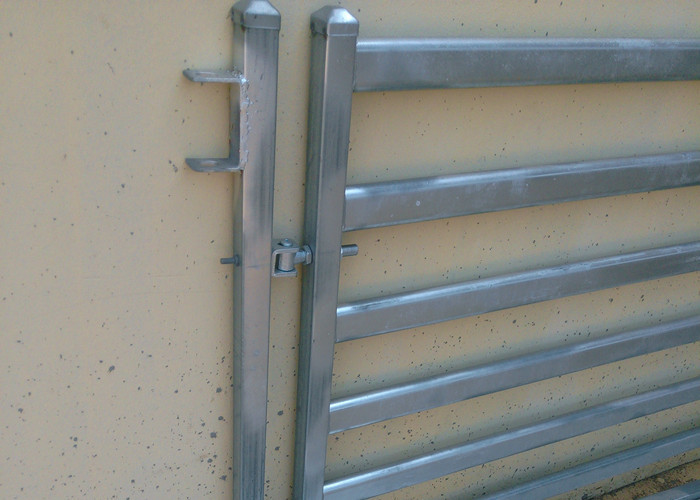

| 3. Oval rail with square post style | |
| Height | 1m,1.2m,1.5m,1.8m,2.1m |
| Length | 1.8m,2.1m,2.4m,2.9m,3m,3.6m |
| horizontal rails | 30x60mm, 40x80mm, 42x115mm, (5-6 oval rail) |
| vertical pipe | 40*40mm,50*50mm |
| Thickness | 1.6mm, 1.8mm,2.0mm |
| material | pre hot dipped galvanized steel pipe |
| Accessories | 2 U lugs, 2 L lugs, 2 rain caps and 2 bases are welded on panel2 pins are included in 1 panel |
| Note: we can custom made according to your request | |
