1.Various Livestock Panels We can Supply

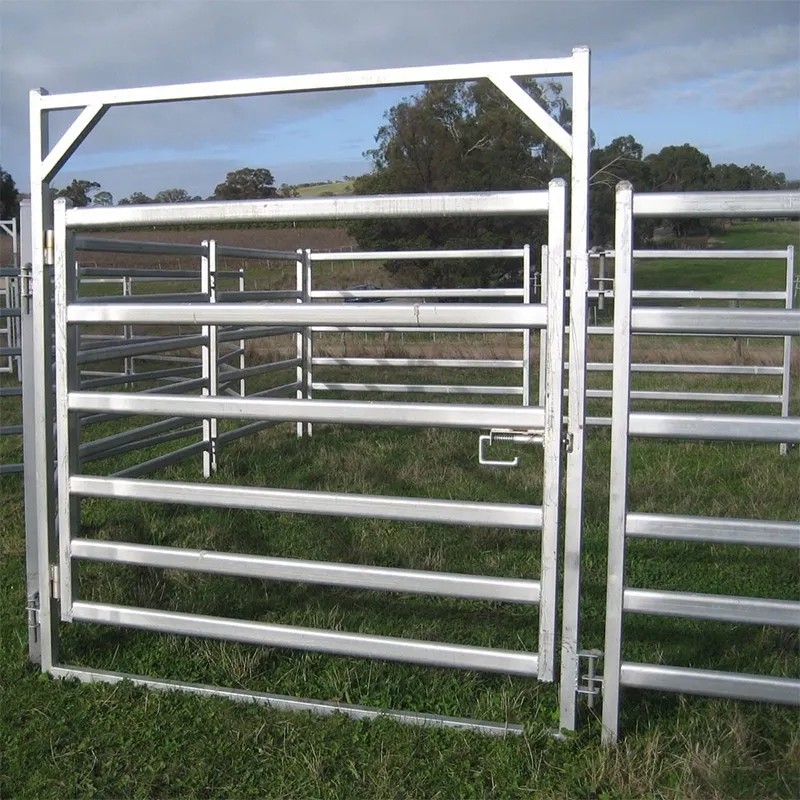

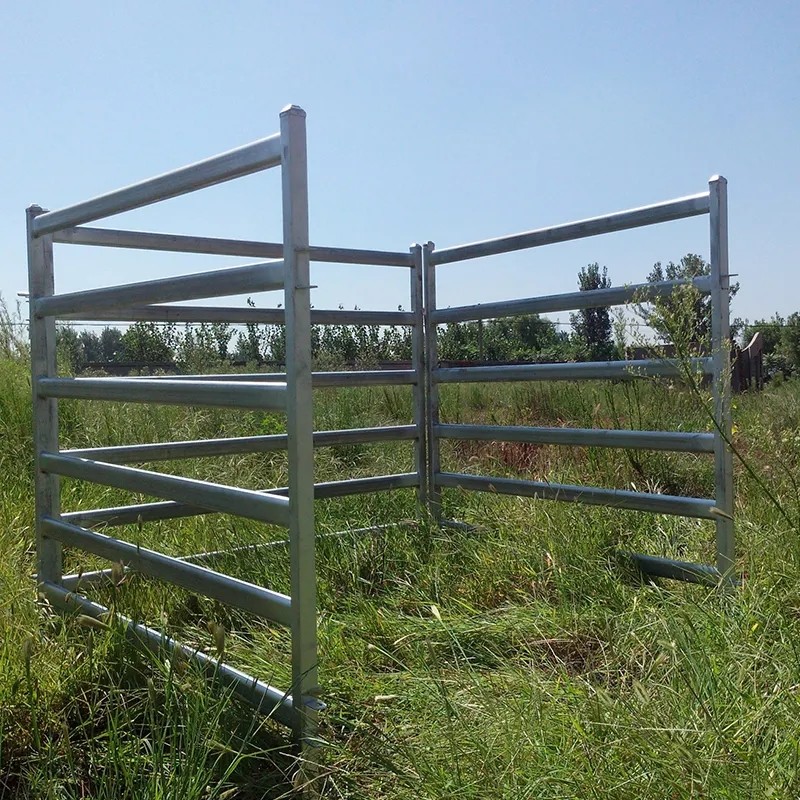

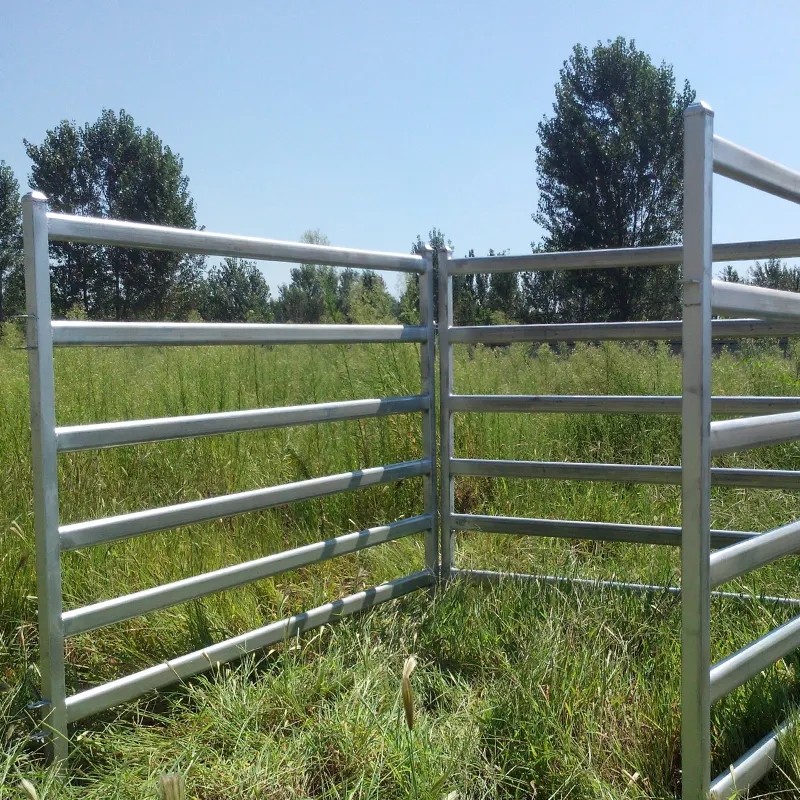

⇒Cattle panel can be used as a portable or permanent fencing solution for livestock.
The Panels are perfect for uneven or steep terrain and the measure 2.1m x 1.8m high and are made out of heavy duty hot dipped galvanised pipe to the Australia standard.

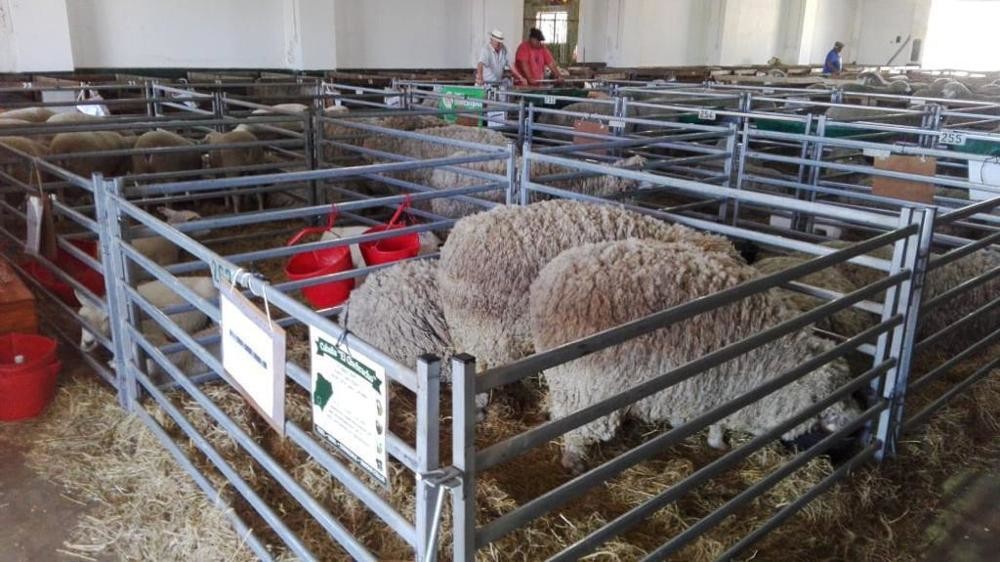

⇒Livestock panels, also named cattle fence, cattle fence panel, livestock fencing, field fence, corral panel, horse panel, steek fence, farm gate, livestock farm fence,cattle round yard, etc. As the name suggests, it mostly used to kept livestocks in the corral.
2.Specification
Type One: Oval Tube Style Cattle Panel Fence(Can be Customized)
| Panel height | Panel width | Horizontal Oval Rails | Vertical Square Frame |
| 1.8m | 2.07m/2.09m | 30x60,40x80,42x115mm | 40x40,50x50 |

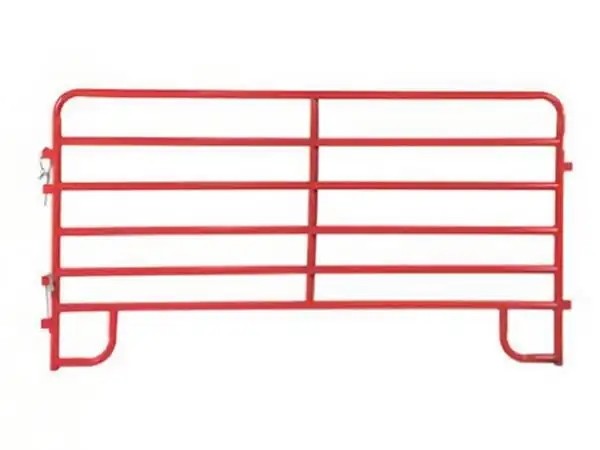

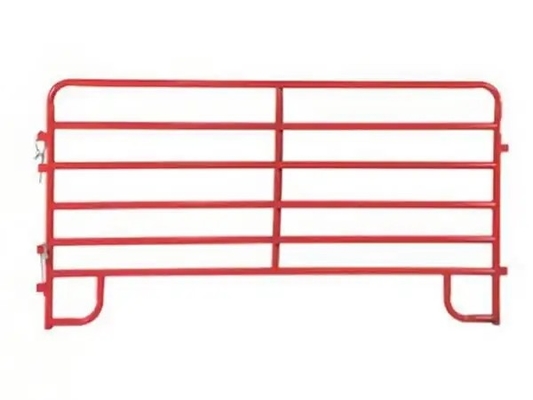

Style1 : Round style livestock panels
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails |
32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thck (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |
Australia cattle farm equipment / cattle panels
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6 mm thicknss |
| Horizontal rails |
30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds |
bull bars are fully welded, each weld is protected with epoxy paint |
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds |
bull bars are fully welded, each weld is protected with epoxy paint |
