permanent fencing. The fence panels are offered in a variety of heights, lengths, and number
of rails .the fence panels are appealing, safe, easy to install and extremely long lasting, good
for permanent feedlot dividers ,pens, horse round pens and arenas, portable horse stalls,
perimeter/line fencing and a variety of other uses.
| Standard specification | Normal size |
| Height x Length | 2.9mX1.05m,2.1mX1.26m,2.2mX1.26m and so on |
| Pole style | Round pipe or square tube or oval tube |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
| Standard specification | Normal size |
| Height x Length | 2.9mX1.05m,2.1mX1.26m,2.2mX1.26m and so on |
| Pole style | Round pipe or square tube or oval tube |
| Pole specification | 32mmO. D, 42mmO. D, RHS40mm, RHS50mm and so on |
| Package details | In steel pallet or in bulk |
| Material | galvanized pipe |
| Size (H*L) | 1.8*2.1m;1.8*2.07m |
| horizontal pipe | three types( round,square,oval) 1) round pipe:32*1.6mm;42*1.6mm 2) square pipe:40*40*1.6mm;50*50*1.6mm 3) oval pipe:30*60*1.6mm;40*80*1.6mm |
| structural style | one set=one net+two pins |
| bars/rails | 1.8m high with 6 bars/rails or 1.6m high with 5 bars/rails |
| applications | Used in protecting of animals |
| main markets | Australia,New Zealand,Canada,US,European countries and Asia countries |

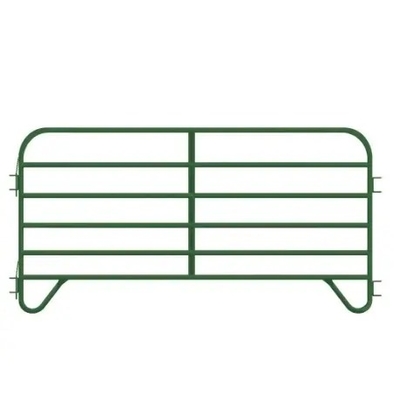

Style1 : Round style livestock panels
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
32mm O.D x1.6mm thickness 42mm O.D x 1.6 mm thickness |
| horizontal rails |
32mm O.D x1.6mm thickness 42mm O.D X 1.6mm thck (6 round rails) |
| Welding | Fully welded post brackets |
| welds | bull bars are fully welded, each weld is protected with epoxy paint |

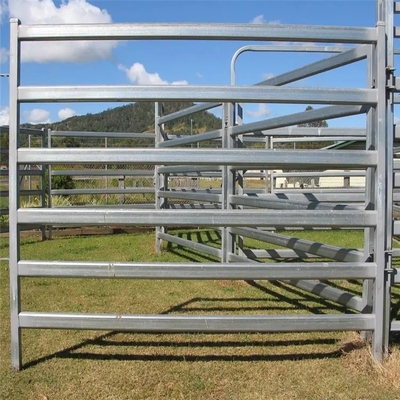

Australia cattle farm equipment / cattle panels
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | more than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| Vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6 mm thicknss |
| Horizontal rails |
30x60mm oval rail x 1.6mm thickness 40x80mm oval rail x 1.6mm thickness 40x120mm oval rail x 1.6mm thickness (6 oval rails) |
| Welding | Fully welded post brackets |
| welds |
bull bars are fully welded, each weld is protected with epoxy paint |
| material | pre hot dipped galvanized steel pipe |
| finishing(zinc coating) | mor than 15 microns |
| HeightxLength | 1800mm x 2100mm |
| vertical pipe |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness |
| horizontal rails |
50 x 50mm RHS x 1.6mm thickness 40 x 40mm RHS x 1.6mm thickness (6 square rails) |
| Welding | Fully welded post brackets |
| welds |
bull bars are fully welded, each weld is protected with epoxy paint |
