| Place of Origin: | CHINA |
| Brand Name: | HGMT |
| Certification: | ISO9001:2008 |
| Model Number: | GF026 |

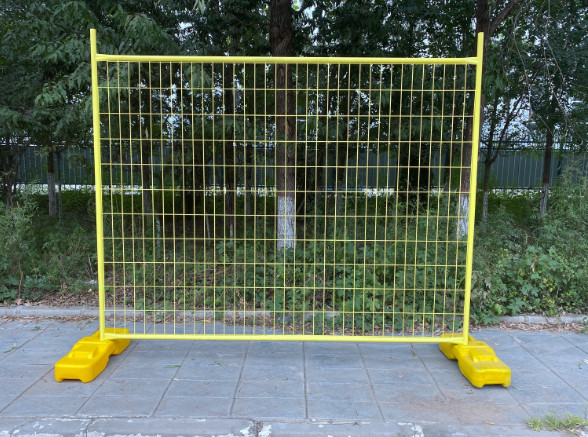

4mm Wire 7ft Height Pvc Coated Australia Temporary Fence With Plastic Feet For Construction
Temporary fence gate as a pedestrian gate for walkers, and double gate for cars and trucks. Link with the fence panels with clamps, to make it a whole system.The panels are held together with clamps that interlock panels together making it portable and flexible for a wide range of applications.
Fence panels are supported with counter-weighted feet, have a wide variety of accessories including gates, handrails, feet and bracing depending on the application. Fence panels are commonly constructed of either chain link or weld mesh.
The temporary fence gate as a pedestrian gate for walkers, and double gate for cars and trucks. Link with the fence panels with clamps, to make it a whole system.
Specifications
| Horizontal wire diameter | Vertical wire diameter | Welded mesh hole size | Chain link mesh hole size | Panel length | Panel height | Frame tube |
| 3mm | 3mm |
60*60mm 50*100mm 65*150mm 75*150mm 100*200mm |
50*50mm 60*60mm 75*75mm 100*100mm |
2.2m 2.3m 2.4m |
1.8m 2.1m |
32*1.4mm 32*1.8mm 32*2.0mm 48*1.8mm 48*2.0mm |
| 4mm | 3mm | |||||
|
4mm |
4mm |
|||||
|
Surface treatment 1.Hot dipped galvanized wire and tube welded 2.PVC coated after galvanized wire and tube welded |
||||||
Packing
1.steel pallet
2.wooden pallet
3.put in bulk into container
