3D Fence Panel/3D Curved Fence/3D Curved Fence Suppliers/China 3D Curved Wire Mesh Fencing

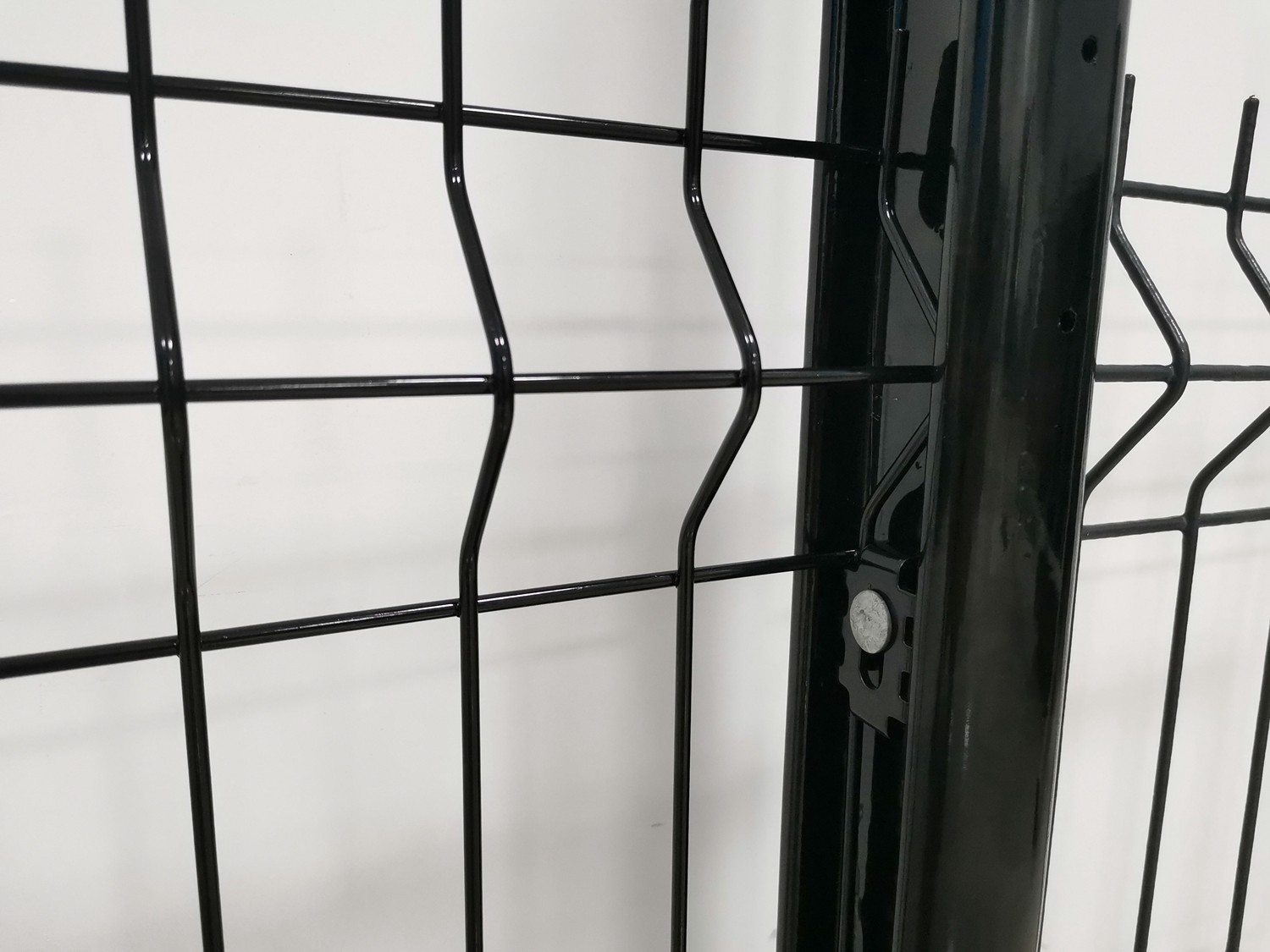

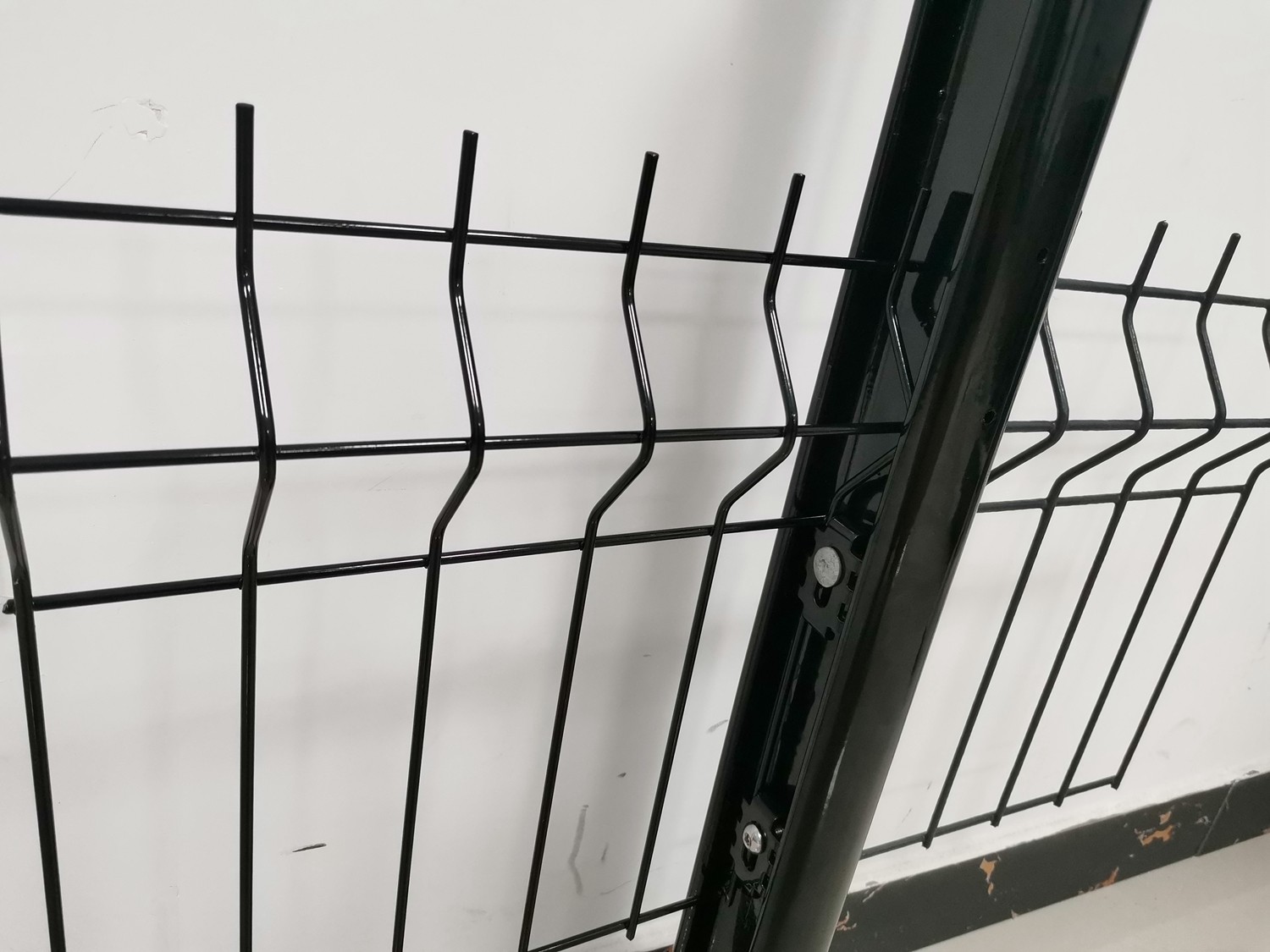

The 3D welded wire mesh fence including Mesh Panle, Post, Fittings for installation, and Alternative Top Security parts.
Appropriate bending of wire mesh fence, creates the unique aesthetic effect of this product, and the surface is treated with a variety of colors, such as yellow, green, and red. The combination of different colors of the column and the mesh is even more pleasing. Most of these products use a column with a flanged plate, and the installation only needs to be installed with expansion bolts, which is very fast.
Applications: Railway closed nets, living area fences, field fences, development zone isolation nets, etc.
Excellent performance: The product uses high-quality raw materials, and has undergone special surface treatment, which has extremely high corrosion resistance. The finished product enjoys a ten-year quality guarantee
Easy installation: No special accessories are required for product installation, and it adopts push-type installation, which is easy to hold and hold, simple and fast, and reduces costs
Surface treatment: 1. galvanized steel wire + powder coating; 2.Hot dip galvanized after welding; 3. PVC coating
4. Fence Specifications:
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
Packing terms
