High Quality Galvanized Metal PVC Coated 3D V Bending Welded Curvy Wire Mesh Panel Fence For Garden Farm

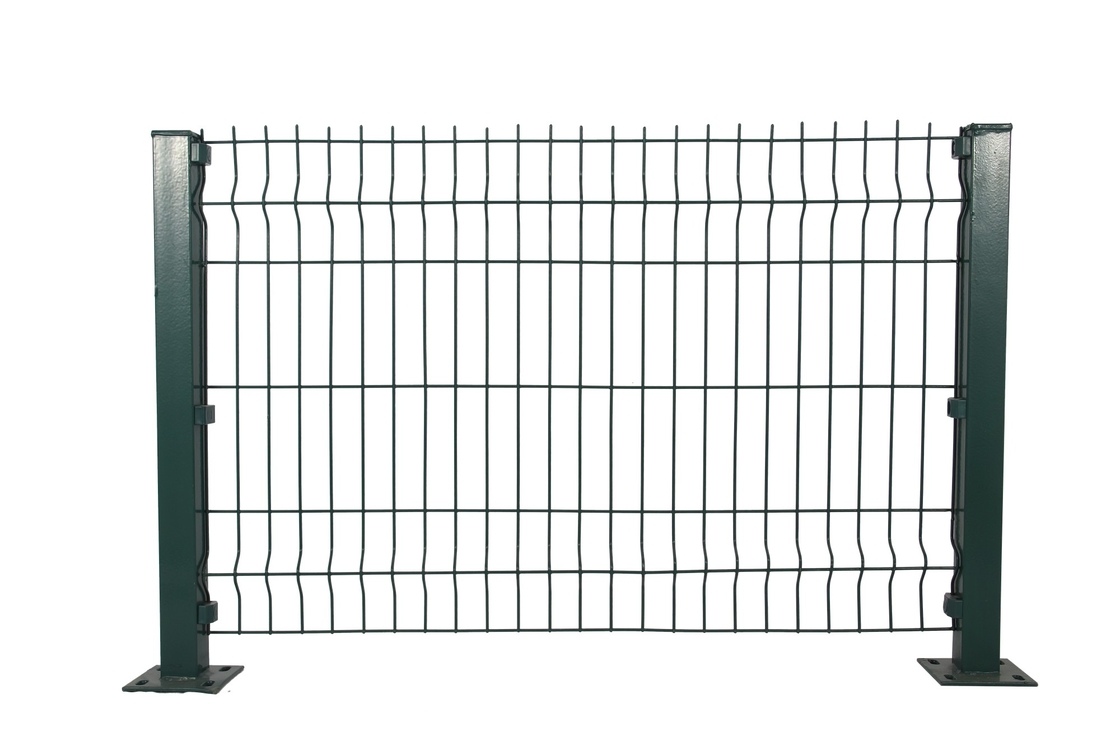

3D curved wire mesh fence welded metal fence panel
The 3D welded wire mesh fence including Mesh Panle, Post, Fittings for installation, and Alternative Top Security parts.
Panel
is welded with high quality Pre-Galvanized wire(Q195-Q235), then with Polyester Powder Coated.
or welded with high quality black wire (Q195-Q235), then Hot Dip Glavanized in the Zinc Pool.
There are Several "V" Curves are positioned on the panels to enchance the level of Rigidity.
Producing Standard as per EN10244
Post
is shaped from galvanized coils, with SHS, RHS, CHS, Peach, I Type post sections, then doing the Polyester Powder Coated.
or shaped from raw black coils, then doing the Hot Dip Galvanized Process.
Producing Standard as per EN10346.
Top Alternative:
Extension Arm with barbed wire, Razor Wire, or Electric Wire
Fitting of Bolts Nuts, are stainless steel 304, or Zinc Aluminum Coated
The Finish with Akzo Nobel- Interpon 600 series powder or Hot Dip Galvanized Process, all pass 500H-1000H salty spray followed by ISO9227.
| Wire Dia | Mesh Size | Panel Width | Panel Height | Folds | Post Height | Post Model | |
| burying style | bass style | ||||||
| 3.0mm; 4.0mm; 5.0mm; 6.0mm |
50*100mm; 50*200mm; 50*150mm; 70*150mm |
1-2.5m | 1.03m | 2 | 1.4m | 1.2m | Square; Peach; Round |
| 1.23m | 2 | 1.6m | 1.4m | ||||
| 1.53m | 3 | 2.0m | 1.7m | ||||
| 1.73m | 3 | 2.2m | 1.9m | ||||
| 1.83m | 4 | 2.3m | 2.0m | ||||
| 2.03m | 4 | 2.5m | 2.2m | ||||
| Color | RAL6005,RAL9005,RAL9010,other color can make as your interesting | ||||||
3D Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting-- Powder coating--Loading
Application
3D Fence Panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand. With stable, durable and flexible structure, curvy fence panel is widely used as fence in airport, school, factory, residential area, garden, warehouse, stadium, military venue and entertainment place.
Packing terms
