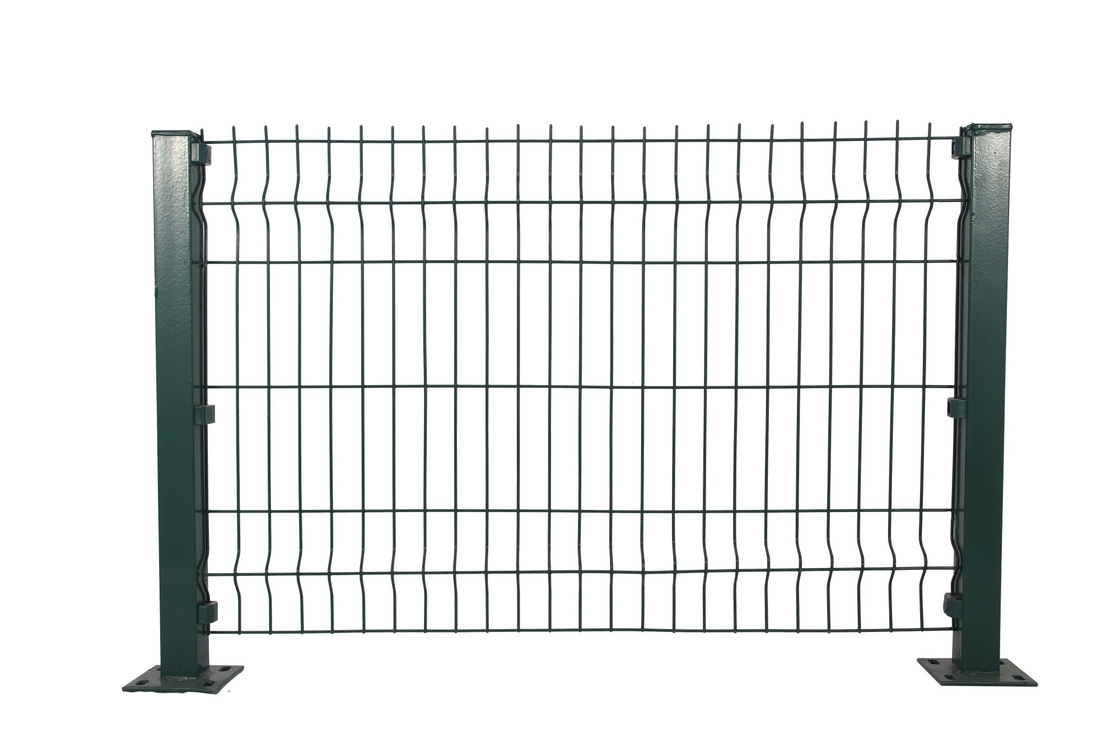

3D curved wire mesh fence welded metal fence panel
The 3D welded wire mesh fence also called 3D curved security welded fence.The Fence Surface treatment can do PVC Coated, the product’s characteristic is grid structure beautiful the field of vision is broad, the color diversity , the intensity is high, the steel is good, the modelling is beautiful.
Wire Mesh Panel Features:
1. Prevent bask in anticorrosion:Hot dip galvanizing and powder coating,Service life 5-10 years.
2. Easy to install: The installation process requires only 2 peoples.
3. Beautiful appearance: the mesh surface is flat, and the perspective is higher. feel bright relaxed.
1. Specification
The fence panels are fully welded and 100% hot dip galvanized offering great strength, protection against corrosion and an increadibly long product life.
HAIAO FENCING is a professional fence customizing factory with experience of more than 20 years. We provide high quality fence
with affordable price, as well as provide trade assurance to ensure that your order be no risk.
| Mesh Size | Wire Diameter | Panel Height | Panel Width | Bending No. | Common Color | Surface Treatment |
|
50*100mm 50*200mm 55*100mm 55*200mm |
4mm 5mm |
830mm |
2m 2.2m |
2 |
Green RAL 6005 |
1.Hot dipped galvanized after black wire welded 2.PVC coated after galvanized wire welded 3.PE coated after galvanized wire welded 4.Powder coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 | |||||
| 2230mm | 4 | |||||
| 2430mm | 4 |
3D Fence process
1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading
2.Post cutting-- Powder coating--Loading
Quality Control Process
Application
3D Fence Panel can be installed on flat areas or slopes, and it can also be applied in a variety of different land types such as general land surface or sand. With stable, durable and flexible structure, curvy fence panel is widely used as fence in airport, school, factory, residential area, garden, warehouse, stadium, military venue and entertainment place.
Packing terms
