| Place of Origin: | Hebei, China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF148-1 |

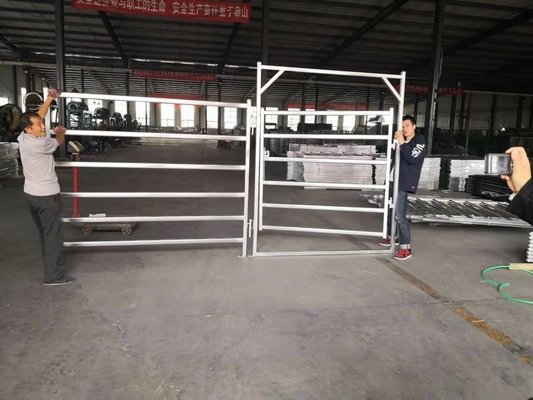

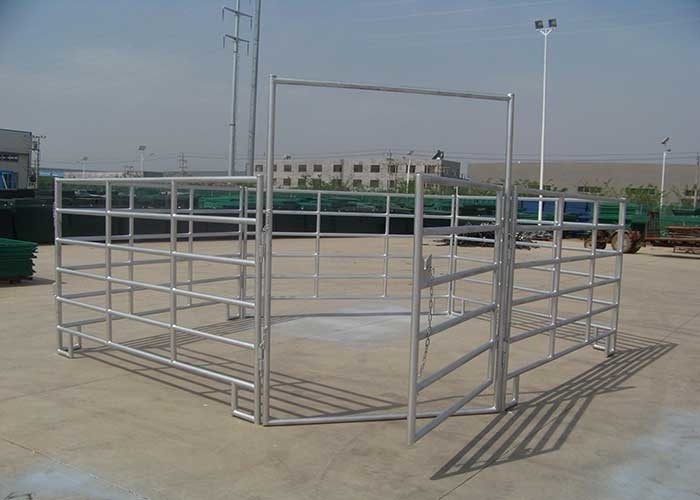

Farm Fence Gate
The farm gate is mainly used for livestock’s protection which has a good effect in garden, roads, farm, meadow and so on.
It’s also available to do as per customers’ design and requirement.
Farm Fence Gate Specification
| Type | Surface treatment | Hole size mm | Wire dia. mm | Brace | Frame pipe mm | Height mm | Width mm |
| Wire flld farm gate | Hot dip galvanized paint | 200*100 200*110 250*100 | 4.0 5.0 6.0 | 1 brace 2 brace N Type I type | 25*2.0 32*1.5 32*2.0 48*2.0 | 900-1800 | 1160 (4ft) 1460 (5ft) 1770 (6ft) 2070 (7ft) 2380 (8ft) 2980(10ft) 3580(12ft) 4180(14ft) 4780(16ft) |
| Pipe flled farm gate | Hot dip galvanized after welded | 5/6/7 horizontalpipe | 32mm OD 42mm OD | ||||
| Chain link mesh farm gate | Galvanized+powder coating | 50*50 75*75 | 2.0 2.5 3.0 |
Application
1. For animals feeds
2. Farm places
3. Cattle
4. Horse
5. Sheep
Feature
The “Fishhooks” on the top of the panel help strengthen the corners and help prevent leg traps between panels.
The surface can do there types :1) hot dip galvanized after welded the zinc coating can reach 400g/m2 2) pre-galvanized wire and tube welded,zinc coating can reach 40-60g/m2
