| Place of Origin: | China |
| Brand Name: | HGMT |
| Certification: | ISO9001:2008 |
| Model Number: | GF123-GF129 |

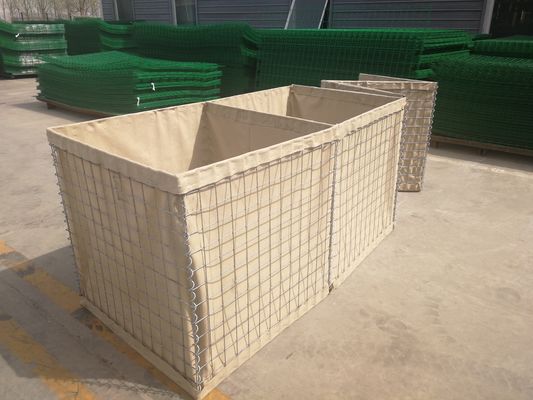

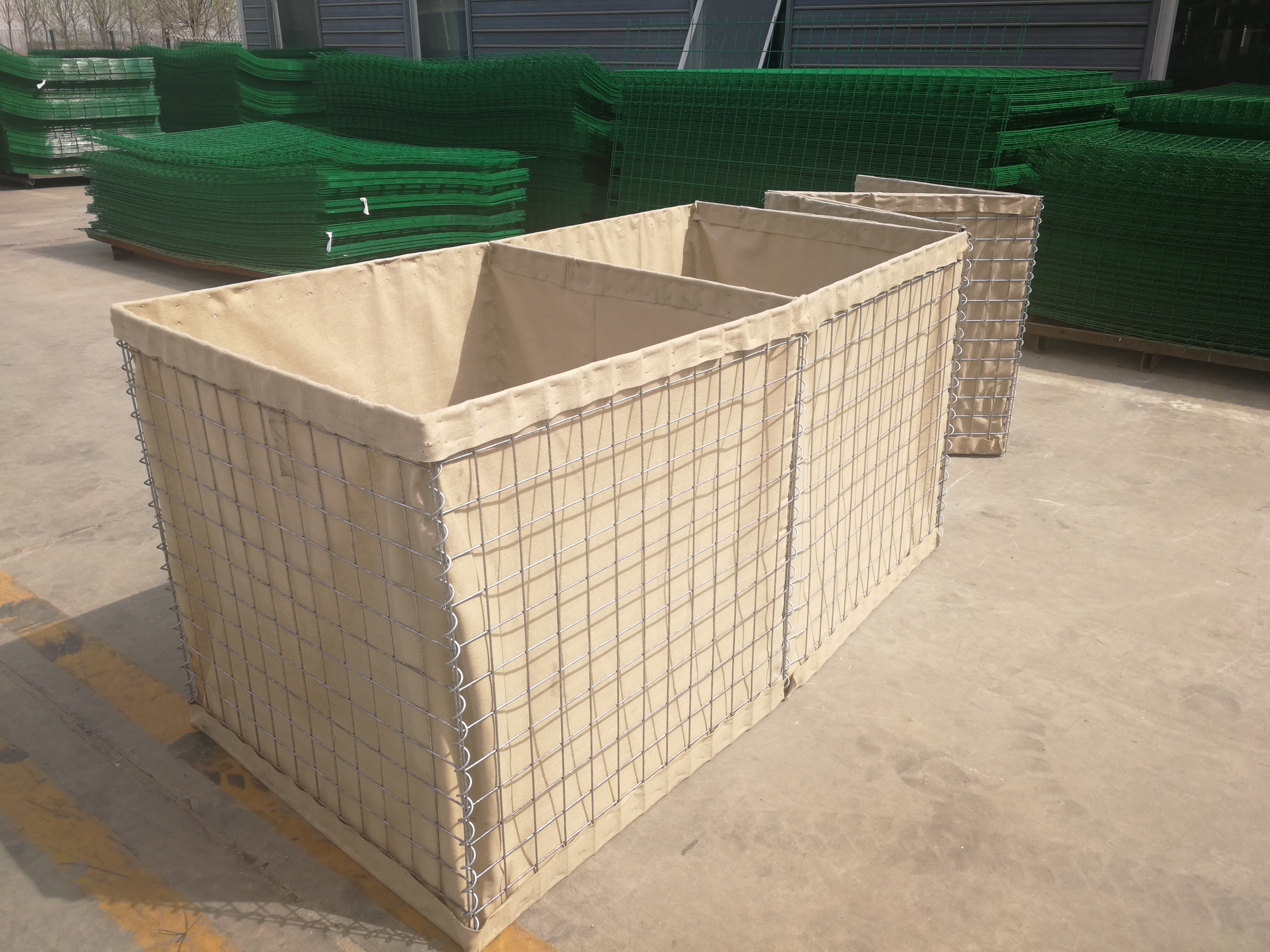

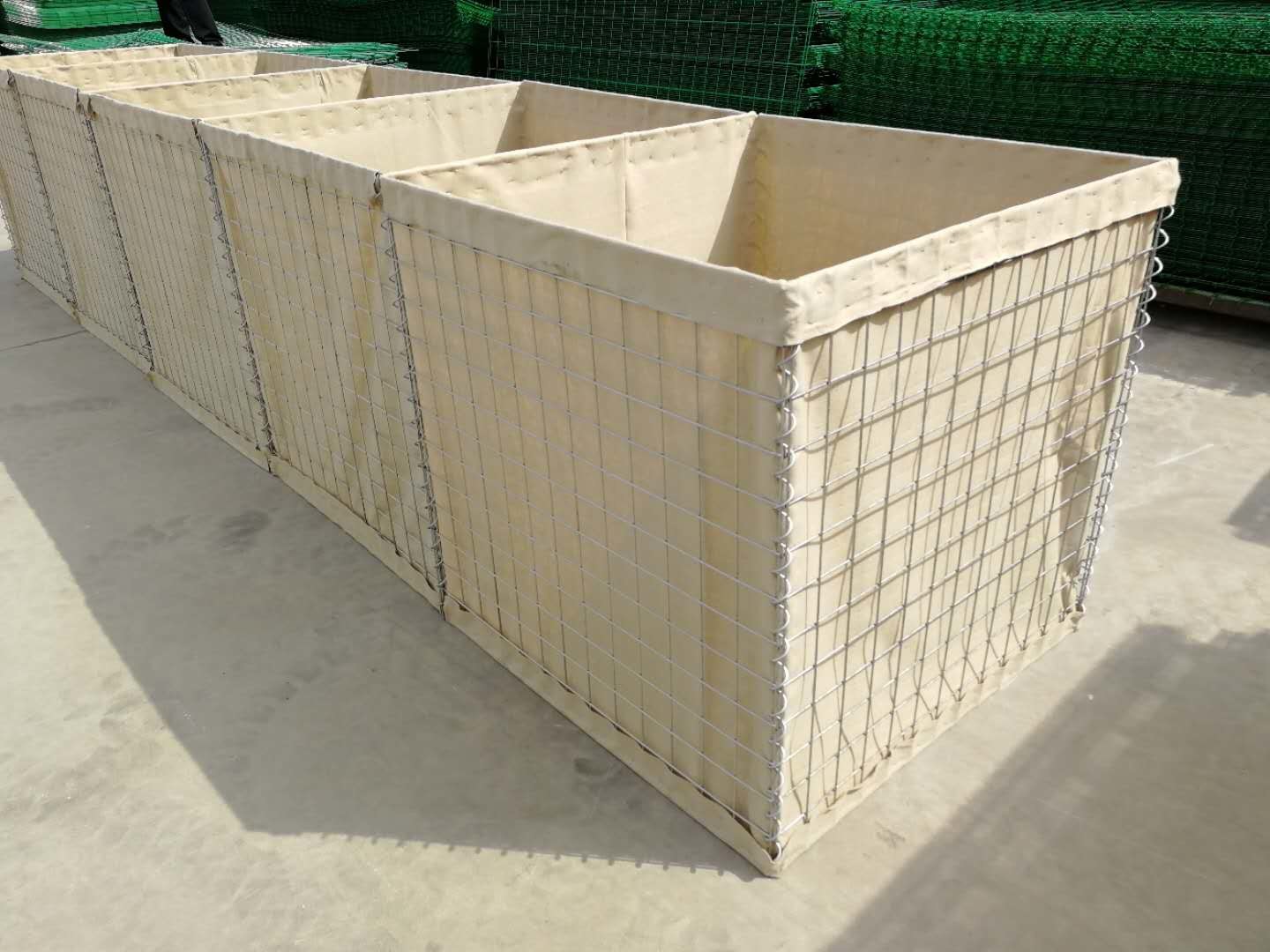

Blast wall is a multi-cellular barrier system manufactured from welded zinc-aluminum coated steel wire mesh and joined with vertical, helical-coil joints.The units are lined with a heavy-duty non-woven polypropylene geotextile. When joined and filled, the system can be used to create bastion of exceptional strength and structural integrity.
Specifications 1:
| Unit | Height | Width |
Length |
|
HB 12B HB 12G |
7’ (2.13m) |
5’ (1.52m) |
95’ (28.94m) |
|
HB 11B HB 11G |
3’3” (1.0m) |
2’6” (0.76m) |
30’ (9.14m) |
|
HB 10B HB 10G |
4’6” (1.37m) |
2’ (0.61) |
32’ (10m) |
|
HB 9B HB 9G |
7’3” (2.21m) |
7’ (2.31m) |
90’ (27.74m) |
|
HB 8B HB 8G |
5’6” (1.68m) |
2’ (0.61m) |
10’ (3.05m) |
|
HB 7B HB 7G |
2’ (0.61m) |
2’ (0.61m) |
10’ (3.05m) |
|
HB 6B HB 6G |
2’ (0.61m) |
5’ (1.52m) |
32’ (10m) |
|
HB 5B HB 5G |
3’3” (1.0m) |
3’3” (1.0m) |
32’ (10m) |
|
HB 4B HB 4G |
2’ (0.61m) |
2’ (0.61m) |
4’ (1.21m) |
|
HB 3B HB 3G |
2’ (0.61m) |
2’ (0.61m) |
10’ (3.05m) |
|
HB 2B HB 2G |
4’6” (1.37m) |
3’6” (1.06m) |
32’ (10m) |
|
HB 1B HB 1G |
7’ (2.13m) |
3’6” (1.06m) |
18’ (5.5m) |
Specifications 2
| Wire diameter | Spring wire | Mesh size |
|
4.0mm 4.5mm 5.0mm |
4.0mm 4.5mm |
76*76mm 50*100mm 100*100mm |
|
Surface treatment:
|
||

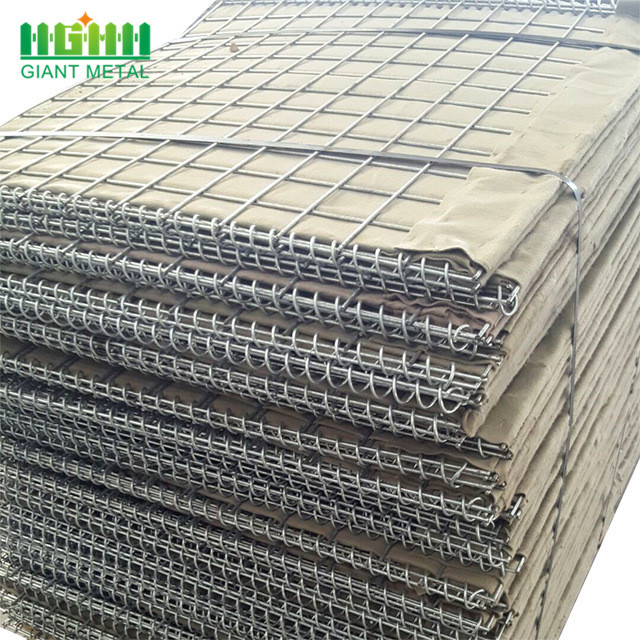

Packing
1. packing in the pallet 2. bulk in the container
