PVC Painting Welded Mesh Construction Edge Protection Barriers
Description:
Edge protection barrier is made of high quality steel,and it can be powder coated in a range of colours, it is mostly used on construction sites to prevent things from falling and causing harm to people.
Powder coated in a range of colors,accept customized with company logos ,there is a baffle on the bottom of the Edge protection barrier to protect small stone falling ,avoid hurting somebody.

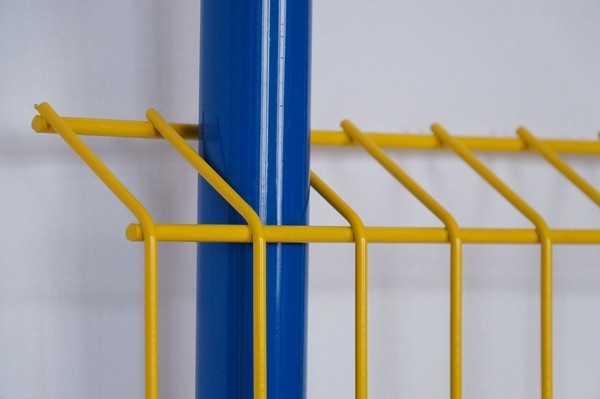

It consists of two horizontal wires sandwiching a vertical wire,make the barrier stronger,it has continous wire, no cut wire, make the barrier smooth, flat and straight.
Advantages of Edge Protection Fence/Barriers:
1. Combines guardrails, toeboard and debris mesh in one product
2. Steel mesh protection with impact-absorbing capacity
3. Closed and returned toeboard for greater debris containment
4. Returned top edge with no sharp edges
5. Reinfored side bars for enhanced durability
Application of Edge Protection Fence/Barriers:
Edge protection fence also named edge protection fence,edge protection is fully used in construction under building to protect people.
Components are robust and are painted or Galvanised finished for a long life and exposure to extreme weather climates. The use of Systemised Temporary Edge Protection Fence makes a significant contribution to the reduction of falls on site due to ease of use, increased safety and compliance to EN 13374.
Edge Protection Barriers Specification
| Wire diameter | 5*4mm, 6*5mm, 8*6mm |
| Opening size | 75*75mm, 50*200mm, 50*100 |
| Panel size | 1100*1700/1100*2400mm/1300*1300mm/1300*2200mm |
| Post diameter/thickness | 48*1.5/2.0mm, 60*2mm |
| Surface treatment | Galvanized+powder coated / galvanized+painted /black +powder coated |
| colour | Blue, Orange, Customized |
| Application | Fall Protection For Rail Infrastructure |
