| Place of Origin: | Hebei, China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF131 |

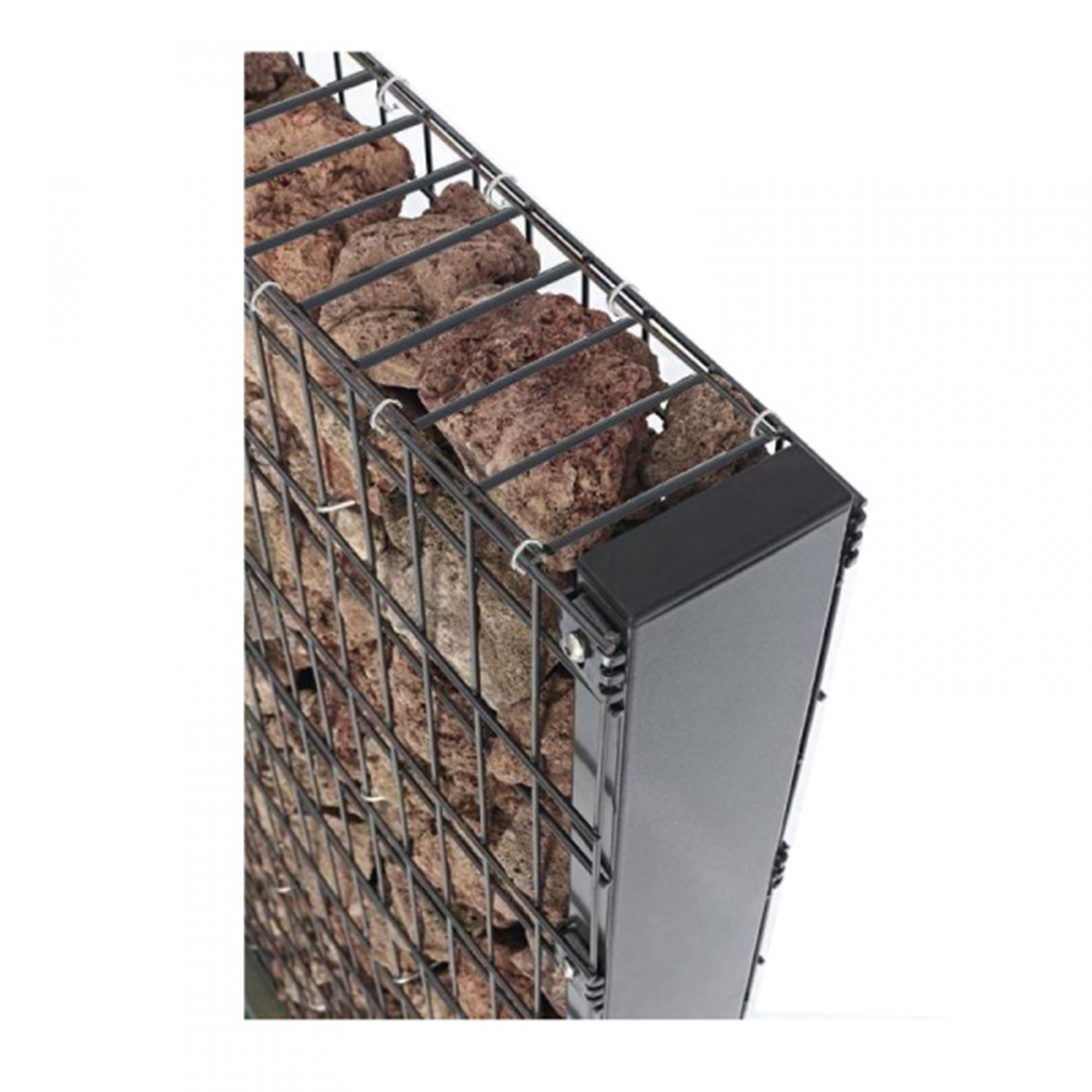

Steel Welded Wire Mesh Galvanized Gabion Fence System

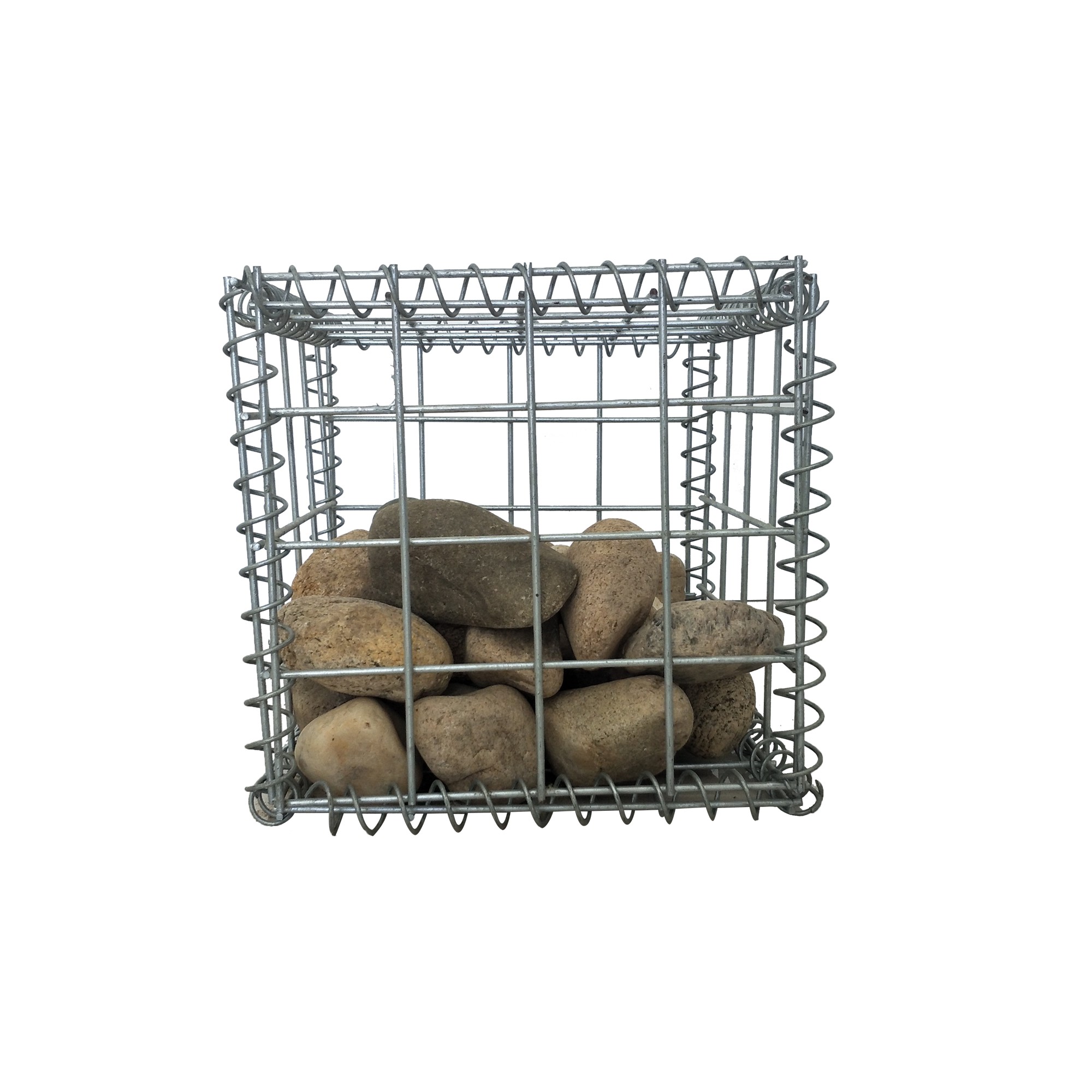

Gabion Mesh Basket Detail
Gabion Fence System is a high - quality steel mesh.They can be filled with hard and durable stone on site to form a mass gravity retaining wall structure.Because they lack flexibility.Welded steel cages cannot be adapted to uneven settlement or used in rivers.Compared with the woven steel wire gabion, the strength of the welded gabion is higher.In order to meet different engineering requirements, welding gabion box can provide different line diameter and unit size.
Gabion Mesh Basket Specification
|
Nominal Box sizes (m) |
Mesh size (mm) |
No. of diaphragms (no.) |
Capacity per box (m3) |
| 1.0x1.0x0.5 |
50x50
75x75
50x100
100x100 |
0 | 0.50 |
| 1.0x1.0x1.0 | 0 | 1.00 | |
| 1.5x1.0x0.5 | 0 | 0.75 | |
| 1.5x1.0x1.0 | 0 | 1.50 | |
| 2.0x1.0x0.5 | 1 | 1.00 | |
| 2.0x1.0x1.0 | 1 | 2.00 | |
| 3.0x1.0x0.5 | 2 | 1.50 | |
| 3.0x1.0x1.0 | 2 | 3.00 | |
| 4.0x1.0x0.5 | 3 | 2.00 | |
| 4.0x1.0x1.0 | 3 | 4.00 |
Features
1. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
2. Strong capacity of Anti-scour
Even reach to 6m/s.
3. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.
Gabion material:
1. Hot dipped galvanized wire
2. Hot dipped galvanized wire+pvc
3. Galfan coating(5%AL+95%ZN)/+pvc coating
4. Super galfan coating()10%AL+90%ZN)/+pvc coating
