Temporary Mesh Walls & Shafts Edge Protection Barriers
Description:
Edge protection fence also named edge protection Barrier,Temporary edge protection,Safety Edge Barrier,edge protection is fully used in construction under building to protect people.

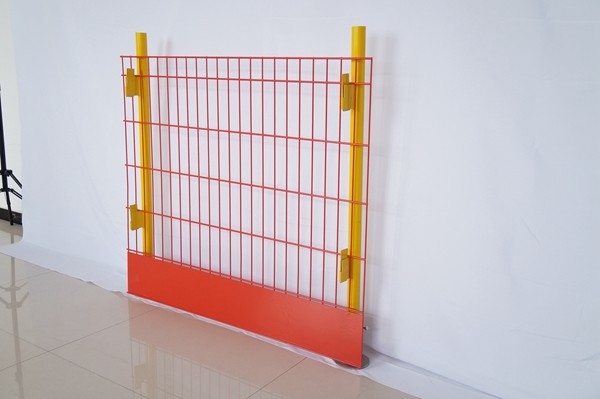

This simple to install system offers site personnel maximum protection on the perimeter of construction slabs, around stair and lift wells, excavations etc. The removable panels, with built-in kickplates, and post system is easily transported, installed removed and stored.
Featuring 90 degree bending top and bottom, incorporating a galvanised kickplate that helps prevent objects falling through the panel bottom.
Features:
Temporary Roof Edge Protection Barriers
Pontoon Mesh Edge Protection System For Floating Platforms
Fall Prevention of Edge Protection Fence
Edge Protection Fence for Walls & Shafts
Edge Protection Barriers Specification
| Wire diameter | 5*4mm, 6*5mm, 8*6mm |
| Opening size | 75*75mm, 50*200mm, 50*100 |
| Panel size | 1100*1700/1100*2400mm/1300*1300mm/1300*2200mm |
| Post diameter/thickness | 48*1.5/2.0mm, 60*2mm |
| Surface treatment | Galvanized+powder coated / galvanized+painted /black +powder coated |
| colour | Blue, Orange, Customized |
| Application | Fall Protection For Rail Infrastructure |
