| Place of Origin: | CHINA |
| Brand Name: | HGMT |
| Certification: | ISO9001:2008 |
| Model Number: | GF130-1 |
Product Description

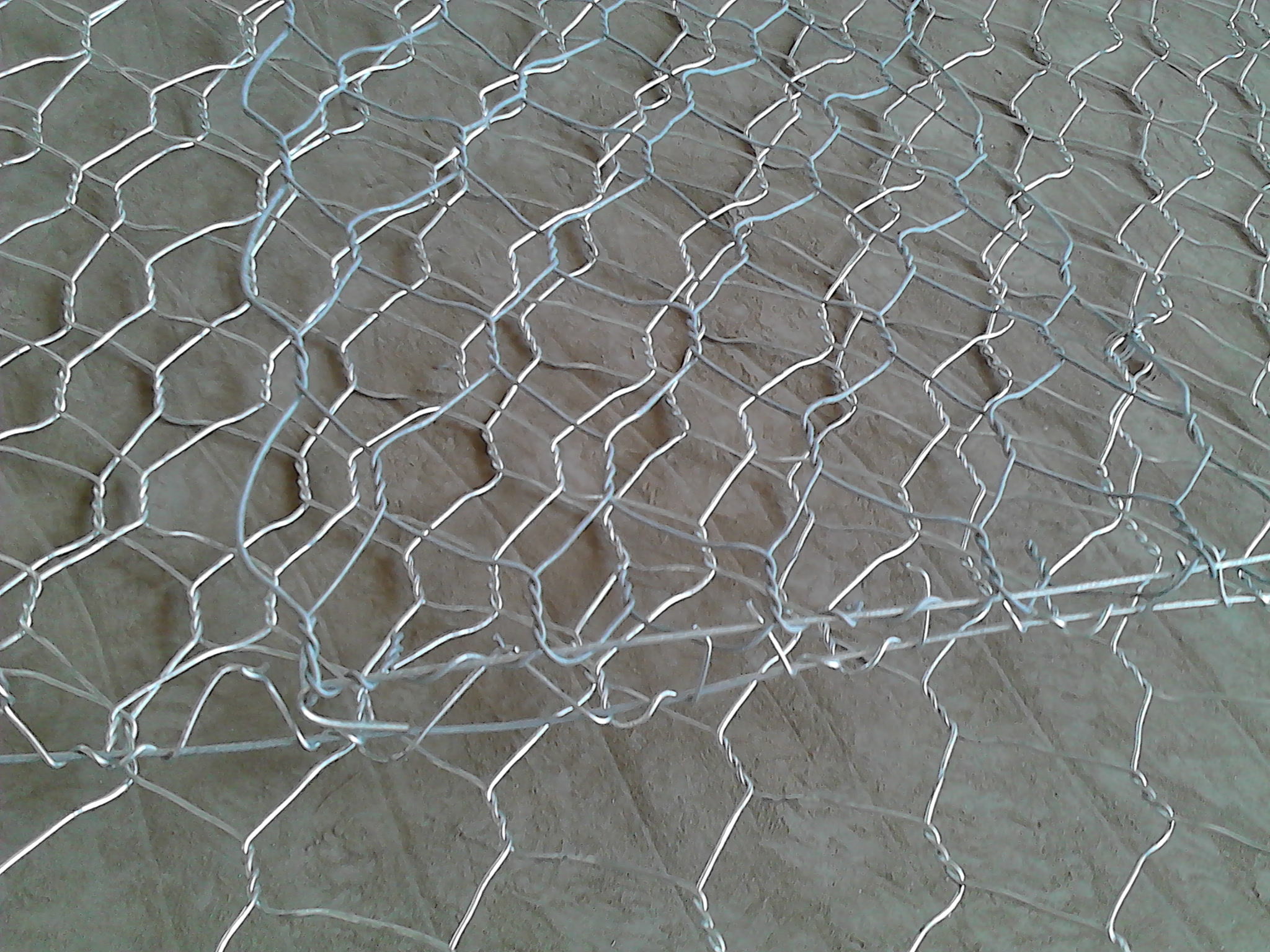

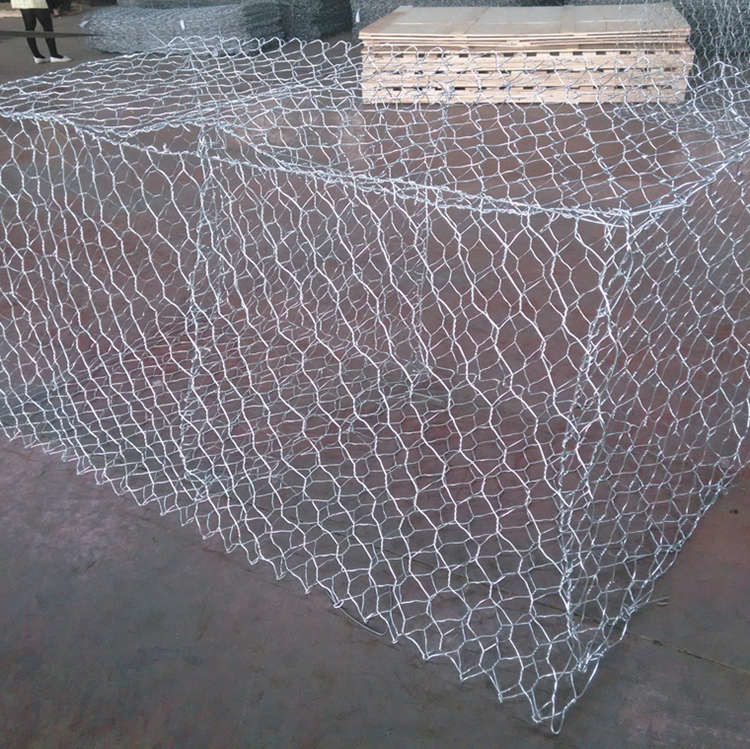

Gabion box consists of rectangular units, fabricated from a double twisted hexagonal mesh. Filled with stones, gabion basket become large, flexible and permeable elements from which a broad range of structures may be built. Gabion Baskets and Gabion mattresses are widely used for hydraulic and geo-technical control such as retaining walls, riverbank protections, weirs, channel linings etc.
Specification
|
Mesh Size cm |
Wire Dia. | Nominal Dimensions |
Number of Cells |
Capacity m³ |
The Tolerance |
||||
|
Mesh Wire cm |
Selvage Wire mm |
Tie wire mm |
Length m |
Width m |
Height m |
||||
|
6×8 8×10 10×12 |
2.0 2.2 2.4 2.7 3.0 |
2.4 2.7 3.0 3.4 3.9 |
2.0 2.0 2.0 2.2 2.4 |
2.0 | 1.0 | 0.5-0.3 | 1 | 0.3-0.6 |
Length: +/-3%
Width: +/-5%
Height: +/-5% |
| 3.0 | 1.0 | 0.15-0.3 | 2 | 0.45-0.9 | |||||
| 4.0 | 1.0 | 0.15-0.3 | 3 | 0.6-1.2 | |||||
| 2.0 | 1.0 | 0.5 | 1 | 1.0 | |||||
| 3.0 | 1.0 | 0.5 | 2 | 1.5 | |||||
| 4.0 | 1.0 | 0.5 | 3 | 2.0 | |||||
| 1.0 | 1.0 | 1.0 | 0 | 1.0 | |||||
| 1.5 | 1.0 | 1.0 | 0 | 1.5 | |||||
| 2.0 | 1.0 | 1.0 | 1 | 2.0 | |||||
| 3.0 | 1.0 | 1.0 | 2 | 3.0 | |||||
| 4.0 | 1.0 | 1.0 | 3 | 4.0 | |||||
| Binding wire : 2% weight of gabion box | |||||||||
| All sizes and dimensions are nominal | |||||||||
Gabion box, Gabion mattress, Gabion rolls all available

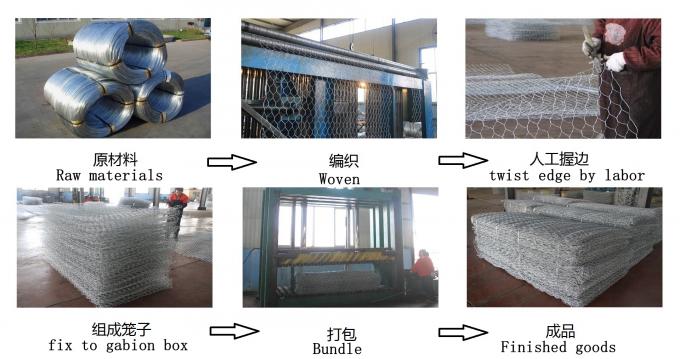

Process
Applications

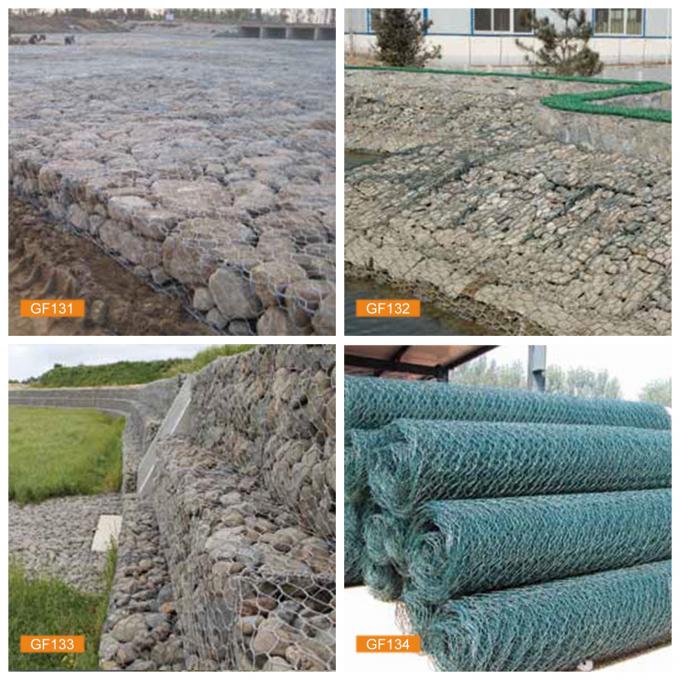

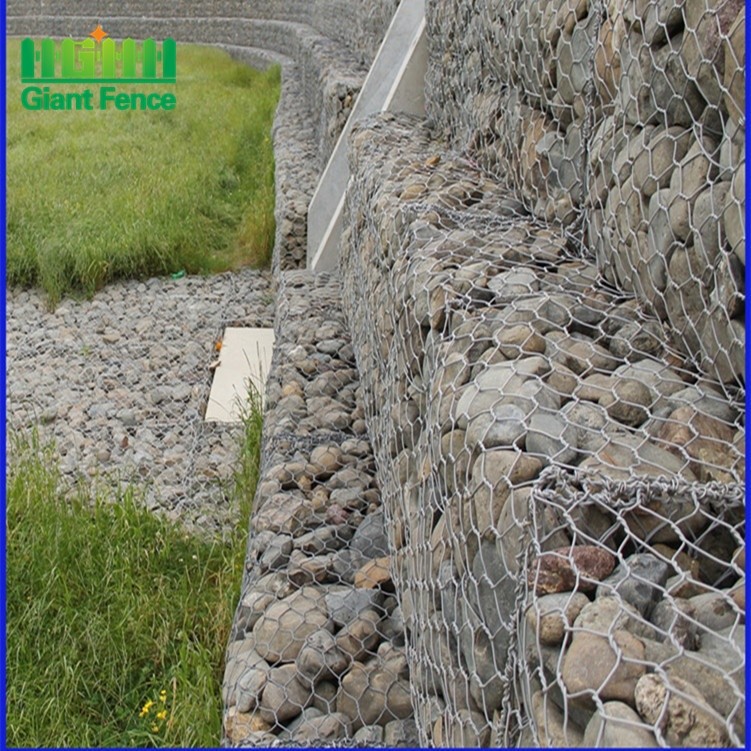

Double Twisted Hexagonal Mesh Gabions & es are commonly used for channel linings, river training, soil retention, slope stabilization, and other applications successfully throughout the world for over 20 years.

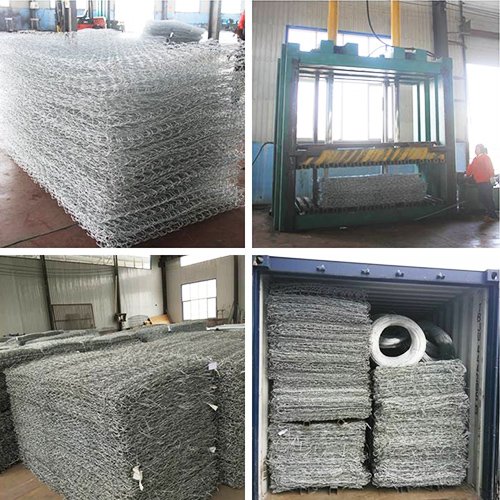

Package
1.In buik
2.Pallet packing
3.According your requests.
