Prison Durable Anti Climb Security Fencing Welded 358 Wire Mesh
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Galvanized Wire ; Hot-dipped Galvanized Wire
Color: Sliver,black,green
Hole Size: 76.2*12.7mm
Wire Diameter: 3.0/4.0mm
Feature: Anti-cutting And Anti-climbing
Name: Prison Durable Anti Climb Security Fencing Welded 358 Wire Mesh
High Light:

prison anti climb security fencing

,

weld mesh358 anti climb security fencing

,

weld mesh358 anti climb prison fence

Basic Infomation
Place of Origin: CHINA
Brand Name: HGMT
Certification: ISO9001
Model Number: GF022
Payment & Shipping Terms
Packaging Details: 1.panel with pallet and post bulk 2.panel and post all packing with pallet
Delivery Time: 25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000meter per week
Product Description

Durable welded 358 anti climb high security wire mesh fence



Anti climb fence is the ultimate heavy duty welded mesh panel providing the highest degree of security with excellent see through visibility. It has toe and finger proof profile. With spacing specification of 75mm x 12.5mm, it is impossible for fingers and toes to go through. Our anti-climb fence is perfect as a guarded fence system because of its exclusive thickness, anti-cutting materials and its framework is very strong resistant and hard to uninstall.

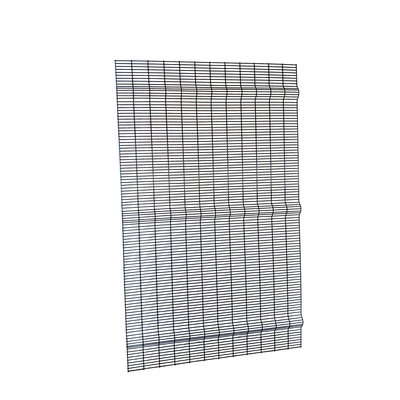

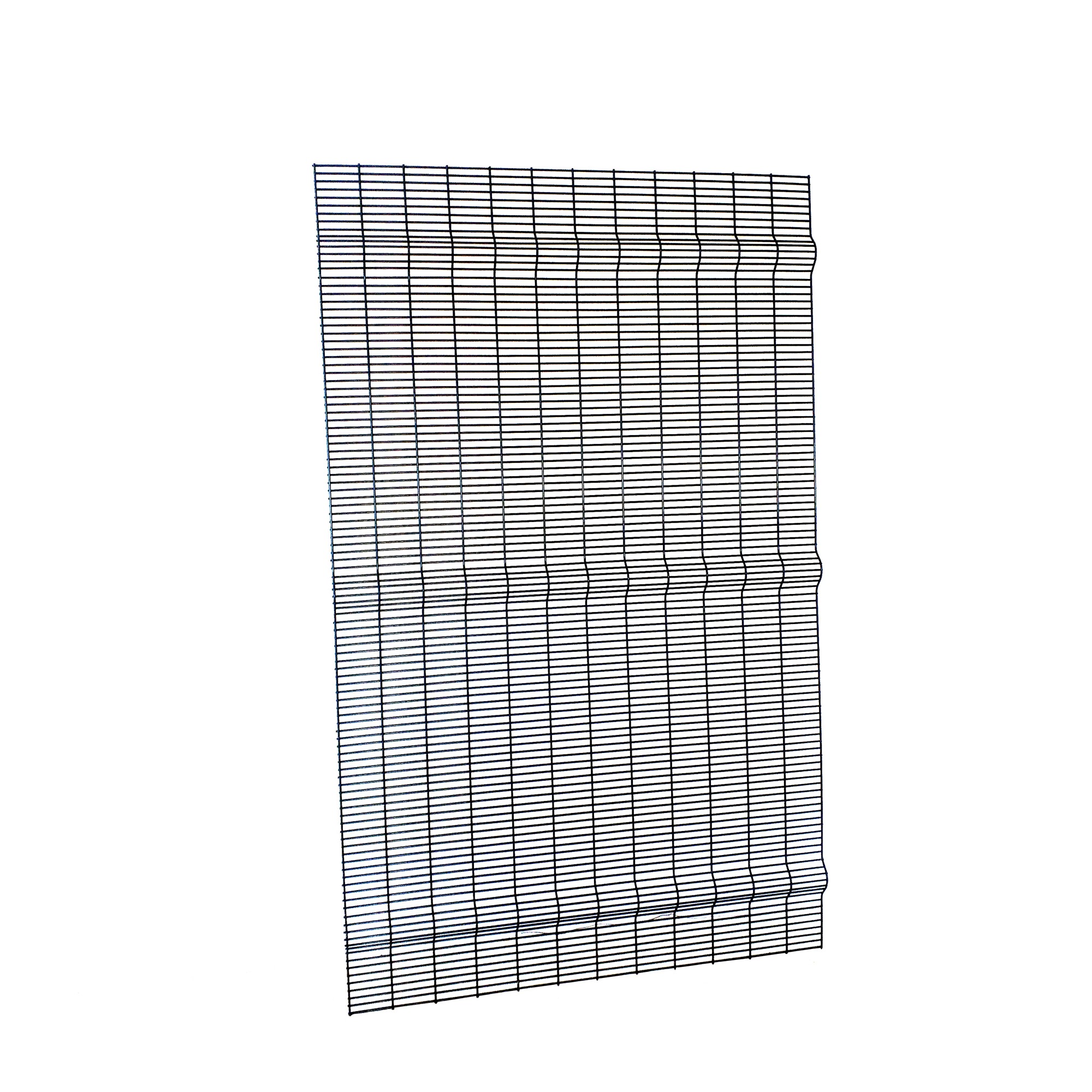

Prison Durable Anti Climb Security Fencing Welded 358 Wire Mesh 0



Feature:
1. Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2. Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
3. Beautiful appearance: the mesh surface is flat, and the perspective is higher.

Production Flow:
Material - Straighten & cut short - Welding - Making Curves - Parkerising & Powder coating - Packaging - Container Loading

Packaging for 358 Security Fence And Accessories:
Fence packaging
<1>Plastic film at the bottom to avoid the panel be destroyed
<2>4 metal corners to ensure the panel strong and uniform
<3>wood plate at the top of pallet to keep the under panel
<4>pallet tube size:40*80mm tubes at the botom vertical position

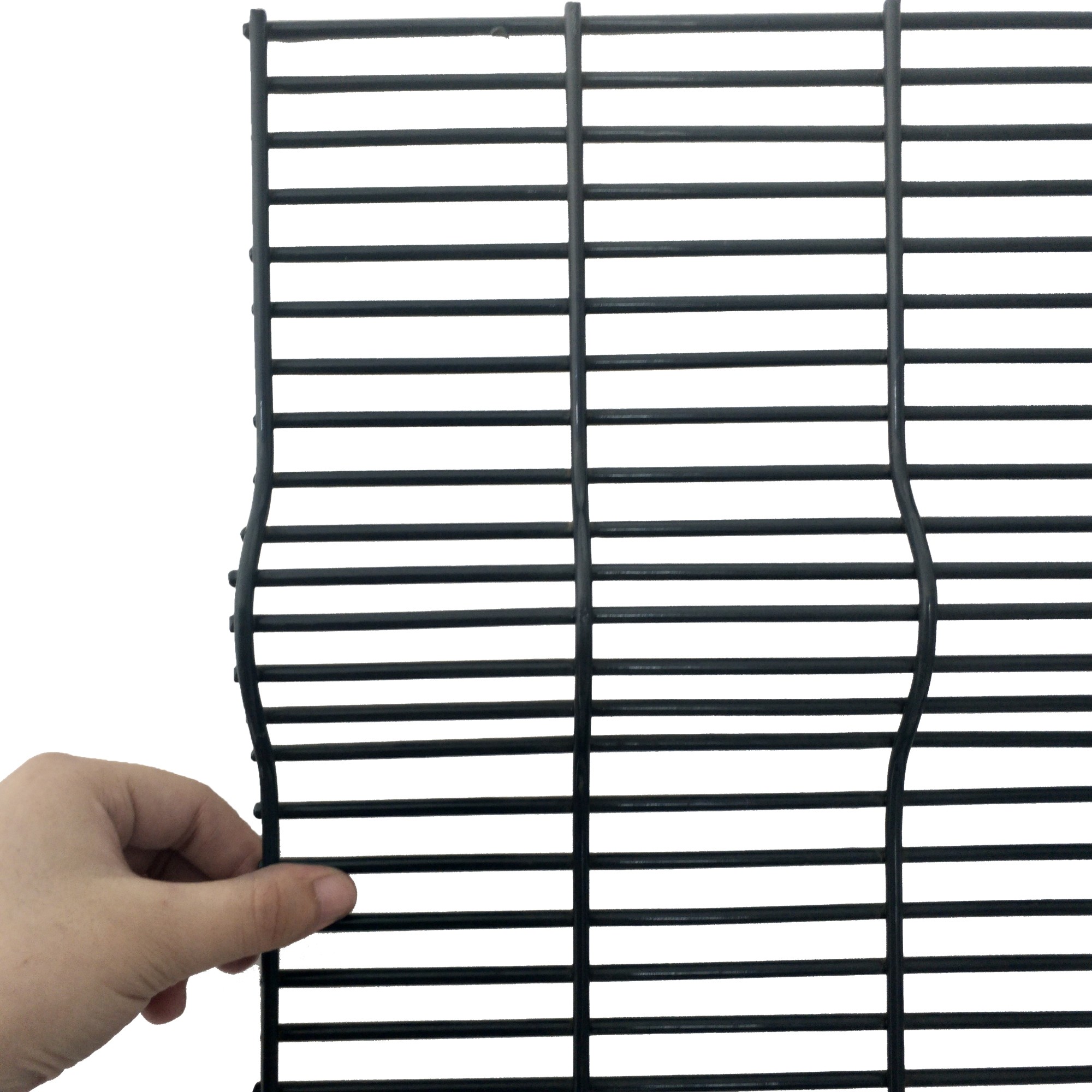

Prison Durable Anti Climb Security Fencing Welded 358 Wire Mesh 1



Specification:

Panel Description
Mesh size 3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter 8 gauge(4mm) horizontal wire and vertical wire
Welded strength Range 540-690N/m2



Surface treatment

hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
Installation Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material high grade steel for maximum strength and rigidity
Post section 60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness 2.5mm or 3.0mm
  inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors Green RAL 6005, or Black RAL 9005
Post cap 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.

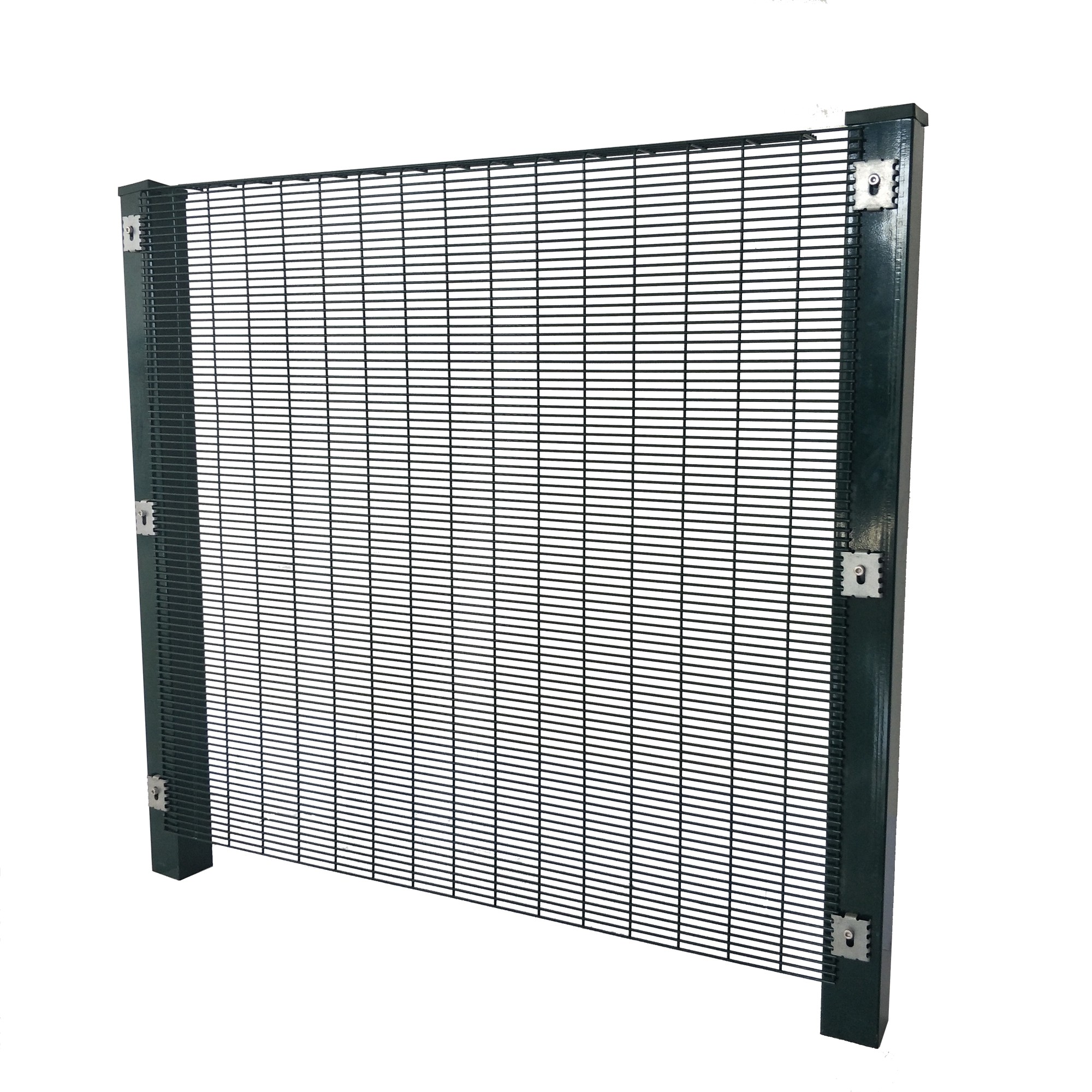

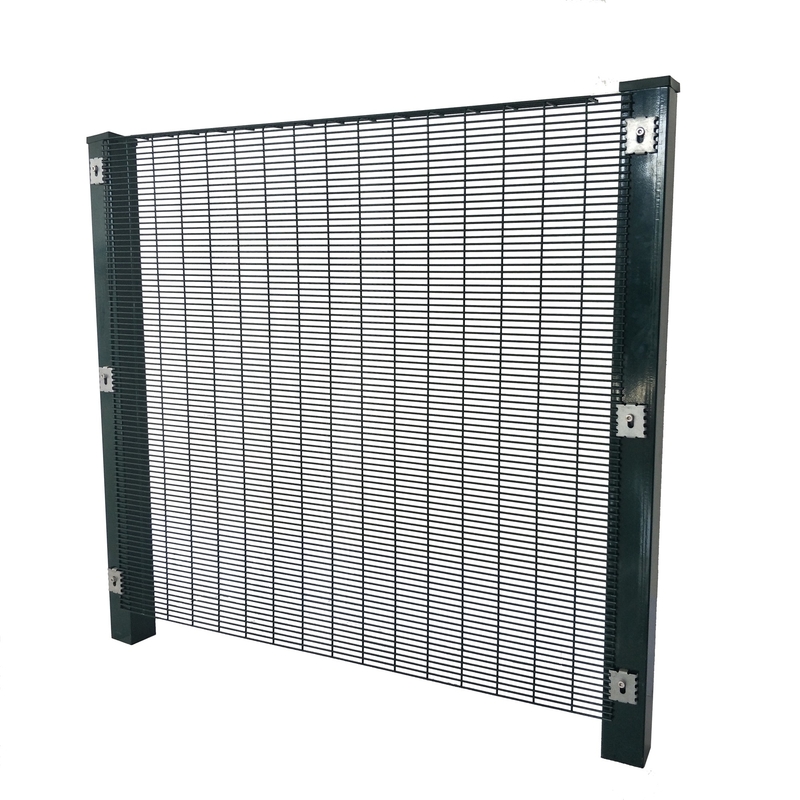

Prison Durable Anti Climb Security Fencing Welded 358 Wire Mesh 2
