Powder coated galvanized 2.4m 358 anti climb security mesh fence
358 Security Fence Introduction:
- 358 Security Fence also called high security fence, anti-climb fence, prison fence.It is extremely difficult to penetrate and difficult to attack using conventional hand tools. It has the features of anti-climbing and anti-cutting.
- 358 Security Fence is wide used for Retail,industrial and commercial properties, schools, public utilities,Military, airports, secure units and prison.
Specification:
| Panel Description | |
| Mesh size | 3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection |
| Wire diameter | 8 gauge(4mm) horizontal wire and vertical wire |
| Welded strength | Range 540-690N/m2 |
|
Surface treatment |
hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span |

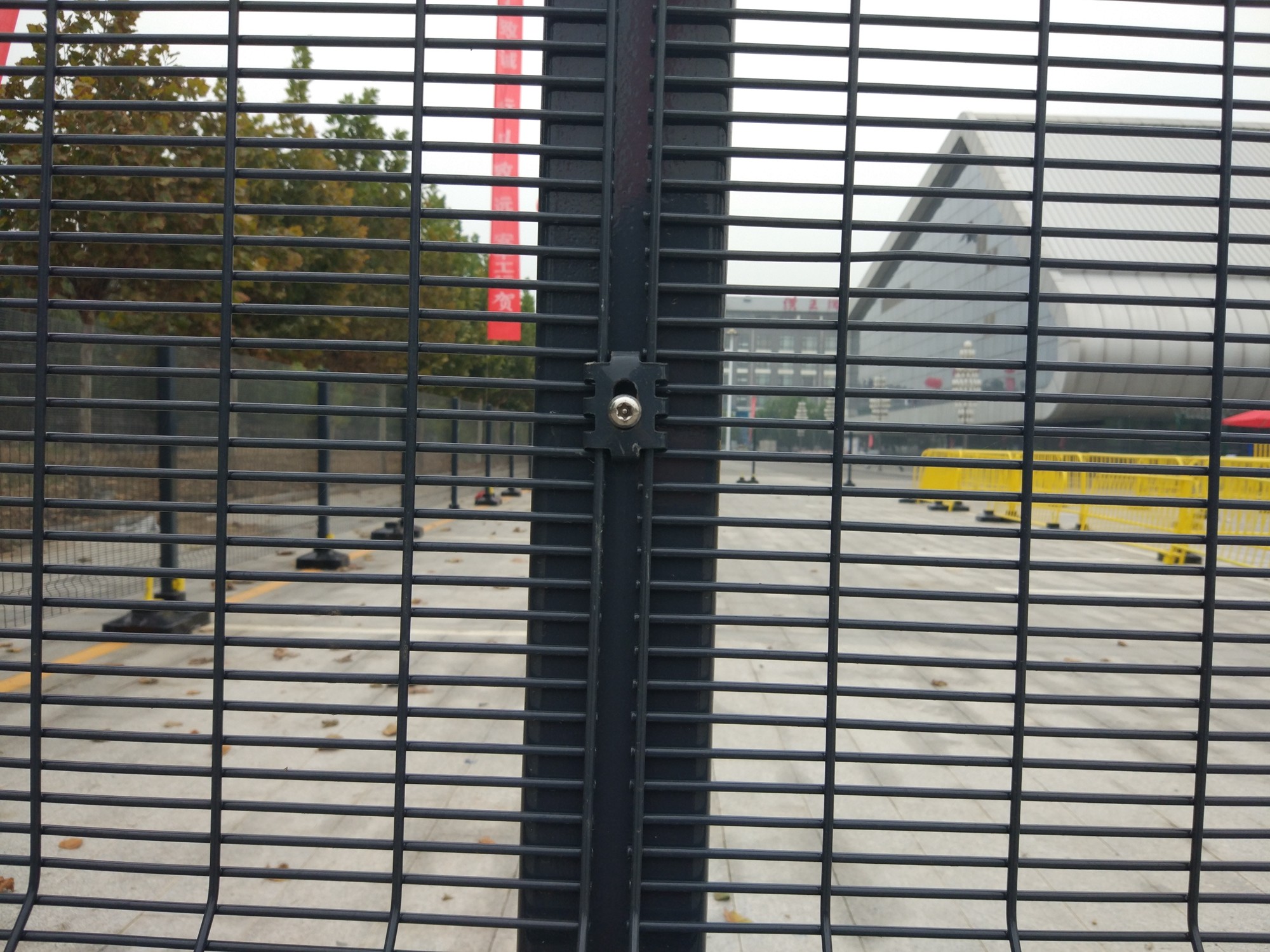

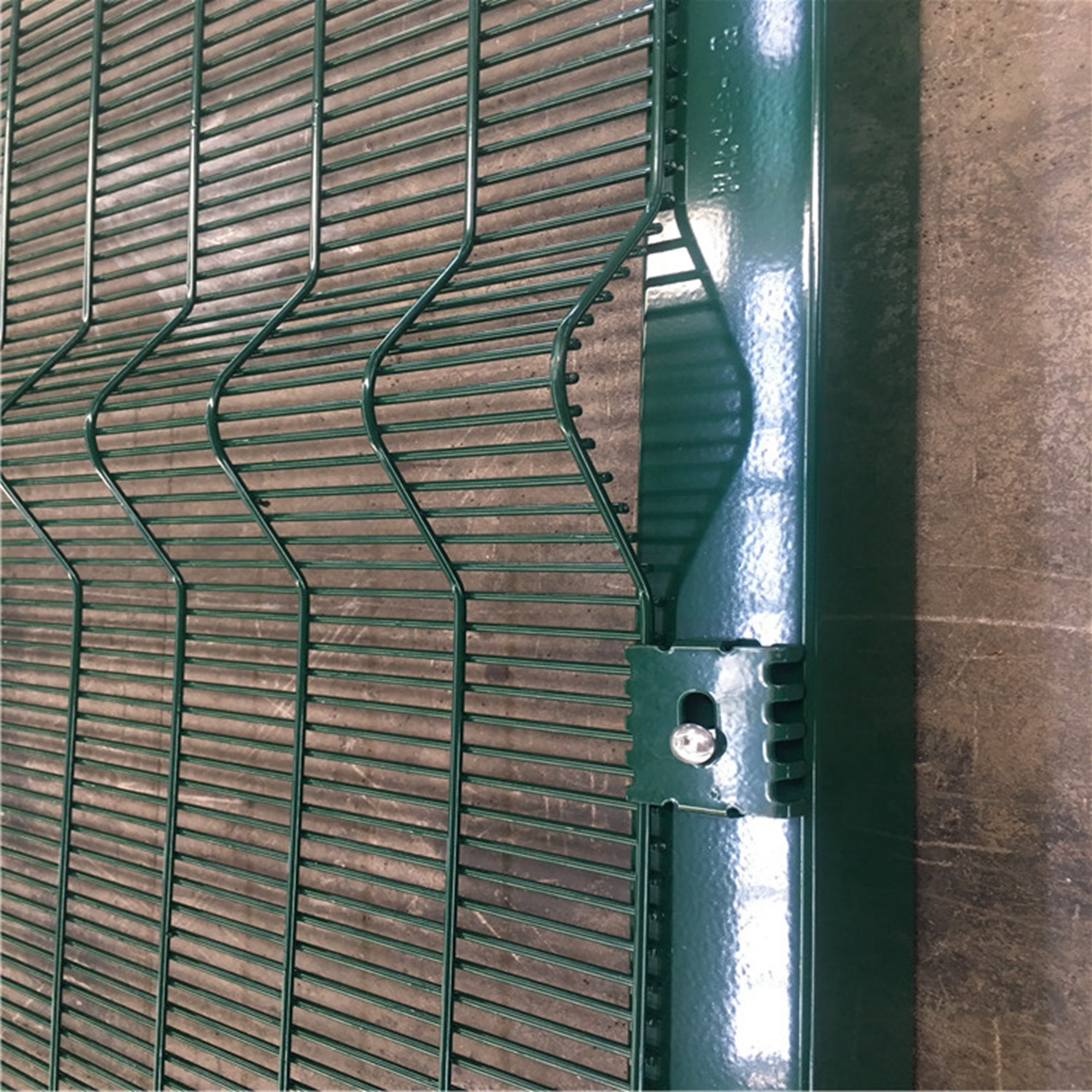

| Installation | Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts |
| Post Description | |
| Material | high grade steel for maximum strength and rigidity |
| Post section | 60×60mm,80×60mm, 80×80mm or 120×60mm |
| Post plate thickness | 2.5mm or 3.0mm |
| inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron ) | |
| Colors | Green RAL 6005, or Black RAL 9005 |
| Post cap | 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap |
| Metal clips and clamps are hot dip galvanized then powder coating in green or black color. | |
Feature:
1. Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.
2. Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
3. Beautiful appearance: the mesh surface is flat, and the perspective is higher.
Surface Treatment :
- Hot-Dipped Galvanized After Welding
- Electric Galvanized Then PVC Coated
- Electric Galvanized Then Powder Coated
