358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion

80sets
MOQ
Negotiable
Price
358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Galvanized Wire ; Hot-dipped Galvanized Wire
Color: Sliver,black,green
Hole Size: 76.2*12.7mm
Wire Diameter: 3.0/4.0mm
Feature: Anti-cutting And Anti-climbing
Name: 358 Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion
High Light:

4mm anti climb security fence

,

anti corrosion anti climb security fence

,

weld mesh358 black anti climb fence

Basic Infomation
Place of Origin: CHINA
Brand Name: HGMT
Certification: ISO9001
Model Number: GF022
Payment & Shipping Terms
Packaging Details: 1.panel with pallet and post bulk 2.panel and post all packing with pallet
Delivery Time: 25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000meter per week
Product Description

Electric and PVC coated anti-corrosion 358 high security fence



358 security fence panel introduction
The mesh size of 358 security fence is 76.2*12.7mm(center to center), the distance of horizontal wire is 12.7mm, and the distance of vertical wire is 76.2mm. 358 Security Fence has good anti-corrosion performance, anti-aging, beautiful appearance and easy installation.

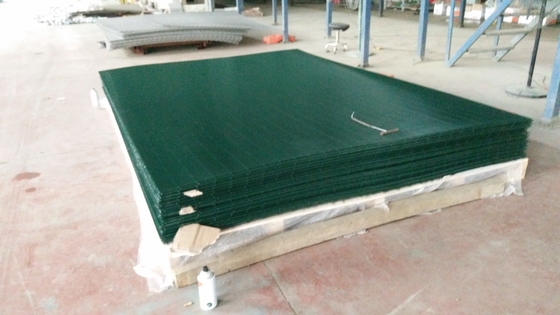

358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion 0



Panel Description
Mesh size 3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter 8 gauge(4mm) horizontal wire and vertical wire
Welded strength Range 540-690N/m2



Surface treatment

hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
Installation Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material high grade steel for maximum strength and rigidity
Post section 60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness 2.5mm or 3.0mm
  inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors Green RAL 6005, or Black RAL 9005
Post cap 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.



Feature:
1. Anti-climb:Due to the high-density mesh of the 358 guardrail, it is impossible to grasp the hands and feet, which plays a very good protection against climbing.

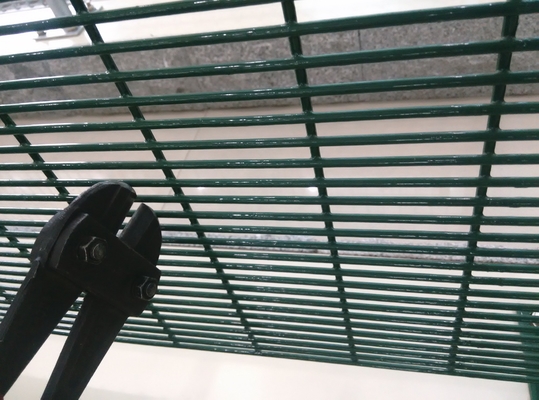

2. Anti-shear:the wire diameter is large, the mesh is dense, making the wire cut useless.
3. Beautiful appearance: the mesh surface is flat, and the perspective is higher.

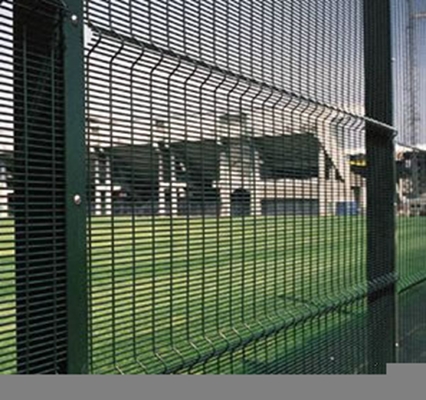

358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion 1

358 4mm Anti Climb Security Fence Electric And Pvc Coated Anti Corrosion 2
