Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion

80sets
MOQ
Negotiable
Price
Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Galvanized Wire ; Hot-dipped Galvanized Wire
Color: Sliver,black,green
Hole Size: 76.2*12.7mm
Wire Diameter: 3.0/4.0mm
Feature: Anti-cutting And Anti-climbing
Name: Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion
High Light:

76.2*12.7mm anti climb security fencing

,

anti climb security fencing anti corrosion

,

weld mesh358 anti cut security fence

Basic Infomation
Place of Origin: CHINA
Brand Name: HGMT
Certification: ISO9001
Model Number: GF022
Payment & Shipping Terms
Packaging Details: 1.panel with pallet and post bulk 2.panel and post all packing with pallet
Delivery Time: 25days
Payment Terms: L/C, D/P, T/T
Supply Ability: 5000meter per week
Product Description

PVC coated high security anti-corrosion anti climb security fence




High security fencing , Prison Mesh Fencing or 358 Mesh Fencing as it is also known, is a highly robust steel Mesh Fencing system. It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers through the apertures, to ultimately climb the fencing.

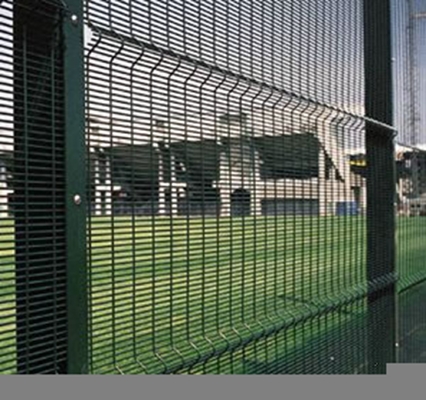

Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion 0

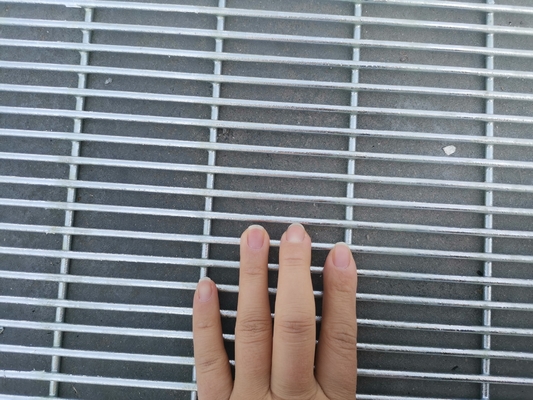

"358" comes from its measurements 3"*0.5"*8 gauge which means approximately 76.2mm*12.7mm*4mm (mesh opening* wire diameter).358 Anti Climb Security Fence is one security fence that is extremely difficult to penetrate through, because the small mesh aperture is effectively finger proof, and extremely hard to attack by using conventional hand tools.

Customer Service
Fast and Accurate Quotes
Best Value, Quality Products
10 Year Warranty on most Products


Custom Design
As every project is different, we can manufacture to your specifications to ensure your unique design ideas


Quality Inspection
We have our own quality control department to provide special quality testing for our customers.





Panel Description
Mesh size 3"(75mm)*0.5"(12.5mm) resistance welded well at each intersection
Wire diameter 8 gauge(4mm) horizontal wire and vertical wire
Welded strength Range 540-690N/m2



Surface treatment

hot dipped galvanized steel wire, then PVC powder coating (Min. 100 micron), or PVC powder painting. It provides additional protection and increases the potential life span
Installation Overlapped 75mm minimum at each post (shown as the below photo) for securing with slotted clamp bars and M8 diameter bolts
Post Description
Material high grade steel for maximum strength and rigidity
Post section 60×60mm,80×60mm, 80×80mm or 120×60mm
Post plate thickness 2.5mm or 3.0mm
  inside and outside galvanized (Min. 275 g/m2), subsequently covered with a polymer powder (Min. 60 micron )
Colors Green RAL 6005, or Black RAL 9005
Post cap 80×60mm and 120×60mm post with metal caps, and 80×80mm post with plastic cap
Metal clips and clamps are hot dip galvanized then powder coating in green or black color.



Fittings

Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion 1

Quality Control Strictly

The professional quality Inspection Lab and expert quality technician will be responsible for each order, from raw material to loading container, step by step taking pictures for our clients.

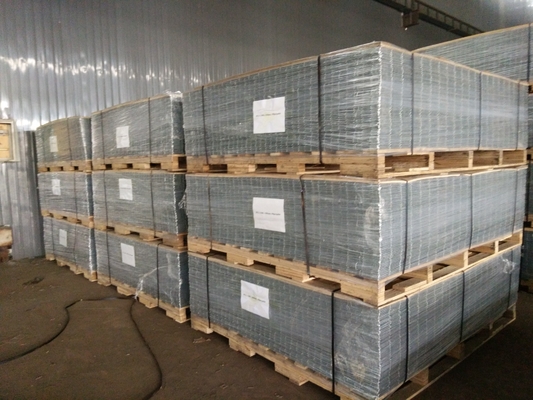

Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion 2

Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion 3

Pvc Coated 76.2*12.7mm Anti Climb Security Fencing Anti Corrosion 4



Enterprise Honor

We have passed the certificate of ISO9001, health and safety management system, quality management system
