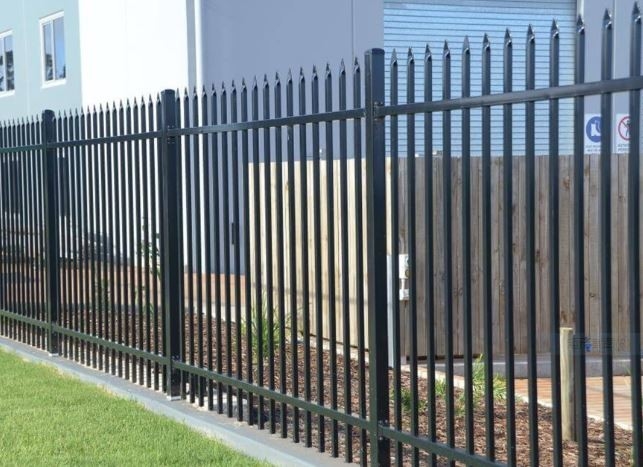

Zinc Design 6ft Black Pvc Coated Wire Mesh Tubular Steel Fence
Tubular Fence Brief Introduction
Panels are manufactured using the industry’s highest-strength rails. Pickets feature "true" sizing, and feature full galvanization,
without unprotected seams. The picket shape within the high-strength rails prevent rattle or removal, and allow for racking of 48" per 8-foot panel - equal to or greater than any comparable fence product
Tubular Fence Specification
| Panel length | 1.5m | 1.8m | 2.0m | 2.4m | 2.5m | 3.0m |
| Panel height | 1200mm | 1500mm | 1800mm | 2000mm | 2100mm | 2400mm |
| Rails | 25*25mm | 40*40mm | 45*45mm | |||
| Rails No | 2pcs | 3pcs | 4pcs | |||
| Rails thickness | 1.0mm | 1.2mm | 1.5mm | 1.8mm | 2.0mm | 2.5mm |
|
picket |
16*16*1mm/1.2mm | 19*19*1.2mm/1.5mm | 16*1.2mm/1.5mm | 19*1.2mm/1.5mm | ||
| Picket distance | 100mm | 125mm | 140mm | |||
|
post size |
50*50*1.5/1.8/2mm | 60*60*1.5/1.8/2mm | 75*75*1.5/1.8/2mm | |||
| Colors | Black ral 9005 | Grey ral 7016 | White ral9010 | Blueral5012 | ||
| features | Easily Assembled | Eco Friendly | Waterproof | Rot Proof | Rodent Proof | |
| packaging | Wrapped with plastic film. | Covered with carton board. | Tie with steel belt. | Covered with Your logo. | Loaded on steel pallet | |
| Surface treatment |
Surface treatment:powder coated after hot -dipped galvanized tube welded |
|||||
Tubular Fencing process
1.Purchase the raw material tube--Zn/Ai coating test--cutting--welding panel--punching picket--Powder coating --loading
2.Post cutting--punching hole on the post -- Powder coating--Loading
