Family Yard 1030mm Height Welded Wire Garden Fence 3D

50sets
MOQ
Negotiable
Price
Family Yard 1030mm Height Welded Wire Garden Fence 3D
Features Gallery Product Description Request A Quote
Features
Specifications
Model Number: I Type Post With 3D Wire Mesh Fence
Frame Material: Metal
Metal Type: Iron
Pressure Treated Wood Type: Heat Treated
Frame Finishing: PE Coated
Feature: Easily Assembled, Sustainable, ECO FRIENDLY, FSC, Pressure Treated Timbers, Renewable Sources, Rodent Proof, Rot Proof, Tempered Glass, TFT, Waterproof
Usage: Garden Fence, Highway Fence, Sport Fence, Farm Fence
Material: Low Carbon Steel Wire
Opening Size: 50*200/55*200/50*150mm
Bending No: 2/3/4/5
Height: 1030/1230/1530/1730/1830/2030/2230/2530/3030mm
Post Type: I Type Post
Surface Treatment: Galvanized+PE Coated
Color: Green,Black,gray
Application: Residential,School
High Light:

1030mm height welded wire garden fence

,

3d steel welded wire garden fence

,

1030mm height steel wire garden fence

Basic Infomation
Place of Origin: Hebei. China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF008
Payment & Shipping Terms
Packaging Details: 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Product Description

Large range of items in stock available for family yard welded wire garden fence



Welded Wire Garden Fence Description

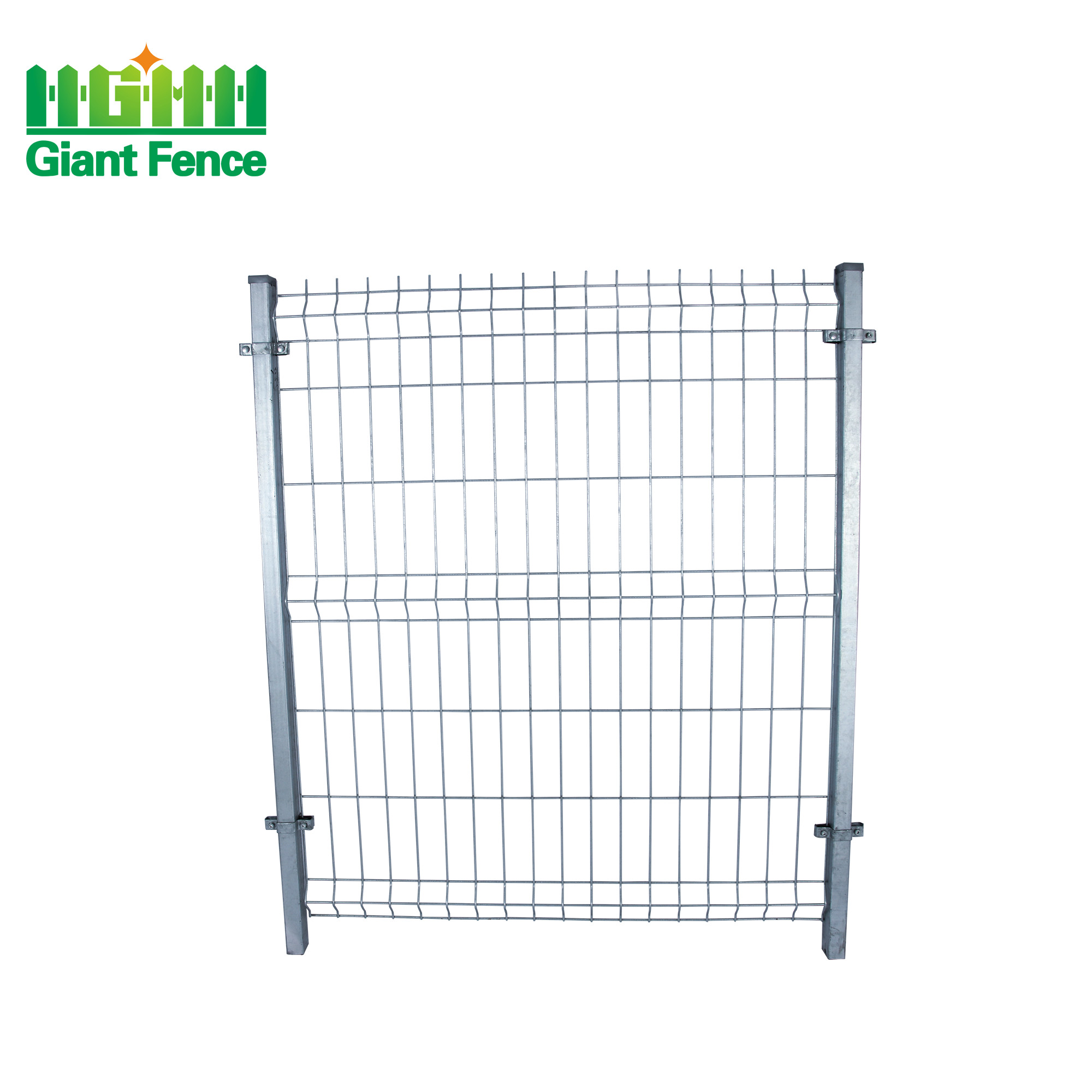

Welded wire garden fence with peach Type Post, also named 3D mesh fence or Curve mesh fence, it has simple structure ,easy installation and nice appearance.



the panel with curves more stable and stronger.



* Material: Low carbon steel wire Q195 Q235
* Processing mode: welded
* Panel Classification:
I. Black wire welded mesh + pvc coated;
II. Galvanized welded mesh + pvc coated;
III. Hot dipped galvanized welded mesh + pvc coated.
(PVC coated colors: dark green, light green, blue, yellow, white, black, orange and red, etc.)





Welded Wire Garden Fence panel and post Specification





Welded mesh panel

Hole size 50mmx100mm ,50mmx200mm , 50mmx75mm
Wire diameter 3.5mm-5.0mm
Panel size 1.8mx3m ,three or four bends





Post

Post size 40mmx60mm ,50mmx50mm
Wall thickness 1.0mm-3.0mm
Height 1.8m-2.5m
Distance 2m-3m
Fence color Dark green ,grass green ,red ,white ,black ,blue and yellow ect.
Customization accepted.





Specifications of the post:



Small: 50*70*1.2mm



Big: 70*100*1.2mm



Family Yard 1030mm Height Welded Wire Garden Fence 3D 0



Welded Wire Garden Fence Gate:

Family Yard 1030mm Height Welded Wire Garden Fence 3D 1

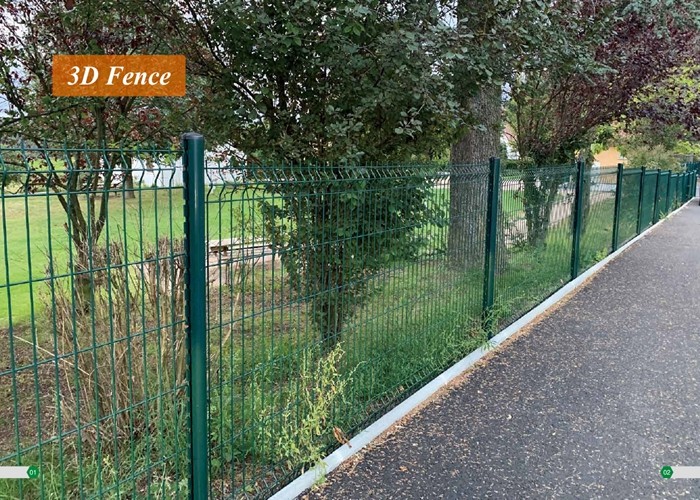

Welded Wire Garden Fence Application


  1. Commercial grounds (Corporation, hotel, supermarket)
  2. Private grounds (Courtyard, Villadom)
  3. Public grounds (Park, zoo, train or bus station, lawn);
  4. Road and transit (Highway, railway or road city transit);
  5. 3D fence is used as decoration or protection for various facilities in industry,agriculture, transport, etc.

Family Yard 1030mm Height Welded Wire Garden Fence 3D 2

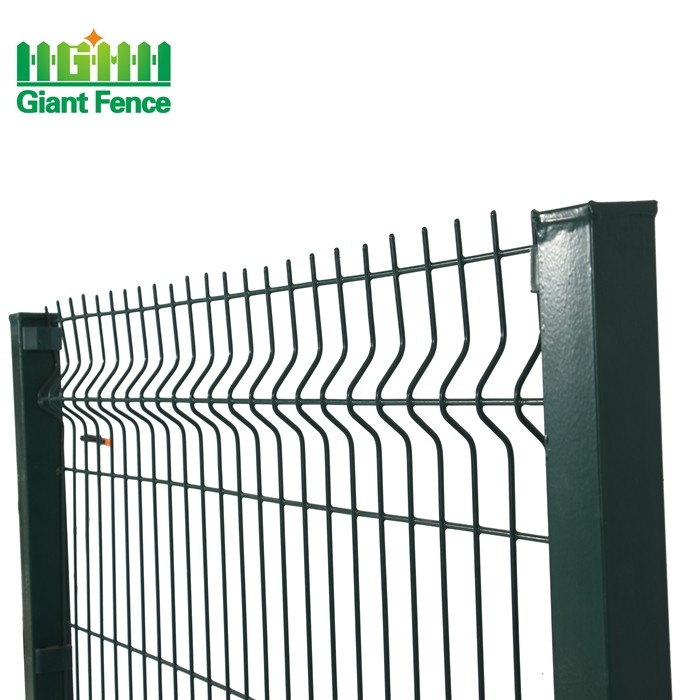

3D Welded Wire Mesh Fence Feature

  1. There have the Triangle shape Bending on the panel. And the bending No.s depend on the panel’s height
  2. There should be steel and plastic clips using to connect the panel with the post
  3. The post can welded based on the end and also can bury into the ground
  4. The surface can do there types :1) hot dip galvanized after welded 2) Galvanzied+powder coating 3) Galvanzied+PE coating

3D Welded Wire Mesh Fence process



1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading

2.Post cutting--punching hole on the post -- Powder coating--Loading



Quality Control Process

  1. Raw material test the Zn/Ai
  2. Semi-finished product test the size and quality
  3. Finished Product’s Test the surface adhesive force (usually the post surface test )
  4. Finished Product’s installation

Service



1: Product Service

Our products offer 10 YEARS GUARANTEE.



2: Product customization services

We can customize products according to your requirements, including design and drawing.



3: After-sales service

Our after-sales service start immediately after signing the contract.

1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.

2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.

3.Do our best to help customer arrange the shipment and customs clearance.

4.Installation, maintenance and repair instructions with full information.



Packing terms

  1. Panel and post all bulk in the container
  2. Panel with pallet (steel or wooden material) post packing using bubble film bulk in the container
  3. Panel and post all packing with pallet in the container
  4. All the clips and caps packing in the carton box

Family Yard 1030mm Height Welded Wire Garden Fence 3D 3

Family Yard 1030mm Height Welded Wire Garden Fence 3D 4

Family Yard 1030mm Height Welded Wire Garden Fence 3D 5

Family Yard 1030mm Height Welded Wire Garden Fence 3D 6
