8ft Height Electric Welding V Mesh Security Fencing With Multiple Post

8ft Height Electric Welding V Mesh Security Fencing With Multiple Post
8ft Height Electric Welding V Mesh Security Fencing With Multiple Post 8ft Height Electric Welding V Mesh Security Fencing With Multiple Post 8ft Height Electric Welding V Mesh Security Fencing With Multiple Post

Large Image :  8ft Height Electric Welding V Mesh Security Fencing With Multiple Post

Product Details:
Place of Origin: Hebei, China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF003
Payment & Shipping Terms:
Minimum Order Quantity: 50 sets
Price: Negotiable
Packaging Details: 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Detailed Product Description
Type: Fencing Frame Finishing: Powder Coated,PVC Coated,Galvanized
Frame Material: Metal Feature: Easily Assembled
Material: Low Carbon Steel Wire Surface Treatment: Galvanized+PVC Coated,powder Coated,hot Dipped Galvanized,etc
Color: Green,Black,White,Red,Grey Application: Residential,industrial,roads,School,garden
Wire Diameter: 4.0mm Usage: Back Yard Fence,etc
Height: 0.63-2.43mm Post: Peach Post,square Post Or Round Post
Mesh Size: 200mm*50mm / 150mm*50mm/100mm*50mm Panel Height: 1.03m-2.4m
High Light:

8ft height v mesh security fencing

,

electric welding v mesh security fencing

,

multiple post v mesh fencing

8ft Height Electric Welding With Multiple Post V Mesh Security Fencing





V Mesh Security Fencing Feature

  • There have the Triangle shape Bending on the panel. And the bending No.s depend on the panel’s height
  • There should be steel and plastic clips using to connect the panel with the post
  • The post can welded based on the end and also can bury into the ground
  • The surface can do there types :1) hot dip galvanized after welded 2) Galvanzied+powder coating 3) Galvanzied+PE coating

Specifications





Line wire x

Cross wire

Hole Size Panel Length Panel Height Bending No. Common Color Surface treatment

4x4mm

4.5x4mm

4.5x4.5mm

5x4mm

5x5mm

6x5mm

6x6mm

50X100mm

50X200mm

55X200mm

75X150mm

100X300mm



2m

2.2m

2.4m

2.5m

2.8m

3m

830mm 2

Green RAL6005

Grey RAL7016

Brown RAL8019

Black RAL9005

White RAL9010

1.Hot-dipped galvanized after black wire welded

2.PVC coated after galvanized wire welded

3.PE coated after galvanized wire welded



V Mesh Security Fencing process



1.Purchase the raw material wire--Zn/Ai coating test--Straightening and cutting--welding panel--Bending--Powder coating or PE coating--loading

2.Post cutting-- Powder coating--Loading



Quality Control Process

  • Raw material test the Zn/Ai
  • Semi-finished product test the size and quality
  • Finished Product’s Test the surface adhesive force (usually the post surface test )
  • Finished Product’s installation



Packing terms

  • Panel and post all bulk in the container
  • Panel with pallet (steel or wooden material) post packing using bubble film bulk in the container
  • Panel and post all packing with pallet in the container
  • All the clips and caps packing in the carton box

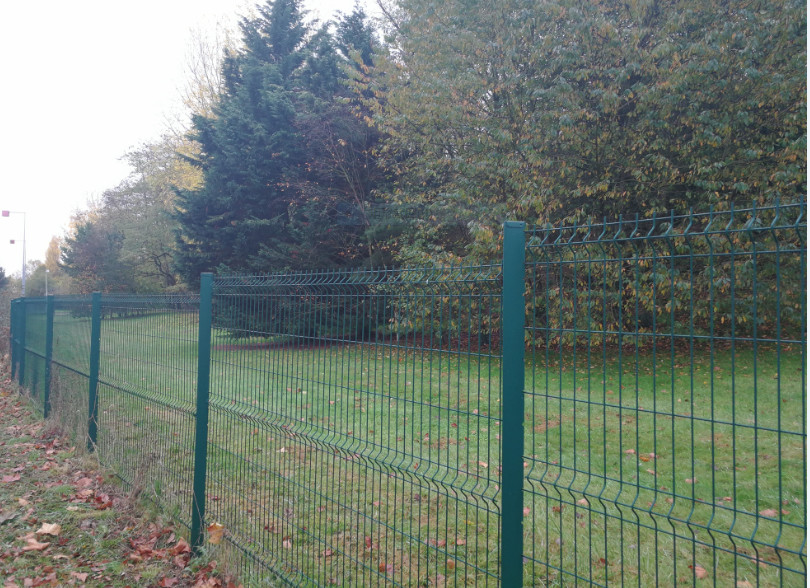

8ft Height Electric Welding V Mesh Security Fencing With Multiple Post 0

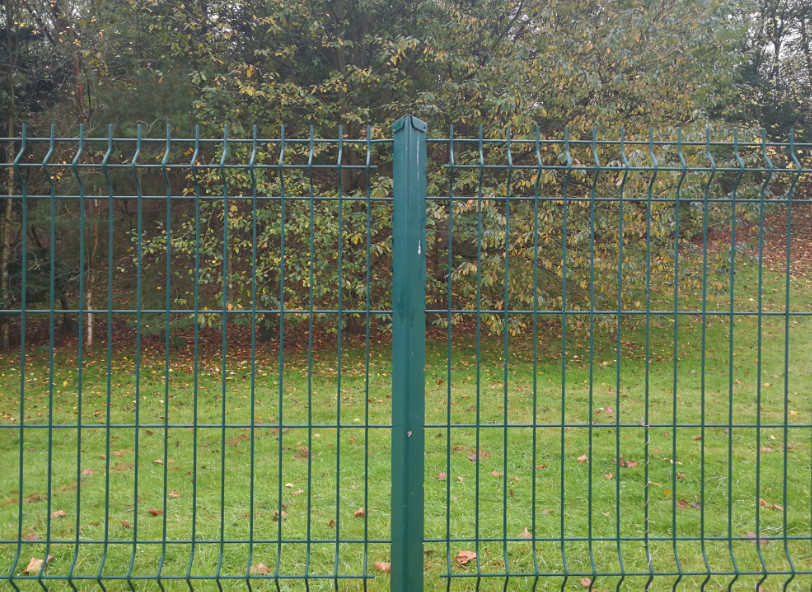

8ft Height Electric Welding V Mesh Security Fencing With Multiple Post 1

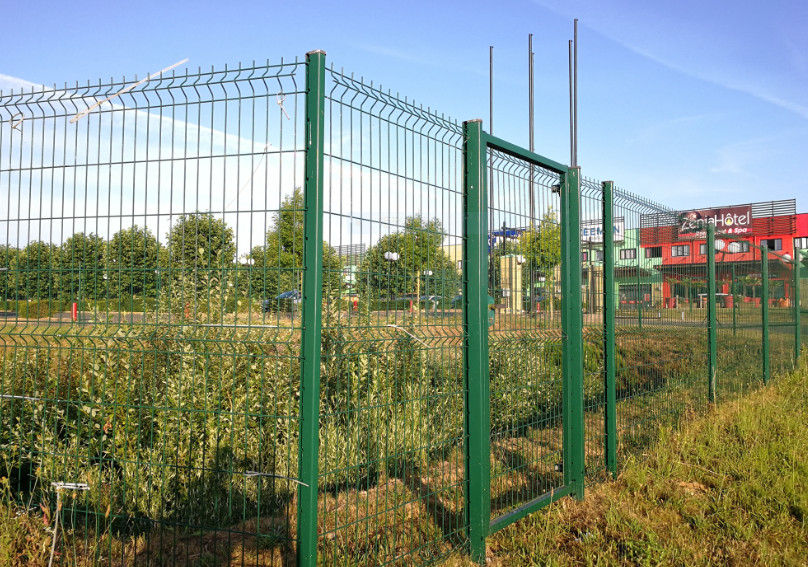

8ft Height Electric Welding V Mesh Security Fencing With Multiple Post 2
