Hesco Defense Wall Welded Gabion Box Defense Blast Wall For Military
1.Hesco bastion : also named as Hesco barrier, Hesco defense wall, Hesco blast wall, sand cage, welded gabion box, defense blast wall for military use, wire mesh gabion box, stone cage.

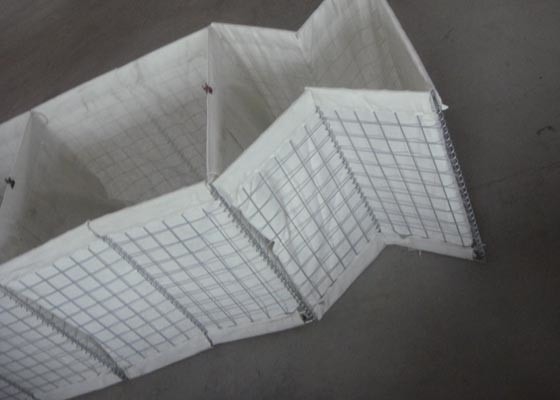

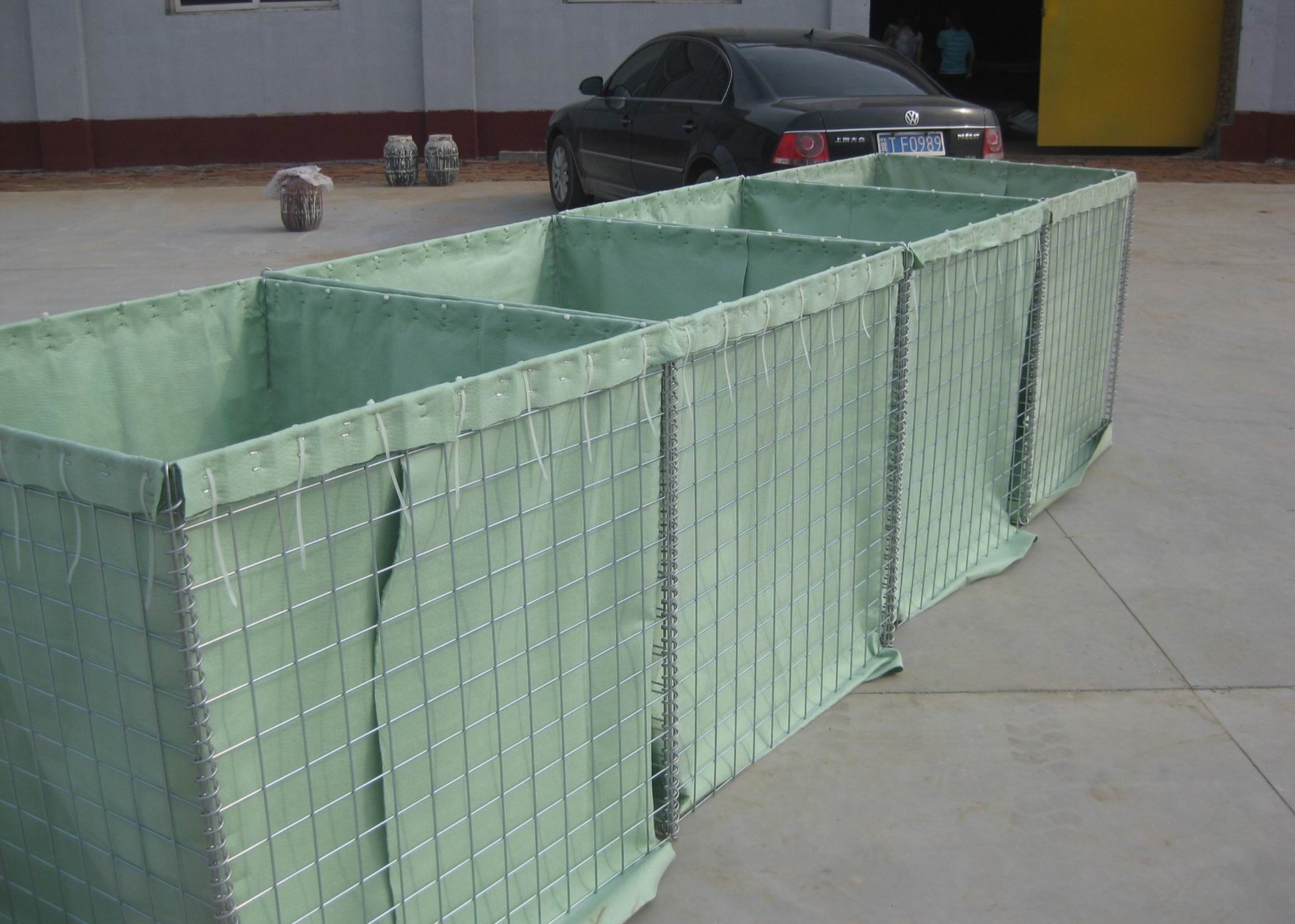

2. Structures and Characters: The Hesco barrier is a kind of modern gabion for Military fortification and Flood control. It is made of a collapsible wire mesh container and heavy duty fabric liner, it can be used in separate cell or some cells joint together.
Assembling the Hesco bastion entails unfolding it and fills it with sand, dirt or gravel.
The main advantage of Hesco barriers, strongly contributing to their popularity with troops and flood fighters, is the quick and easy setup.
Previously, people had to fill sandbags, a slow undertaking, with one worker filling about 20 sandbags per hour.
Workers use Hesco barriers and a front end loader can do ten times the work of those using sandbags.
Hesco Barriers Blast Wall Specifications
|
Wire diameter
|
3.85mm,4mm,5mm etc
|
|||
|
Mesh Size
|
75mmx75mm etc
|
|||
|
Spring wire diameter
|
3mm,4mm,5mm etc
|
|||
|
Panel Finish
|
Hot dipped galvanized or Galfan coated
|
|||
|
Geotextile
|
Heavy duty non-woven polypropylene, color can be white, beige-sand, olive green, etc
|
|||
|
Packing Wrapped with shrink film or packed in pallet
|
||||
|
Technical Specification for Geotextile Fabric
|
||||
|
Color
|
Beige sand,Olive green,Grey
|
|||
|
Mass(g/sqm)
|
250,300,350
|
|||
|
Tensile strength
|
16kN
|
|||
|
Tear Strength
|
0.42kN
|
|||
|
CBR Puncture
|
3.1kN
|
|||
|
UV strength retention
ASTM D4355
|
50% at 500hours
(5 years use life in common environment) |
|||
|
70% at 500hours
(10 years use life in common environment) |
||||
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
