| Place of Origin: | China |
| Brand Name: | Giant Fence |
| Certification: | ISO9001:2008 |
| Model Number: | GF129 |

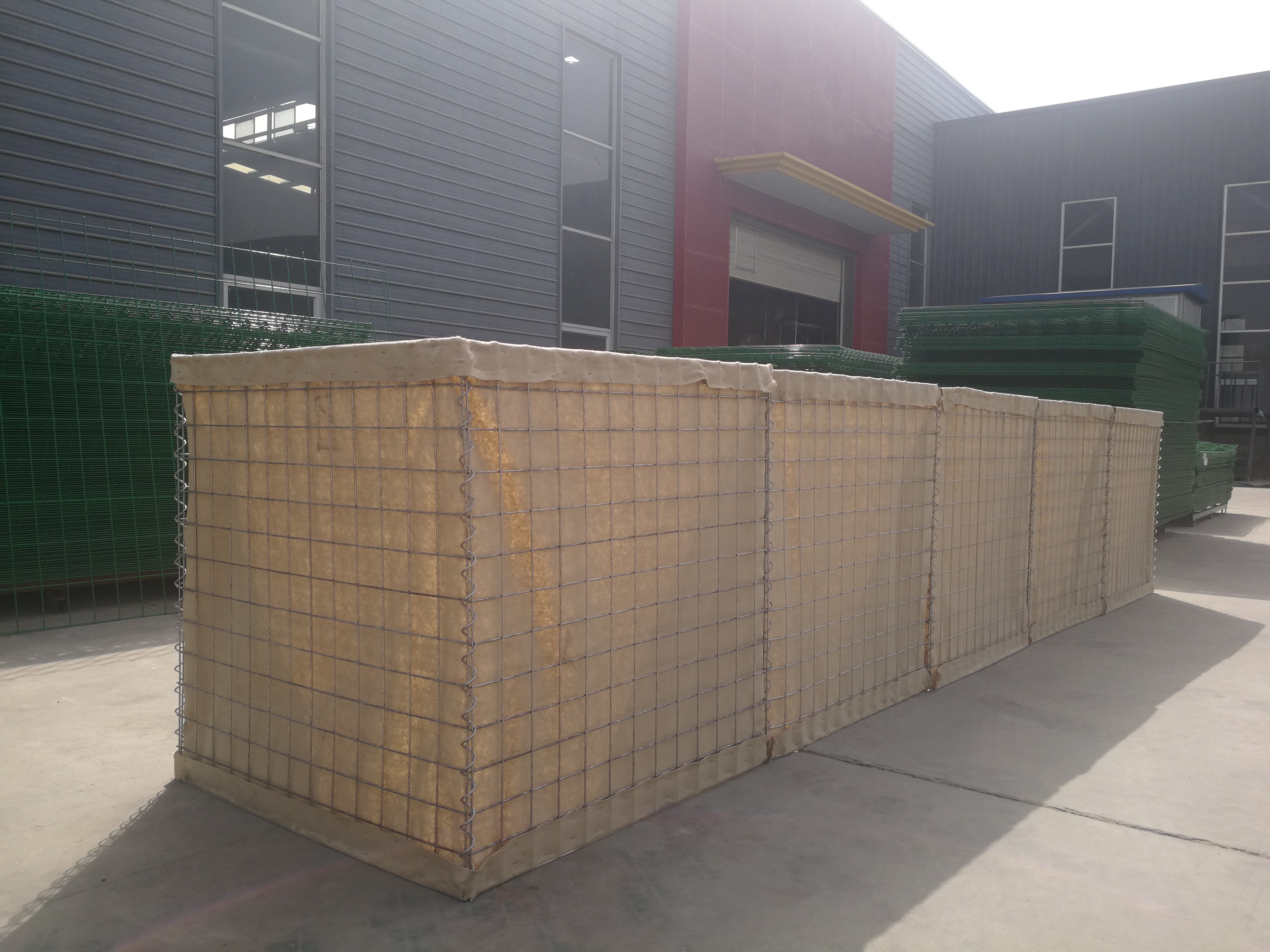

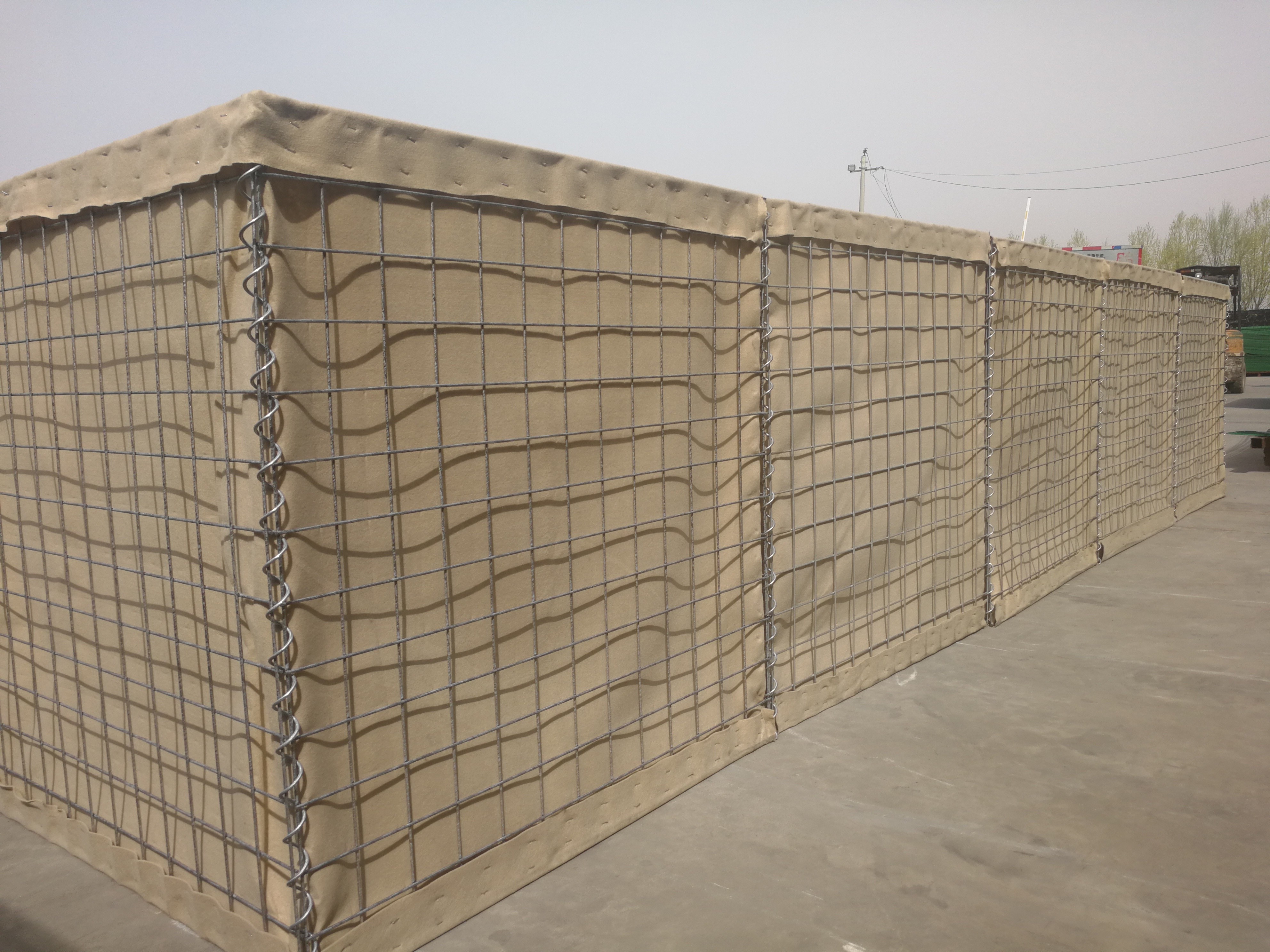

Diffrenet Size Customized Galvanized Hesco Bastion Gabion Walls
Hesco Barriers Blast Wall Introduction
Hesco barrier also named as hesco bastion, hesco defense wall, sand cage, welded gabion box, etc.It is a prefabricated,
multi-cellular system, made of zinc coated steel welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then hesco barrier like a defence wall or bunker,it is widely used for military fortification and flood control.
Hesco Barriers Blast Wall Specifications
|
Product Name
|
Hesco Barrier
|
||
|
Product Type
|
Welded mesh
|
||
|
Material
|
Galvanized steel wire or Galfan/zinc-5%aluminum wire
|
||
|
Wire Diameter
|
4.0-5.0mm
|
||
|
Geotextile
|
250g-400g
|
||
|
Geotextile colour
|
Sand clolor, Brown, Gray,and Military Green.
|
||
|
Mesh hole
|
76.2mm× 76.2mm, 50mm× 50mm, 75mm× 75mm, 80mm× 80mm, 100mm×100mm
|
||
|
Model
|
Height(M)
|
Width(M)
|
Length(M)
|
|
SJ-1(Mil 1)
|
1.37
|
1.06
|
10
|
|
SJ-2(Mil 2)
|
0.61
|
0.61
|
1.21
|
|
SJ-3(Mil 3)
|
1.0
|
1.0
|
10
|
|
SJ-4(Mil 4)
|
1.0
|
1.5
|
10
|
|
SJ-5(Mil 5)
|
0.61
|
0.61
|
3.05
|
|
SJ-6(Mil 6)
|
1.68
|
0.61
|
3.05
|
|
SJ-7(Mil 7)
|
2.21
|
2.13
|
27.74
|
|
SJ-8(Mil 8)
|
1.37
|
1.22
|
10
|
|
SJ-9(Mil 9)
|
1.0
|
0.76
|
9.14
|
|
SJ-10(Mil 10)
|
2.12
|
1.52
|
30.5
|
Hesco Barriers Blast Wall Feature
HESCO defensive barriers , also named as Hesco bastion, Hesco defense wall,Hesco blast wall, Sand cage, Welded gabion box, Defense blast wall,Wire mesh gabion box, Stone cage ,military hesco barrier, hesco barrier wall etc. It is made of a collapsible wire mesh container and heavy duty fabric liner, and used as a temporary to semi-permanent levee or blast wall against . it is widely used for military fortification and flood control.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. bulk in the container
