Quality Factory Manufacturer 358 Security Fence

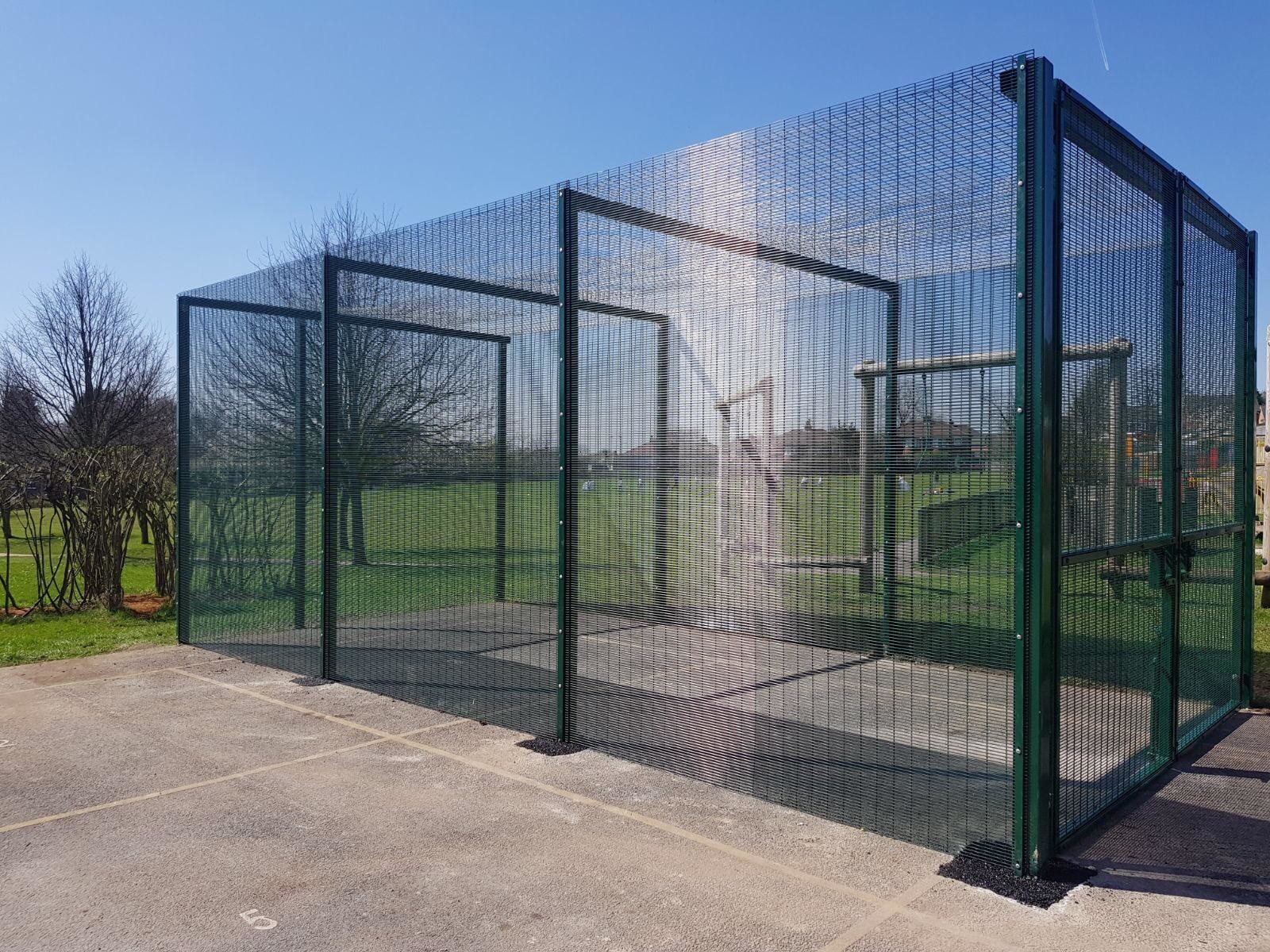

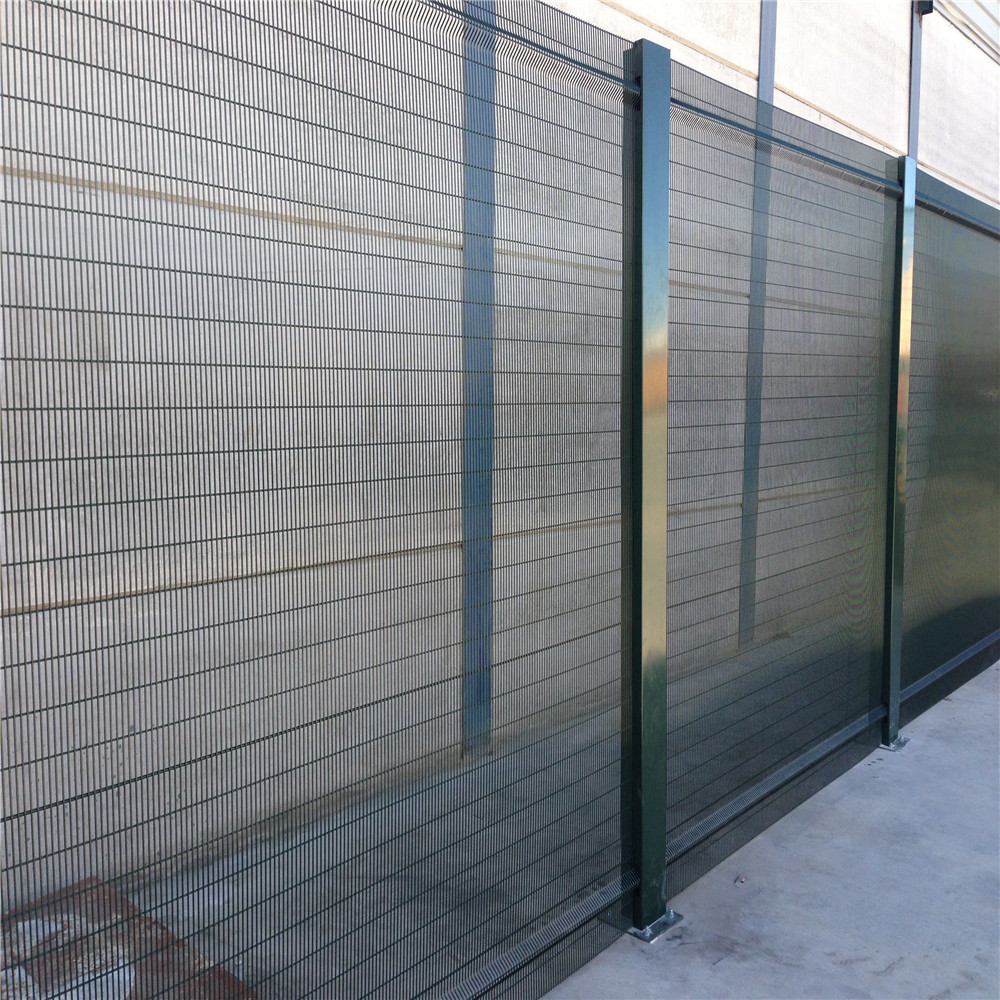

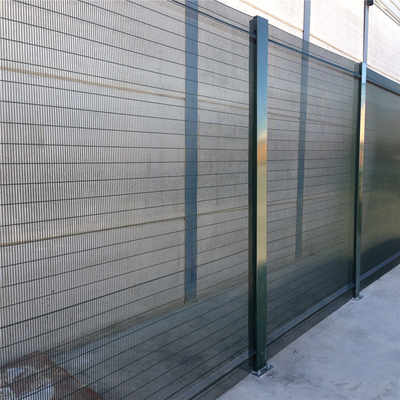

358 High Security Fence
Material: Low Carbon Steel Wire, Stainless Steel Wire, Mild Steel Wire
Specifications:
1. Mesh specification: 76.2mm x 12.7mm welded at each intersection.
2. Horizontal Wires: 4mm diameter at 12.7mm centers.
3. Vertical Wires: 3.5mm diameter at 76.2mm centers.
4. With razor wire on the top of welded fence
5. Panel length: 2500mm, panel height: 2000mm
| Specification of 358 Security Fence | |||||
| Mesh Opening | Wire Diameter | Panel Height | Panel Width | Post Type | |
| 12.7x76.2mm (0.5'' x 3'') |
3/3.5/4mm | 1.2-6m | 2.0-3.1m | Square Post(SHS) 60x60x2.0/2.5/3.0mm 80x80x2.0/2.5/3.0mm |
Rectangular Post(RHS) 40x60x2.0/2.5/3.0mm 40x80x2.0/2.5/3.0mm 60x80x2.0/2.5/3.0mm 80x100x2.0/2.5/3.0mm |
Finishes:
1. Posts are galvanized to BS EN 1461 as standard
2. Panels are Galfan zinc alloy coated as standard
3. Posts and panels powder coated to BS EN 13438 in one of our standard colors at extra cost
4. Powder coating of panels and posts to any other (non standard) BS or RAL color to special order
Application: Railway, heavy industry, prisons, MOD facilities and utility sub-stations
