8x8 Galvanised Steel 5 Bar Livestock Fence Panels

50 sets
MOQ
Negotiable
Price
8x8 Galvanised Steel 5 Bar Livestock Fence Panels
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Livestock Fence Panels
Material: Steel
Shape: Round Tube Welded
Panel Length: 2.1m,3m,4.0m Or As Requirment
Panel Heigh: 1.6,1.7,1.8m
Rails Number: 4/5/6pcs
Link Mode: Lugs And Pin
Packing: Pallet Or Bulk
High Light:

5 bar livestock fence panels

,

8x8 livestock fence panels

,

round tube horse corral panels

Basic Infomation
Place of Origin: China
Brand Name: HGMT
Certification: ISO9001:2008
Model Number: GF138
Payment & Shipping Terms
Packaging Details: 1.packing with wooden pallet 2.bulk on the container
Delivery Time: 20-25days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000meter per week
Product Description

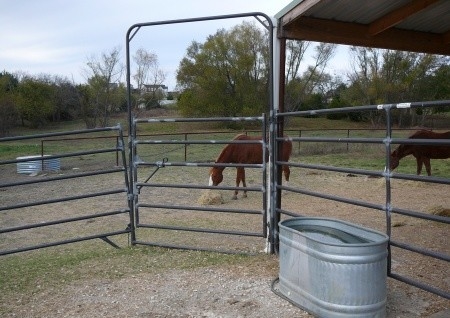

8x8 Galvanised Steel 5 Bar Fence Panel And Farm Gates For Round Horse Pen





Livestock Fence Panels Instruction



.1.8m high with 6 bars(rails) or 1.6m high with 5 bars(rails).Complete with Caps & Foot plates.Holes for ground pin on one leg of each panel.2 joining pins supplied of each panel.

2. Portable: easy fast to handle (set up, remove and put down), makes the fence panel very flexible.
3. Robust: interlocking system makes the fence very stable; quality steel and fully welding makes the panel more stronger; heavy
duty and anti-broken; high zinc or PVC coated make the fence durable.
4. Environment Protection: connection with welded to bracket lugs and joining pins, no need to dig holes or lay foundations. And it benefit grassland protection.
5. Livestock Protection: no sharp edge, very smooth welding spot finish.
6. Cost-effective: give your corral years of service and minimal maintenance at a low initial cost.

.



Livestock Fence Panels Specifications

Model
Width(mm)
Height(mm)
HGMT-800
830
1170
HGMT-1000
950
1170
HGMT- 1200
1200
1170
HGMT- 1500
1500
1170
HGMT- 1800
1800
1170
HGMT- 2400
2400
1170
HGMT- 3600
3600
1170
HGMT-4200
4200
1170
Mesh size: 100 x 200 x 5.0 mm
Tube shape: round, square, oval
Tube diameter: round- 32mm, 42mm, 45mm, 33.4mm; oval- 60X40mm
Tube thickness: 1.5mm, 2.0mm, 3.0mm
The size also can customized by customers' requirement.



Livestock Fence Panels Processing



Manufacturing process of cattle panels cheap galvanized temporary mobile fence panel manufactuer
Material ,Cutting The Pipe,Welding The Pipe,Make The Weld Spots Clean,Anti Rust Paint The Welding Sports,After The Silver Paint Drying, The Panels Packed On Steel Pallet,Panels Loaded In Container





Packing terms



1. Each model packed with bag and put in the mailbox.
2. By Express is available (door to door):Fedex / DHL/UPS/TNT/EMS,etc.
3. By Air or sea for batch goods for FCL (Port receiving)



8x8 Galvanised Steel 5 Bar Livestock Fence Panels 0

8x8 Galvanised Steel 5 Bar Livestock Fence Panels 1
