Galvanized Livestock Prevent Hinge Joint Page Wire Farm Field Fence
Farm fence Detail

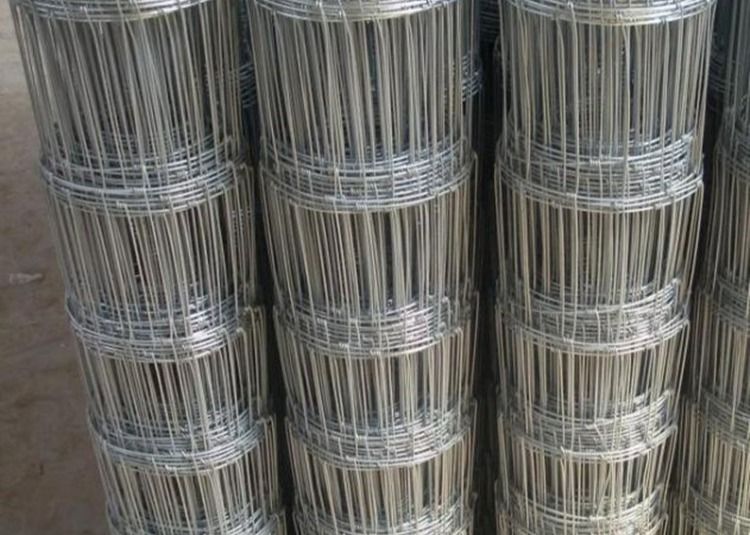

Field fence is made of hot dipped galvanized wire, Outer and inner wire diameter is different, and outside wire with high t/s.
This knot acts as a hinge that gives under pressure, then springs back into shape. This provides easy installation because the hinge “gives” while retaining full height for continuing protection and good looks. Vertical wires are individually cut and
wrapped for maximum strength and flexibility.
Specifications of Farm Fence
| No. |
Type |
Specification |
Weight | Dia.(top&bottom) |
Diameter (inner) |
Diameter (roll) |
| kg | mm | mm | mm | |||
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2 | 250 |
| 2 | 8/150/813/50 | 89+89+102+114+127+140+152 | 20.8 | 2.5 | 2 | 250 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2 | 250 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2 | 250 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2 | 250 |
| 6 | 9/150/991/50 | 89+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2 | 250 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2 | 250 |
| 8 | 10/150/1194/50 | 89+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2 | 250 |
| 9 | 10/150/1134/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 | 250 |
| 10 | 11/150/1422/50 | 89+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 | 250 |
Features of deer fence:
1.With innovative and firm structure, flat surface, uniform opening.
2.Good flexibility, good resistance against pressure, hit, corrosion and weather.
3.Neither loose nor break even when partial cutting or hit occur.
4.Tight rolls and large loading, suitable for exporting.
5.Less weight, easy transport, fast installation, easy maintenance.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
