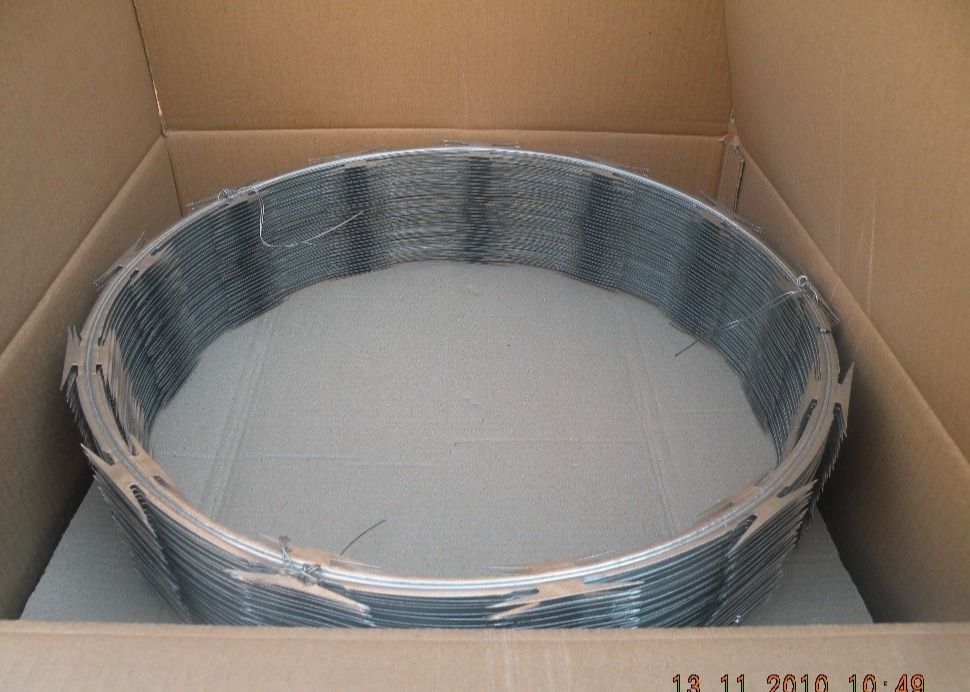

BTO-22 Hot Dipped Galvanized Concertina Razor Wire
Product Description
It is a kind of modern security fencing materials with better protection and fencing strength made of hot-dipped galvanized steel
sheets or stainless steel sheets.
Specifications
|
Razor Wire Size Specifications
|
|||||
|
Peference Model
|
Thickness (mm)
|
Wire Diameter (mm)
|
Barb Length
(mm) |
Bard Width
(mm) |
Bard Spacing
(mm) |
|
BTO-12
|
0.5±0.05
|
2.5±0.1
|
12±1
|
15±1
|
26±1
|
|
BTO-15
|
0.5±0.05
|
2.5±0.1
|
18±1
|
15±1
|
33±1
|
|
BTO-22
|
0.5±0.05
|
2.5±0.1
|
02±1
|
15±1
|
34±1
|
|
BTO-28
|
0.5±0.05
|
2.5±0.1
|
28
|
15
|
45±1
|
|
CBT-30
|
0.5±0.05
|
2.5±0.1
|
30
|
18
|
45±1
|
|
CBT-60
|
0.6±0.05
|
2.5±0.1
|
60±2
|
32±1
|
100±1
|
|
CBT-65
|
0.6±0.05
|
2.5±0.1
|
65±2
|
21±1
|
100±1
|
|
Outside Diameter
|
No. of Loops
|
Standard Length per Coil
|
Razor Type
|
Notes
|
|
450mm
|
33
|
7M-8M
|
CBT-60, 65
|
Single Coil
|
|
500mm
|
56
|
12M-13M
|
CBT-60, 65
|
Single Coil
|
|
700mm
|
56
|
13M-14M
|
CBT-60, 65
|
Single Coil
|
|
960mm
|
56
|
14M-15M
|
CBT-60, 65
|
Single Coil
|
|
450mm
|
56
|
8M-9M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
500mm
|
56
|
9M-10M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
10M-11M (3clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
600mm
|
56
|
8M-10M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
700mm
|
56
|
10M-12M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
800mm
|
56
|
11M-13M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
900mm
|
56
|
12M-14M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
960mm
|
56
|
13M-15M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
|
980mm
|
56
|
14M-16M (5clips)
|
BTO-10, 12, 18, 22, 28, 30
|
Cross Type
|
Feature
Razor wire tape is widely used in gardens, hospitals, industrial and mining enterprises, prisons, border posts, detention centers, government building or other security facilities.
Also used for division of railway, highway, agricultural fencing, etc.
Packing terms
Waterproof Paper +Woven Bags or carton
Usually one 20 feet container can load 25 tons razor wire tape.
