Hot Dipped Galvanized Fixed Knot Steel Wire Mesh Sheep Farm Fence Netting
Farm fence Detail

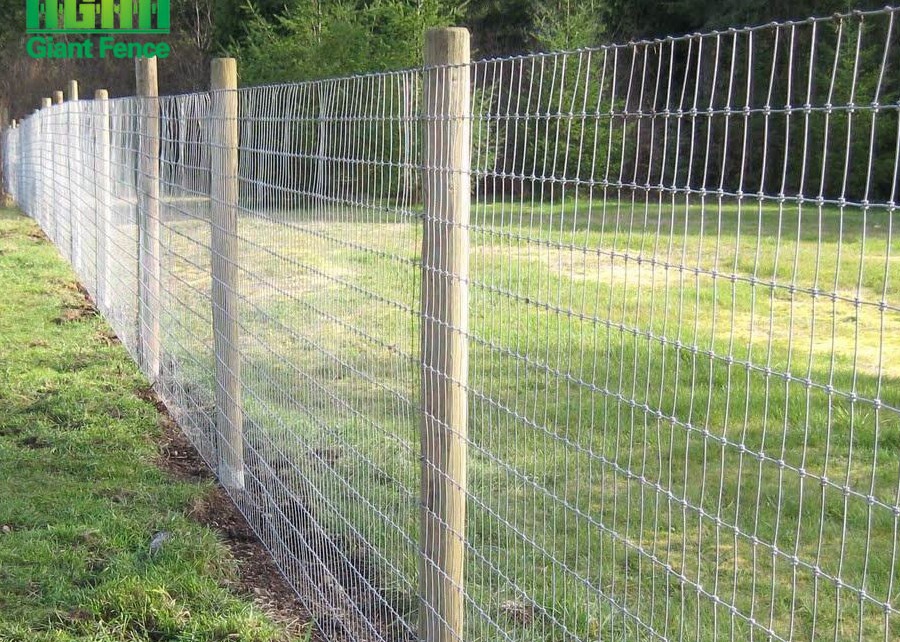

Hinge joint fence is also known as grassland fence, cattle fence, field fence, which is made of hot-dipped galvanized steel wire, offer high strength and tensile strength, provide safety fencing against fierce striking of cattle, horse or goats. Knotted wire mesh fences make an ideal fencing material for grasslands husbandry.
Specifications of the field fence
|
Product Name:
|
farm fence
|
||
|
Material:
|
Galvanized iron wire
|
||
|
Zinc coating
|
normally 60-100g per square meter, max 230-240g per square
Coating |
||
|
Diameter
|
1.8-2.5mm(, inner wire ), 1.8-3.5mm( outer wire)
|
||
|
Height
|
0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m,1.8m,2m,2.4m
|
||
|
Length
|
25m-200m
|
||
| No. | Type | Specification | Weight(kg) | Top and Bottom Wire Dia.(mm) | Body Wire(mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102++114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102++114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102++114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
| Note:The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm). | |||||
Application
1. For animals feeds
2. Farm places
3. Cattle
4. Horse
5. Sheep
Feature
Field fence offers high strength against the violent clashing of horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
Good flexibility; good pressure resistance, weather resistance properties, long service time. Even the cut pieces will not deform under pressure.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
