Fall Prevention Safety Temp Roof 50X100mm Edge Protection Barriers Extension

50 sets
MOQ
Negotiable
Price
Fall Prevention Safety Temp Roof 50X100mm Edge Protection Barriers Extension
Features Gallery Product Description Request A Quote
Features
Specifications
Product Name: Edge Protection Barriers
Surface: Powder Coated
Color: Blue, Orange, Red
Mesh Opening: 50X100mm, 50X200 Mm,55*200mm
Size: 1150*2600mm,
Application: Fall Protection For Rail Infrastructure
High Light:

50X100mm Edge Protection Barriers

,

Edge Protection Barriers 50X100mm

,

1.15x2.6m Edge Protection Barriers

Basic Infomation
Place of Origin: ISO9001
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF065
Payment & Shipping Terms
Packaging Details: 1.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 7000 pieces/month
Product Description

Best Price Fall Prevention Safty Temporary Roof Edge Protection Extension Barrier







Edge Protection Barriers Description



Edge protection fence also named edge protection Barrier,Temporary edge protection,Safety Edge Barrier,edge protection is fully used in construction under building to protect people.

This simple to install system offers site personnel maximum protection on the perimeter of construction slabs, around stair and lift wells, excavations etc. The removable panels, with built-in kickplates, and post system is easily transported, installed removed and stored.

.



Edge Protection Barriers Specification



Wire diameter

5-8mm

Opening size

50*200mm

Panel size

1100*1700/1100*2400mm/1300*1300mm/1300*2200mm

Post diameter/thickness

48*1.5/2.0mm

Surface treatment

Galvanized+powder coated / galvanized+painted /black +powder coated

Specifications can be made according to your requirements




Feature Of Edge Ptotection Barrier



1.The Raw Material is Low-Carbon Steel Wire.
Welded By Heavy Wire, with 90 Degree on the top and bottom, the piece of toe board was welded on the bottom of the Edge protection Fence to Protect Samll Stone Falling ,avoid hurting somebdoy. It also has continous Wire, no cut wire, make the Temporary Portection Fence Smooth, Flat and Straight.
2.Bending on the Top of Edge Protection Fence.

There is a 90 Degree Bending on the top of Temporary Edge Protection Fence, It is straight, make the fence flatling, have high shock strength to protect Peoples.
3.make the Temporary Portection Fence Smooth, Flat and Straight.
Powder Coated Surface Treatment is more bautiful and anti-rust, Make its long using life to save the cost
4.The Edge Safety Protection Fence can recycle many times.
Bending on the bottom of Edge protection Fence
Toe Board on the front of Edge Protection Fence
The Toe Board on the bottom of Edge Protection Fence is welded on the Bottom Wire, to Prevent Small Stone falling ,Avoid Hurting Somebody.

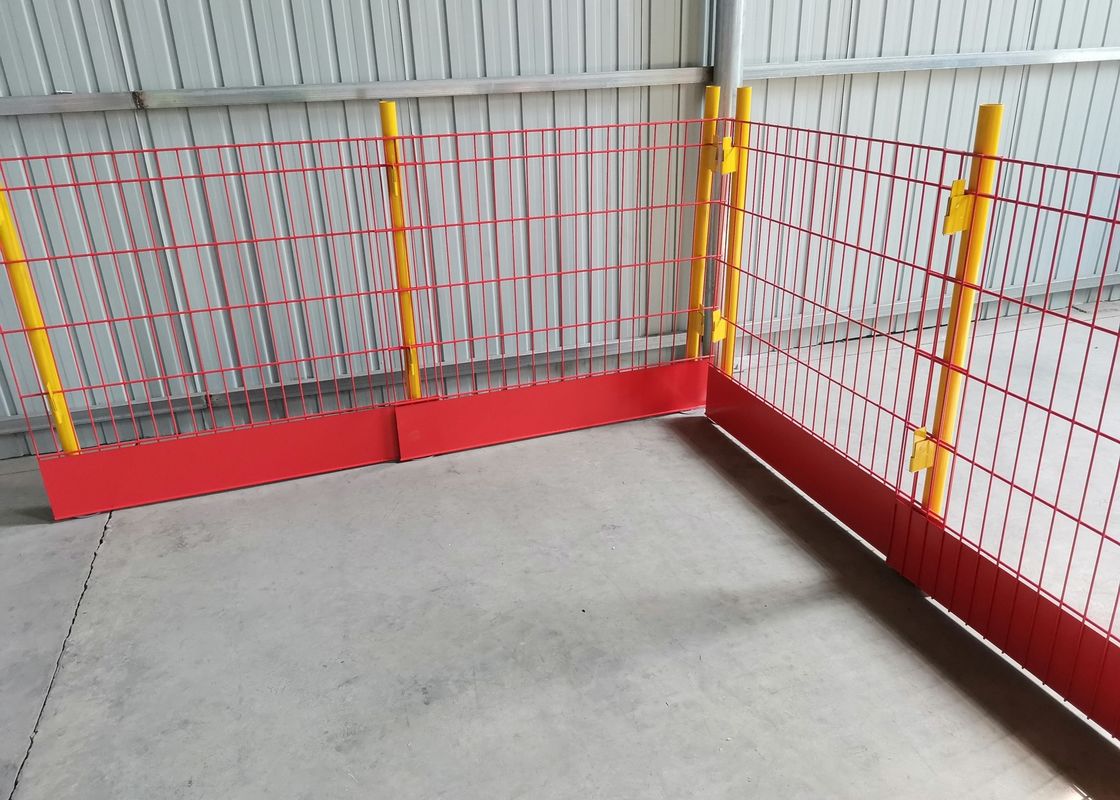

Edge Protection Barriers Product Details



Fall Prevention Safety Temp Roof 50X100mm Edge Protection Barriers Extension 0
