Cheap Price Galvanized Stainless Steel Gabion Basket Welded Rock Garden Fence Gabion For Retaining Wall
Gabion Mesh Basket Wall Box Details
Welded Gabion Baskets Retaining Structures beats the competition with faster erection time and baskets that last longer and keep their shape. Our weld gabions are made from prefabricated Class III zinc-coated 8, 9 or 11 gauge welded wire mesh fabric with a 50mmX50mm or 100mmX100mm spacing, and may be field cut to fit curves, culverts, or angles.
Gabion Mesh Basket Wall Box Specifications:
|
PRODUCT ITERM NO. |
HEIGHT |
WIDTH |
LENGTH |
CELLS NO. |
|
PG MIL1 |
54''(1.37M) |
42''(1.06M) |
32'9''(10M) |
5+4=9 cells |
|
PG MIL2 |
24'' (0.61M) |
24''(0.61M) |
4'(1.22M) |
2 cells |
|
PG MIL3 |
39''(1.00M) |
39''(1.00M) |
32'.9''(10M) |
5+5=10 cells |
|
PG MIL4 |
39''(1.00M) |
60''(1.52M) |
32'.9''(10M) |
5×2+5×2=20 cells |
|
PG MIL5 |
24''(0.61M) |
24''(0.61M) |
10'(3.05M) |
5 cells |
|
PG MIL6 |
66''(1.68M) |
24''(0.61M) |
10'(3.05M) |
5 cells |
|
PG MIL7 |
87''(2.21M) |
84''(2.13M) |
91'(27.74M) |
5+4+4=13 cells |
|
PG MIL8 |
54''(1.37M) |
48''(1.22M) |
32'.9''(10M) |
5+4=9 cells |
|
PG MIL9 |
39''(1.00M) |
30''(0.76M) |
30'(9.14M) |
6+6=12 cells |
|
PGMIL10 |
87''(2.21M) |
60''(1.52M) |
100'(30.50M) |
5+5+5+5=20 cells |
|
PG MIL11 |
48''(1.22M) |
12''(0.30M) |
4'(1.22M) |
2 cells |
|
PG MIL12 |
84"(2.13M) |
42"(1.06M) |
108"(33M) |
5+5+5+5+5+5=30 cells |
|
PG MIL19 |
108''(2.74M) |
42"(1.06M) |
10'5'(3.18M) |
6 cells |
Gabion Mesh Basket Wall Box Applications

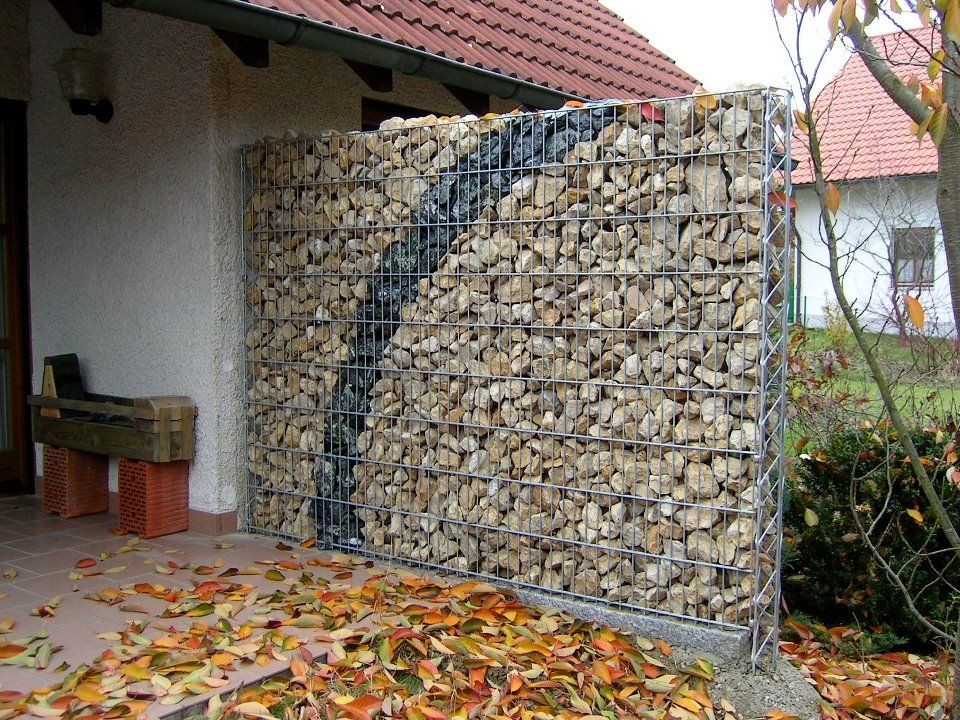

Welded gabion box is widely used in retaining wall structures, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are quicker and simpler to install than woven mesh gabions.

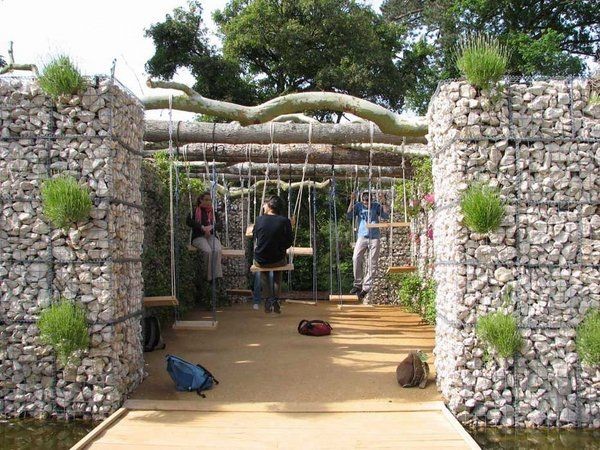

In more applications, the welded garden gabion structure can be made into different sizes and shapes for decoration applications. They can be made into gabion pot, staircase, table and bench, postbox. It can also be used to form particular landscapes, such as waterfall, fireplace and decorative wall.
Gabion Fence Basket Wall Box Packing:
|
Packing |
1. on pallet 2. mail order packing |
|
Delivery |
10-35days based on different order quantity |
