Chain Link Fence Description
Using high quality iron rod as raw material, galvanized, or galvanized and PVC/PE coating,
It can resist the corrosive and ultraviolet radiation very strongly.
The thickness of PVC powders coating usually can reach above 1.0mm.
The fence obtains very strong powers to resist the concussion.
Generally, the smaller the diamond size, the stronger the fence. The ends of the fence usually have two kinds. One is knuckles barb, the other one is twisted barb.
Chain Link Fence Specification
| Wire Dia. | Mesh | Length | Height | Post's Height | Suitable Post |
| 1.8mm 2.0mm 2.5mm 3.0mm 3.5mm 4.0mm 4.5mm |
35*35mm 40*40mm 50*50mm 60*60mm 75*75mm 100*100mm |
10m 15m 20m 25m 30m or longer |
1000mm 2000mm 1500mm 1800mm 2000mm 2500mm 3000mm 4000mm 5000mm |
1500mm 1700mm 2000mm 2300mm 2500mm 3000mm 4000mm 5000mm 6000mm |
Round Tubes: Dia 40, 48, 50 ,63, 76mm Mushroom Post Model No. XLFP-03 "Y" Post Model No. XLFP-07 "T" Post Model No. XLFP-08 Or with the frame to install with the post. |
1.High Anti-Corrosion:
Using high quality iron rod as raw material, galvanized, or galvanized and PVC/PE coating, it can resist the corrosive and ultraviolet radiation very strongly. At the top, it can use barbed wire or razor wire, to enlarge the safety.
| Surface Treatment | Min. | Max. |
| Electric Gal. | Electric Gal. | 25g/m2 |
| Hot dipped Gal. | 30g/m2 | 366g/m2 |
| PVC/PE dipped coating | 400 microns | 600 microns |
2.Design Advantage:
The wires are linked, it is easy to produce any width and length. The Max. Height can till 5m or more, the length can be adjusted as the needs. This kind of mesh is not easy to climb, and suitable for using large quantity. The post used is very portable. It reduces the cost of the whole fence and can last long time.
3.Range of application:

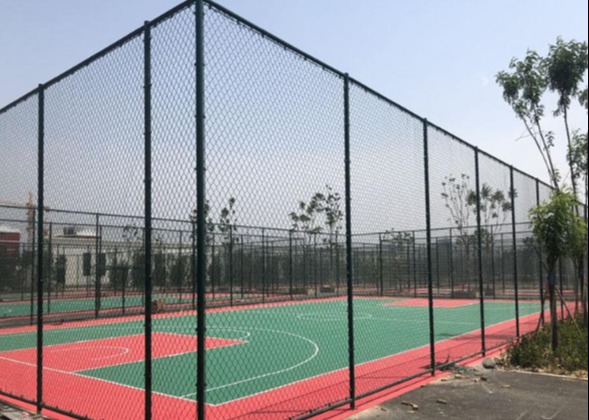

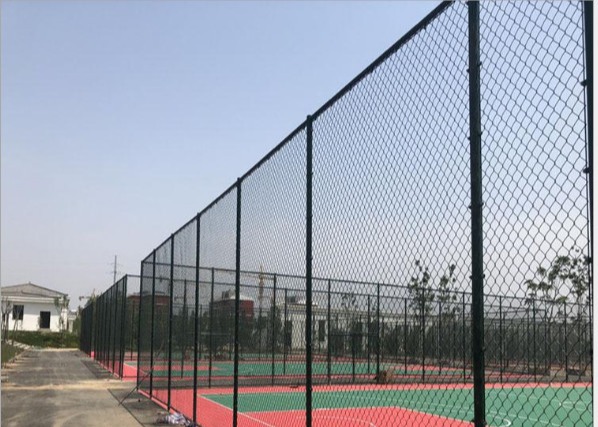

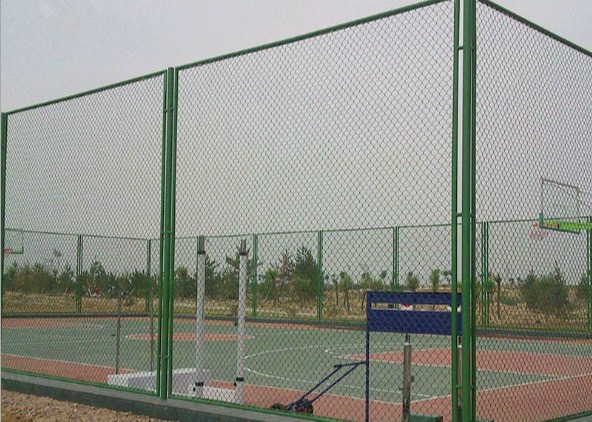

- Playground (tennis ground, football ground, basketball ground)
- Building site (temporary fence, Fence etc.)
-Courtyard, Park, lawn, Forest protecting
-Garden Fence, Farm, Barrier, Security Protection
