Outdoor Garden Powder Coated Specification Galvanized BRC Welded Mesh Fence
Welded Wire Garden BRC Fence description

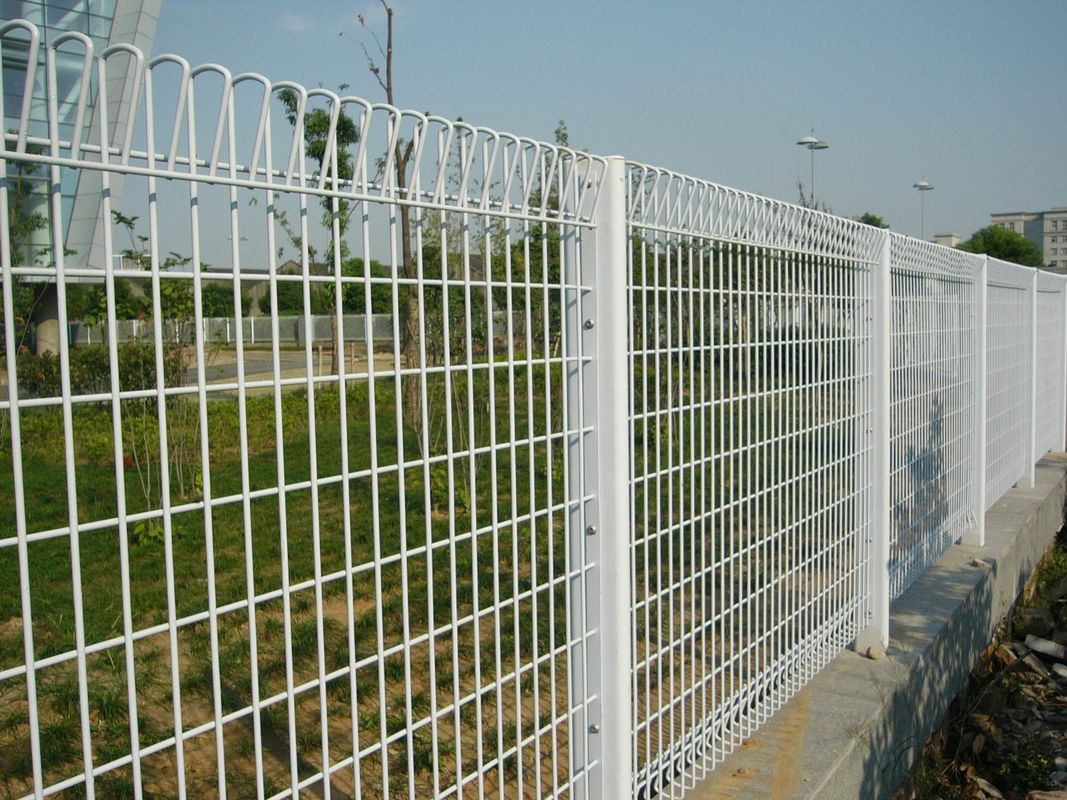

Roll Top Fence is a mesh fence system that has a roll top to enhance the safety and rigidity of ence system. The roll top mesh fence system is most friendly system for install workers due to there are no any burrs or sharp, raw edges in the whole sheet of mesh fence.
Welded Wire Garden Fence Specification
|
Line wire x |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm |
2m 2.2m 2.4m 2.5m 2.8m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 3.PE coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 |
Welded Wire Garden Fence Post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40x40mm 50x50mm 60x60mm |
1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
|
Round post
|
Φ48mm Φ60mm Φ75mm |
1530mm | 1550mm | 2000mm | ||
| 1830mm | / | 2400mm | ||||
| 2030mm | / | 2500mm |
Welded Wire Garden Fence Benefits
Welded Wire Garden Fence Packing
fence panel in bulk, post packed with steel pallet, clips and post cap packed with carton box
Outdoor Garden Powder Coated Specification Galvanized BRC Welded Mesh Fence
