Metal Powder Coating Roll Top And Bottom Welded Wire Garden Fence
Roll Top Fence Brief Introduction

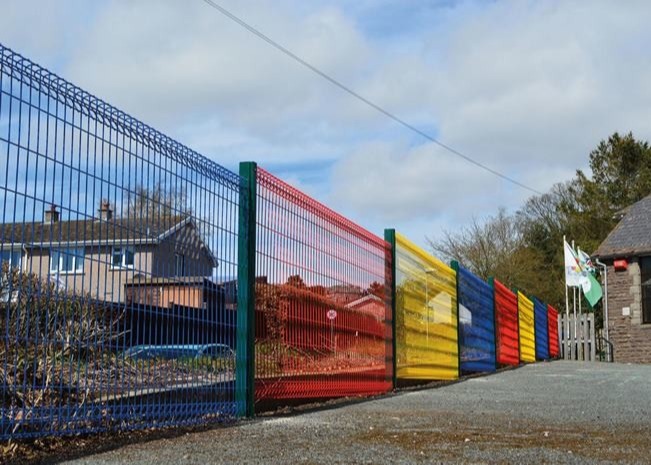

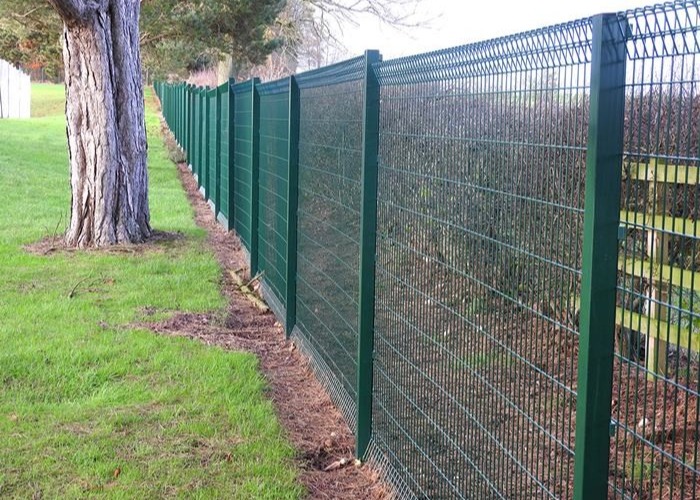

The rolling top guardrail is a kind of welded mesh whose upper and lower edges are all rolled, which has good rigidity.
Roll-top fence, also known as BRC fence, combines user-friendly top and bottom "triangular" edges
Strengthen the safety and rigidity of the fence.Recommended for use in parks, schools and playgrounds
Specifications of panels
|
Line wire x |
Hole Size | Panel Length | Panel Height | Bending No. | Common Color | Surface treatment |
|
4x4mm 4.5x4mm 4.5x4.5mm 5x4mm 5x5mm |
50X100mm 50X200mm 55X200mm 75X150mm 100X300mm |
2m 2.2m 2.4m 2.5m 2.8m |
830mm | 2 |
Green RAL6005 Grey RAL7016 Brown RAL8019 Black RAL9005 White RAL9010 |
1.Hot-dipped galvanized after black wire welded 3.PE coated after galvanized wire welded |
| 1030mm | 2 | |||||
| 1230mm | 2 | |||||
| 1530mm | 3 | |||||
| 1830mm | 4 | |||||
| 2030mm | 4 |
Detail of parts
Details of the post
| Post view | Size | Thickness | Panel height | Base post | Normal post | Surface treatment |
| Square post |
40x40mm 50x50mm 60x60mm |
1.5mm 1.8mm 2mm 2.5mm |
830mm | 850mm | 1200mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
| 1030mm | 1050mm | 1400mm | ||||
| 1230mm | 1250mm | 1600mm | ||||
|
Round post
|
Φ48mm Φ60mm Φ75mm |
1530mm | 1550mm | 2000mm | ||
| 1830mm | / | 2400mm | ||||
| 2030mm | / | 2500mm |
Installation
Drawing of the fence
Packing
