Different Sizes Retaining Walls Erosion Resistance Gabion Industrial Rock Basket Gabion Wall
Gabion Wall Details
Gabion refers to PVC coating on zinc coating wire fabric containers that comes in variable sizes with rocks filling to form a permanent structure. And the Green Gabion Mattress, also known as Gabion Mattress System by Fibromat makes a great Earth Retention System caters for slopes erosion control, toe and river bank protection, maximizing permeability on the structure while providing reinforcement and grass establishment.
Gabion Mattresses serves as a retaining wall, providing various prevention and protection works such as landslide prevention, erosion and scour protection as well as various type of hydraulic and coastal protection for river, sea and channel protection.This Gabion Mattress System is made up of a specially designed composite in order to maximize its performance through three phases of vegetative process from unvegetated to vegetation establishment up to vegetation maturation.
Gabion Fence Specifications:
Gabion Specification :
Gabion material: galvanized wire, Zn-Al(Galfan) coated wire/PVC coated wire
Gabion wire diameter: 2.2mm,2.7mm,3.05mm etc.
Gabion sizes: 1x1x1m,2x1x0.5m,2x1x1m,3x1x1m,3x1x0.5m,4x1x1m,4x1x0.5m,4x2x0.3m,
5x1x0.3m,6x2x0.3m etc.,customized is available.
Gabion mesh size:60*80mm,80*100mm,100*120mm,120*150mm,or customized
Gabion application: can be widely used in flood controling,retaining wall,river bank protection,slope protection etc.
|
Material |
Galvanized wire |
|||
|
Surface treatment |
Hot dipped galvanized (Zinc Coated) |
|||
|
Galfan coated: 95% Zinc + 5% Aluminum, 90%Zinc +10% Aluminum |
||||
|
Zinc(galvanized) + PVC Coated (Gray or Green) |
||||
|
Gabion Basket/Gabion Box/Gabion Mesh/Gabion Cage Specification |
||||
|
Wire diameter |
2.0-4.0mm |
|||
|
Mesh opening |
80 x 100mm |
90 x 110mm |
100 x 120mm |
60 x 80mm etc. |
|
Dimension |
1x0.5x0.5m, 1x1x1m, 2x1x0.5m, 2x1x1m, 3x1x0.5m, 3x2x0.3m, 3x2x0.17m, 3x1x1m, 4x1x0.5m, 4x1x1m, 4x2x0.3m, 5x1x1m, 5x1x0.5m, |
|||

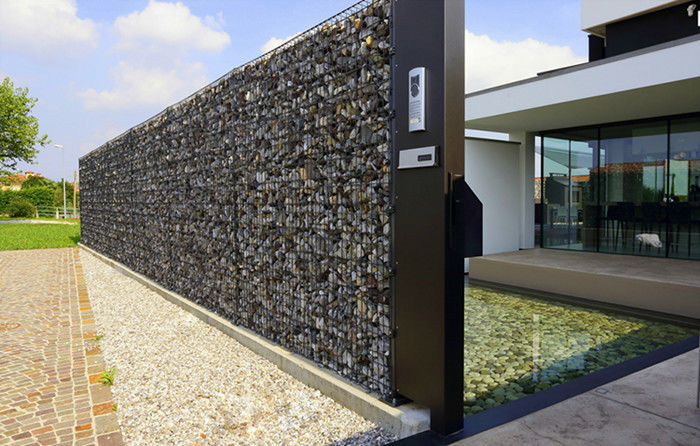

Gabion Fence Applications
Gabion Fence can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
Gabion applications:
1. Control and guide of water or flood
2. Flood bank or guiding bank
3. Preventing of rock breaking
4. Water and soil protection
5. Bridge protection
6. Strengthening structure of soil
7. Protection engineering of seaside area.
