PVC Coated 358 Anti Climb Security Fence Garden Fence
358 Fencing Detail

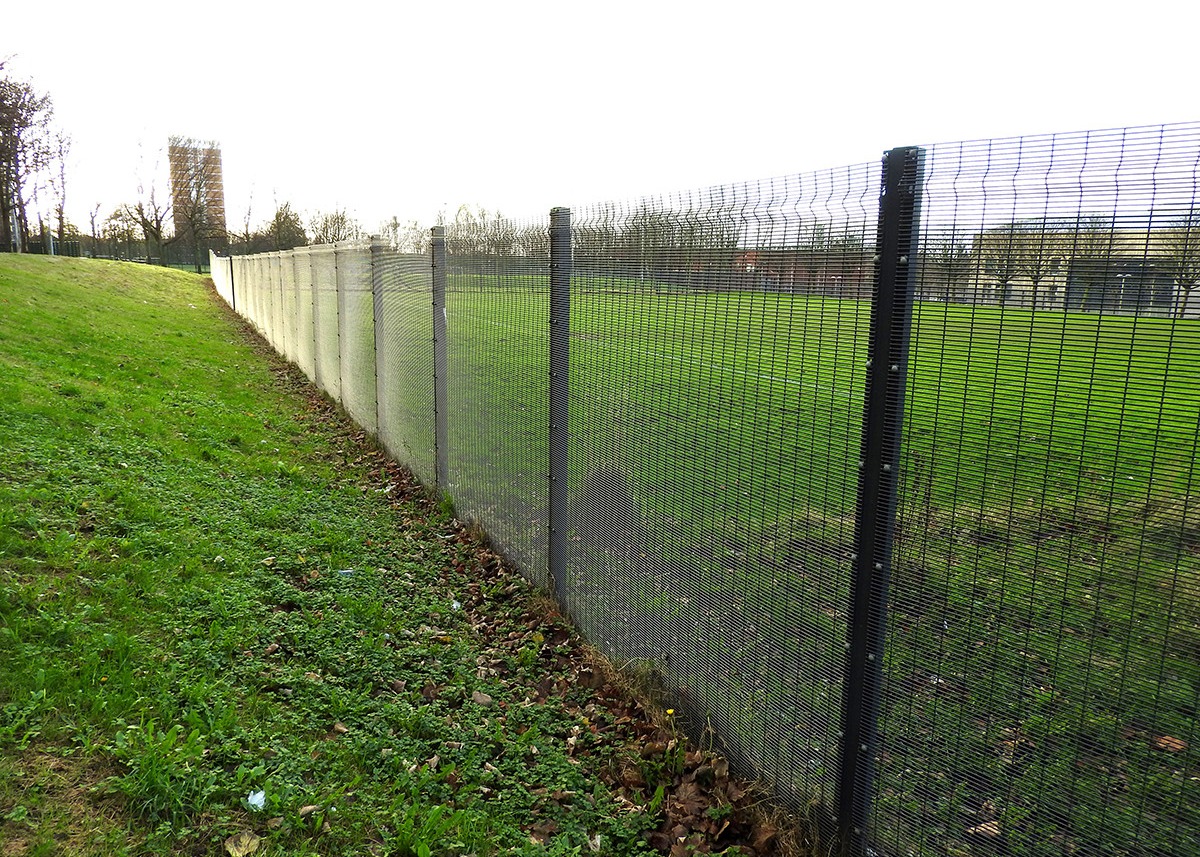

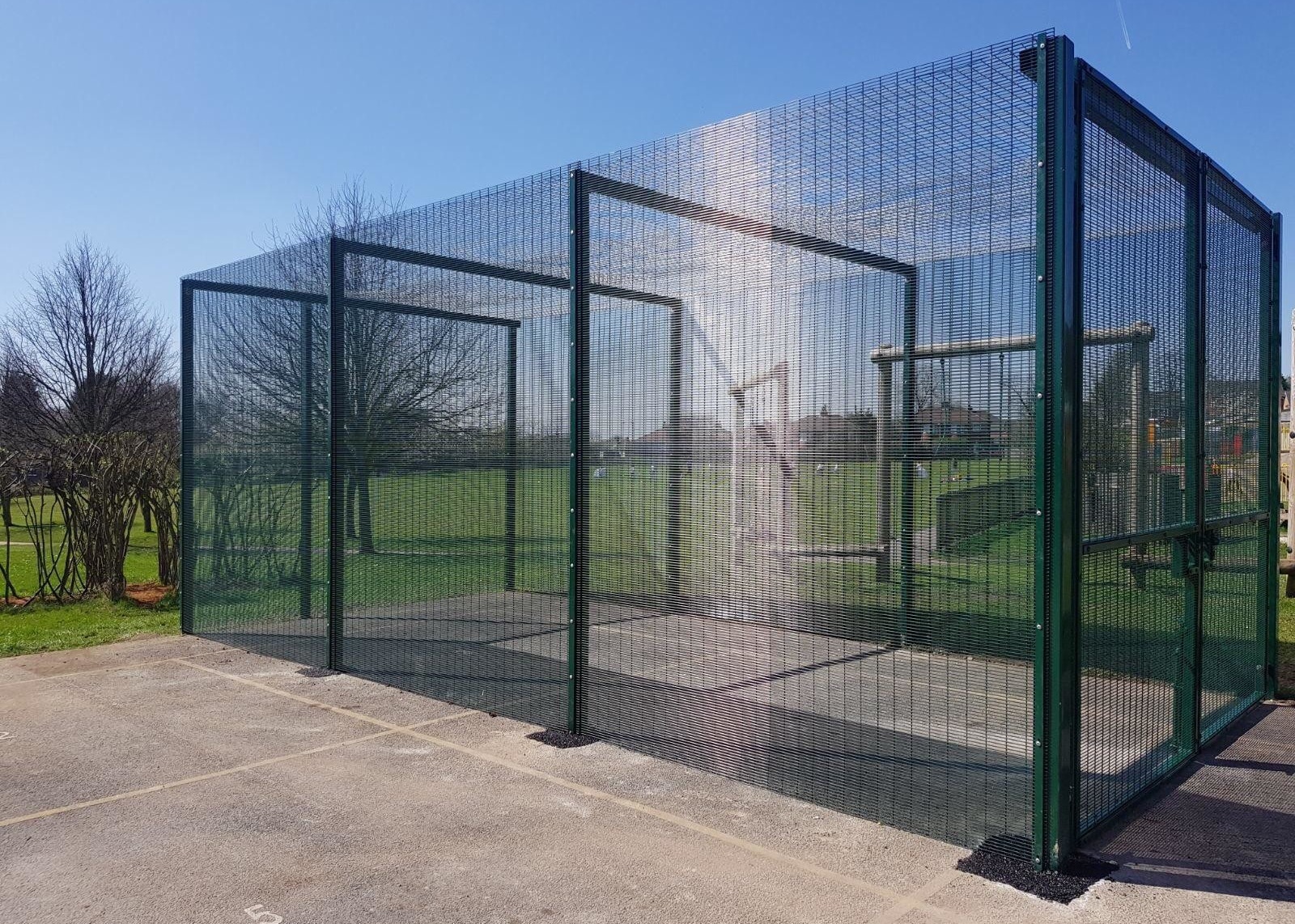

High security fencing , Prison Mesh Fencing or 358 Mesh Fence as it is also known, is a highly robust steel Mesh Fencing system.
It consists of horizontal and vertical mesh wires which are positioned close together to prevent people from fitting their fingers
through the apertures, to ultimately climb the fencing.
|
Mesh
|
Wire Thickness
|
Surface Treatment
|
Panel Width
|
Height
|
|
76.2mmx12.7mm
|
wire: 3.0mm or 4.0mm
|
Glavnized and electrostatic polyester powder coated or hot dipped galvanized
|
2.0m or 2.5m
|
2.0m 2.2m 2.4m 3.0m
|
|
Post type of 358 fence/ high security fence
|
||||||
|
Item
|
Size
|
Thickness
|
Surface Treatment
|
Length
|
Height
|
Rain hat
|
|
Square post
|
60mmx60mm 80mmx80mm
|
2.0mm, 2.5mm, 3.0mm
|
Galvanized and electrostatic polyester powder coated or hot dipped galvanized
|
On the basis of panel height
|
2.5m, 2.8m, 3.0m, 3.7m
|
Plastic or Metal
|
|
Rectangle Post
|
60mmx80mm
|
|||||
|
C post
|
60mmx80mm
|
|||||
Application
1 Bridge anti-climb guarding & guard safety screening
2 Sub-station Security Fencing
3 Psychiatric hospital security fencing
4 Prison Security Fencing
5 Factory Machine guards
6 Walkway security fencing
7 Airport security fencing
Packing terms
1>There is rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels
2>There is 4 metal corners to keep the pallet more strong.
3>There is metal plate under the plastic bandage to reduce the apressure of fence panels
4>There is wooden plate at the top of fence panel which can protect the fence panels from being crushed by other pallets.
