Hinge Joint Field Fence Electric Wire Sheep Cattle Farming
Farm fence Detail
Farm fence is a common fence that is cost-effective, cheap, and easy to install. Farm fence is also named as Grassland Fence ,Electric Fencing,Horse Fence,Sheep Fence,Woven Wire ,Field Fence, stock fencing, cattle fence,hinge joint field fence
Specifications of Farm Fence
| No. |
Type |
Specification |
Weight | Dia.(top&bottom) |
Diameter (inner) |
Diameter (roll) |
| kg | mm | mm | mm | |||
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2 | 250 |
| 2 | 8/150/813/50 | 89+89+102+114+127+140+152 | 20.8 | 2.5 | 2 | 250 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2 | 250 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2 | 250 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2 | 250 |
| 6 | 9/150/991/50 | 89+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2 | 250 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26 | 2.5 | 2 | 250 |
| 8 | 10/150/1194/50 | 89+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2 | 250 |
| 9 | 10/150/1134/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2 | 250 |
| 10 | 11/150/1422/50 | 89+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2 | 250 |
Features of deer fence:
1) Coated with heavy zinc or PVC coating for long-lasting use

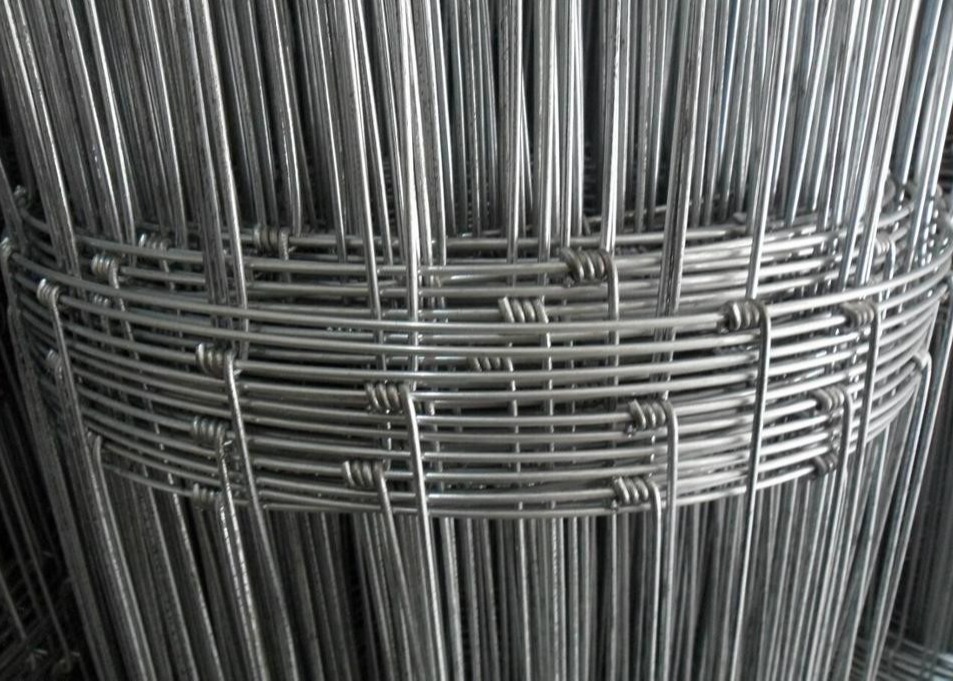

2) Hinge joint knot, stronger and firmer structure.
3) Wire tension curve to keep fence flexibility in changing weather.
4) Extra strong top and bottom wire lines.
5) Higher tensile wire, more stronger.
6) Easy maintenance, short installation period, save material and labor cost.
7) Less weight, small volume, easy for transport.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
