Building Construction Site Flat Metal Welded Edge Protection Barriers

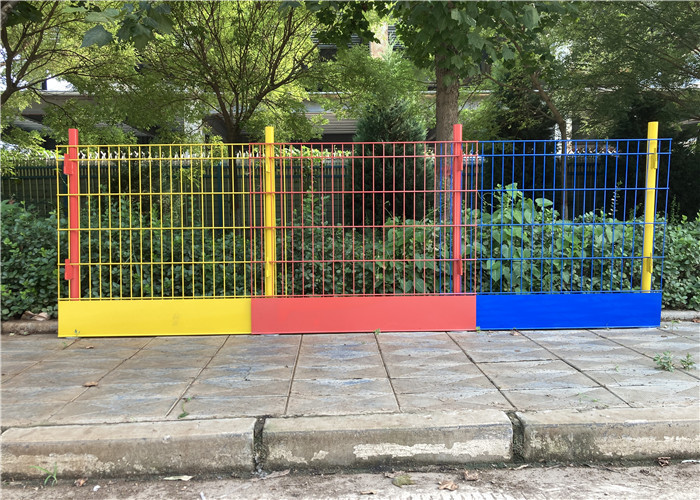

Edge Protection Barrier description
Edge protection barriers are fitted with unique features that make them market leaders as these clever barriers incorporate guardrails, toeboards and debris mesh into one single lightweight steel mesh barrier.
Edge Protection Barrier Fence also named edge protection fence,edge protection is fully used in construction under building to protect people.
Specification Of Edge Protection Barrier
| Type of Edge Protection Barriers | |||
| Type | Type 1 | Type 2 | Type 3 |
| Weight | 9Kg | 16Kg | 18Kg |
| Length | 1500mm | 2000mm | 2500mm |
| Height | 1300mm | 1400mm | 1500mm |
| Finish | Gaiv. wire+Powder coat | ||
| Material | Metal | ||
| Wire diameter | 4.0*5.0mm/6*5mm/8*6mm | ||
| Mesh size | 75*75mm/50X100mm,50X200mm | ||
| Color | Red, yellow, bule, white, Support customization | ||
Advantages of Edge Protection Barrier
1. Reinfored side bars for enhanced durability
2. Returned top edge with no sharp edges

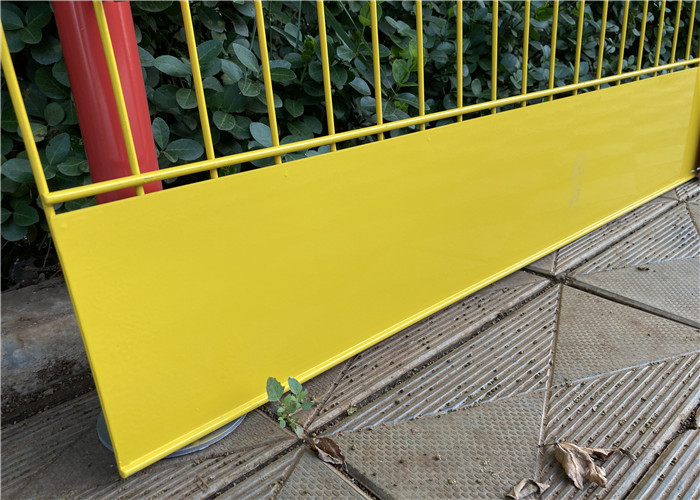

3. Closed and returned toeboard for greater debris containment
4. Steel mesh protection with impact-absorbing capacity
Application Of Edge Protection Barrier
Easy to install steel edge protection barrier with impact-absorbing capacity, welds that can withstand a force of 500kg and full debris containment toe board.Suitable for Live edge protection; Slab edge protection; Debris guard barrier; Structural steelwork protection;Safe site walkway.
Edge protection system is incorporated into the manufacturing process by placing integrated connection points into the structural frame to accommodate Post Assemblies which support the steel mesh guardrail barrier. Edge protection is fixed to the wall panels pre-crane lift or alternatively from MEWP’s and once installed, provides a continuous guardrail system, for progressive storey lifts, greatly reducing the risk of the installers falling from height.
