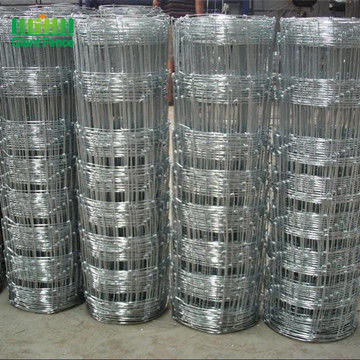

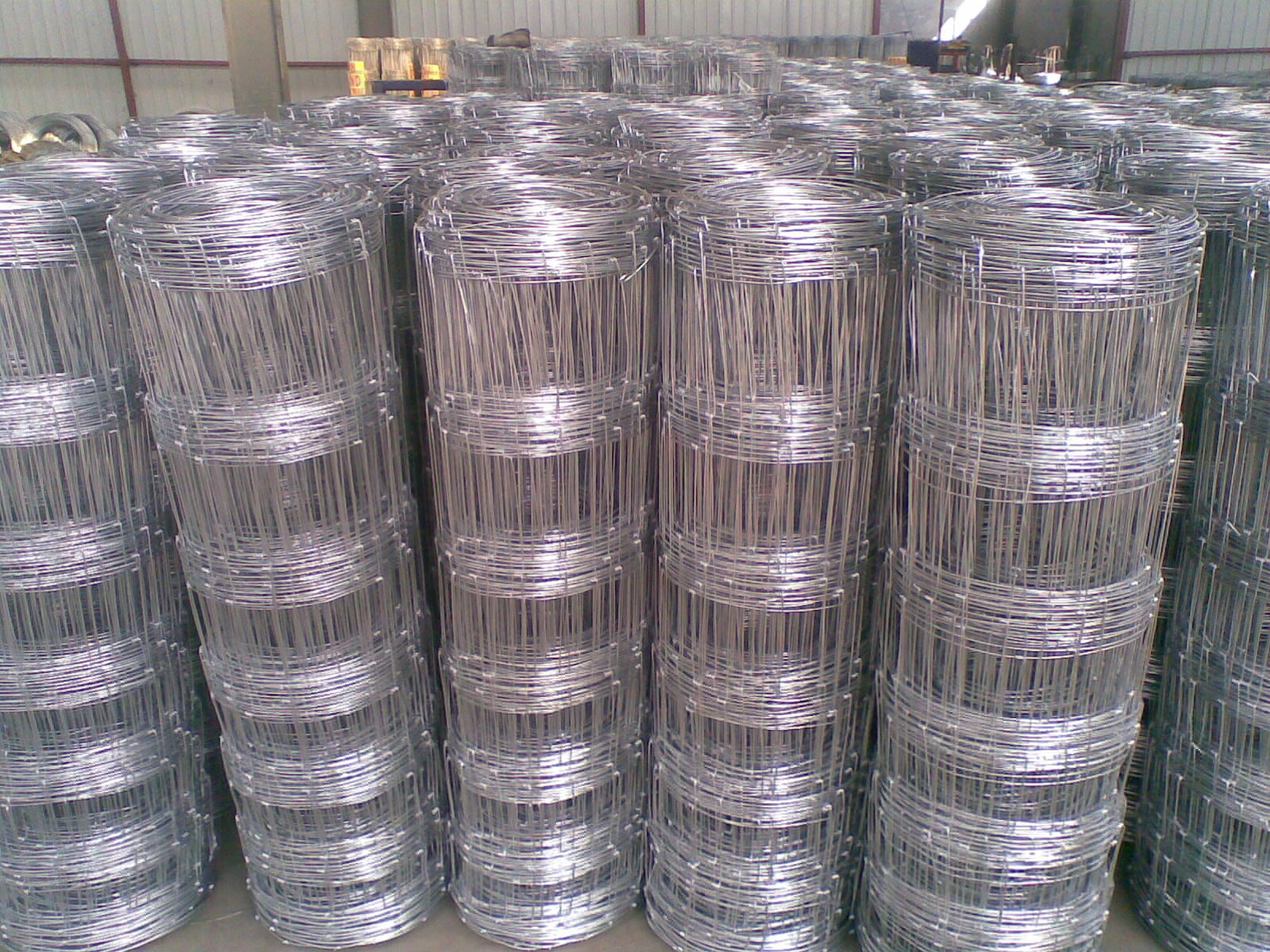

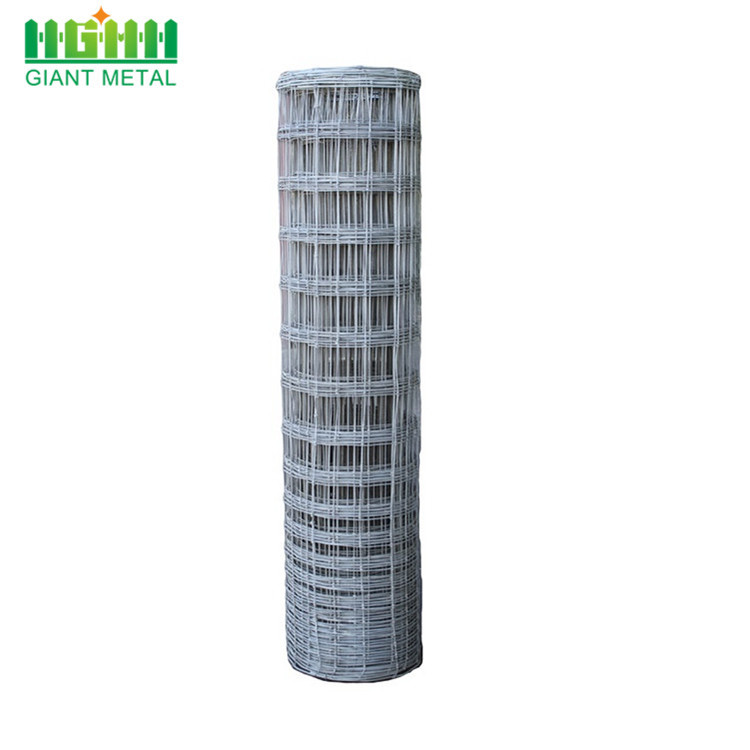

Hot Dip Galvanized Steel Wire Woven Field Fence Livestock Fence Panels
Livestock Fence Panels
Hinge joint fence also named Grassland fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time. Even the cut pieces will not deform under pressure. It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, animal, forestry, highway and environments.
Woven field fence Specifications
| No. | type | Specification | Weight (kg) |
Top and bottom wire Dia. (mm) | Body wire (mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102+114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.2 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102+114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102+114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
| Note: The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm). | |||||
PVC coated wire mesh and galvanized wire mesh is available.
Application

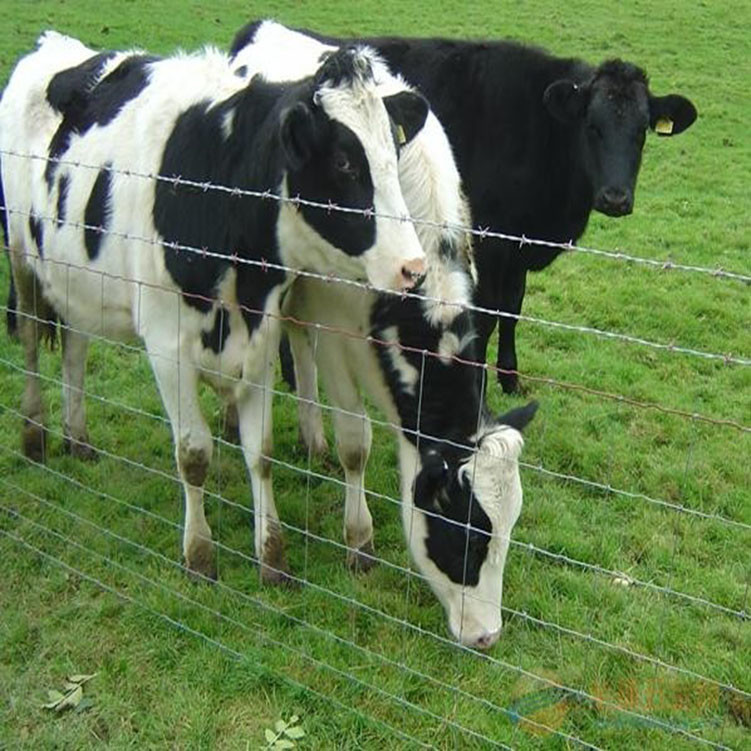

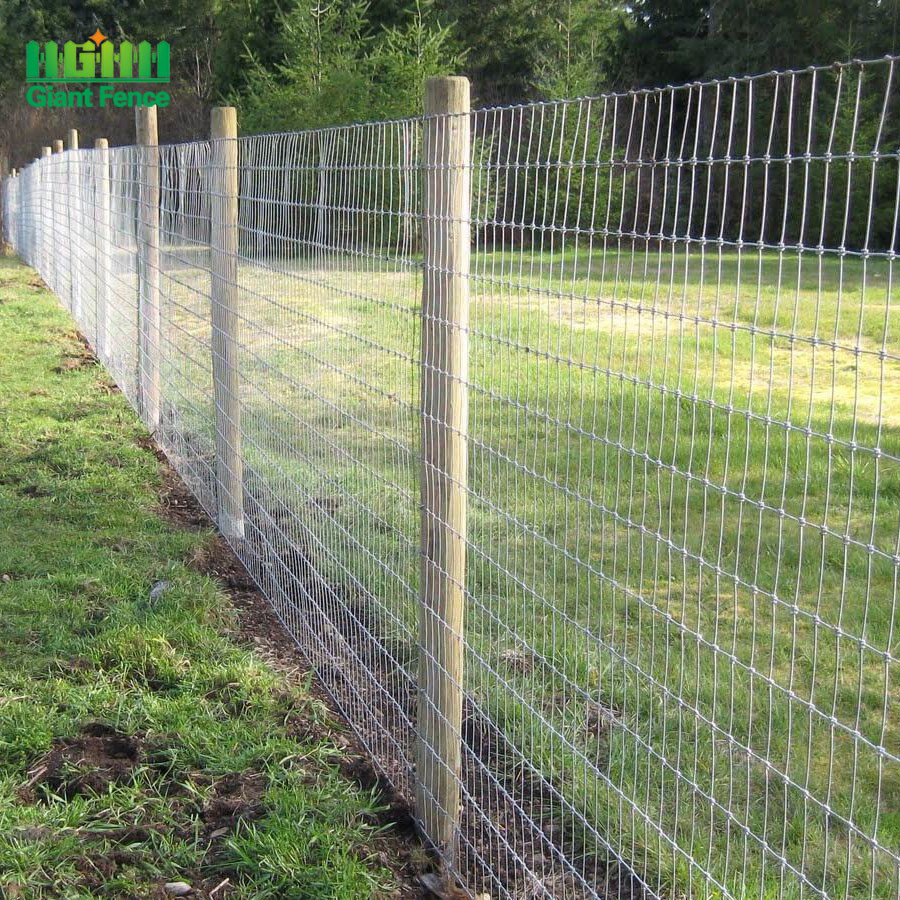

It is easy to use the planning of grassland resources, effectively improve grassland utilization and grazing efficiency, prevent grassland degradation and protect the natural environment. They are also applicable to agriculture, herd residents to establish family farms in the establishment of the border, farmland circle bar, forest nursery, afforestation enclosure, tourist area and hunting area, construction site isolation and maintenance.
Feature
Livestock panels are ideal for use in a number of applications around the farm or ranch, from cattle systems to round pens, from arenas to corrals, these panels are a solid choice anywhere confinement is needed.
The surface can do there types :1) hot dip galvanized after welded the zinc coating can reach 200g/m2
Produce process
Purchase the raw material wire--Zn/Ai coating test--woven--packing--Loading
Packing terms
packing with the pallet (steel pallet or wooden pallet)
