Round Post Bending Top Q235 Edge Protection Barriers

100sets
MOQ
Negotiable
Price
Round Post Bending Top Q235 Edge Protection Barriers
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Edge Protection Barriers Bending Type
Material:: Q195-235
Frame Finishing: Powder Coated
Color: Red
Mesh Opening: 50X200 Mm
Size: Customized
Feature: Easily Assembled
Application: Fall Protection For Rail Infrastructure
High Light:

Round Post Edge Protection Barriers

,

Q235 Edge Protection Barriers

,

Bending Top Edge Protection Barriers

Basic Infomation
Place of Origin: ISO9001
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF066-3
Payment & Shipping Terms
Packaging Details: 1.panel and post all packing with pallet
Delivery Time: 18-21days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 7000 pieces/month
Product Description

Powder Coating Welded Bending Top With Round Post Edge Protection Barriers





Edge Protection Barrier description



Edge protection barriers are fitted with unique features that make them market leaders as these clever barriers incorporate guardrails, toeboards and debris mesh into one single lightweight steel mesh barrier.



Edge protection system is incorporated into the manufacturing process by placing integrated connection points into the structural frame to accommodate Post Assemblies which support the steel mesh guardrail barrier. Edge protection is fixed to the wall panels pre-crane lift or alternatively from MEWP’s and once installed, provides a continuous guardrail system, for progressive storey lifts, greatly reducing the risk of the installers falling from height.



Specification Of Edge Protection Barrier



Type of Edge Protection Barriers
Type Type 1 Type 2 Type 3
Weight 9Kg 16Kg 18Kg
Length 1500mm 2000mm 2500mm
Height 1300mm 1400mm 1500mm
Finish Gaiv. wire+Powder coat
Material Metal
Wire diameter 4.0*5.0mm/6*5mm/8*6mm
Mesh size 75*75mm/50X100mm,50X200mm
Color Red, yellow, bule, white, Support customization



Advantages of Edge Protection Barrier



1. Reinfored side bars for enhanced durability

2. Returned top edge with no sharp edges

3. Closed and returned toeboard for greater debris containment

4. Steel mesh protection with impact-absorbing capacity


Feature Of Edge Protection Barrier



1. Profiled edges for extra strength;

2. Integrated toe-boards for in-built safety;

3. Steel components manufactured from high quality steel with galvanised finish;

4. Barriers can be powder coated in a choice of colours from the RAL range and customised with company logos in order to strengthen a customer's brand on site.



Application Of Edge Protection Barrier



Edge Protection Barrier Fence also named edge protection fence,edge protection is fully used in construction under building to protect people.



Easy to install steel edge protection barrier with impact-absorbing capacity, welds that can withstand a force of 500kg and full debris containment toe board.Suitable for Live edge protection; Slab edge protection; Debris guard barrier; Structural steelwork protection;Safe site walkway.

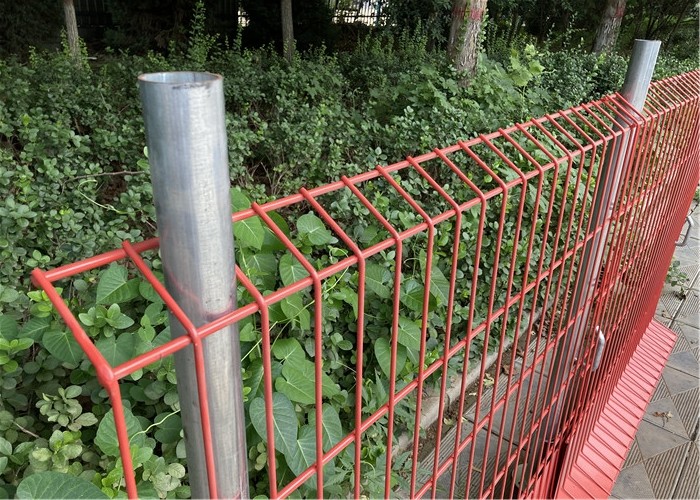

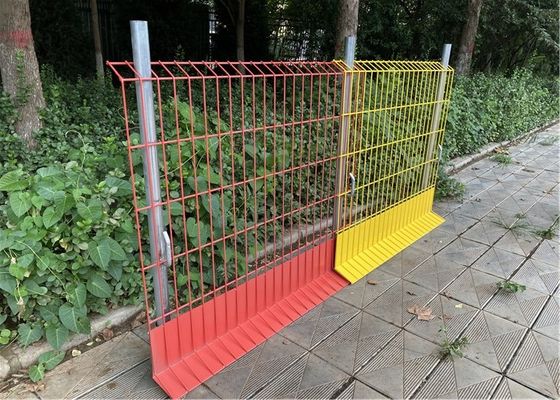

Round Post Bending Top Q235 Edge Protection Barriers 0

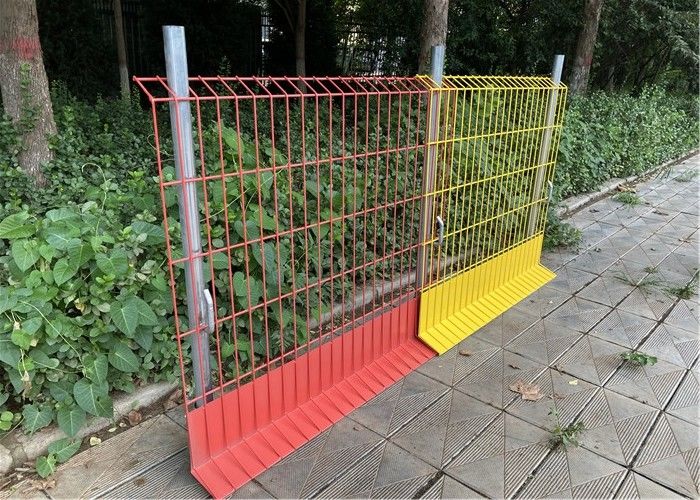

Round Post Bending Top Q235 Edge Protection Barriers 1
