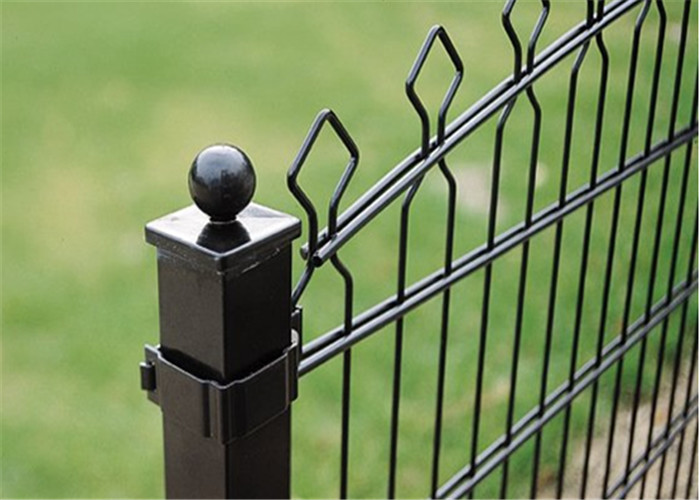

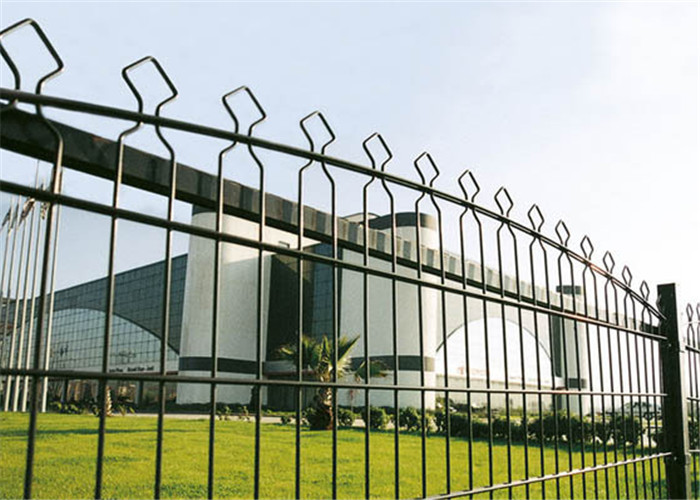

Powder Coating Prestige Decorative Welded Wire Garden Fence
Prestige panel fence
Prestige panel fence also Panle Fence has a diamond-shaped decorative top,it is recommended for professional fencing of sites where both rigidity and an attractive design required:residential buildings,garden, factory,villa, road diver,parks,schools,public buildings,swimming pools, pedestrian fence, etc...
Prestige Wire Mesh Fence is a rigid welded mesh fence. It is not only a ornamental fence but also a ideal practicability welded mesh fence, it is offer a solutions for all situations such as private garden, park, zoo, residential protection and so on. Prestige Mesh fence is a special twin wire fence that inherit rigid of twin wire fence on the basic of advantage of twin wire fence with more Decorative.
Prestige panel fence panel specifications
| Wire Dia | Hole size | Length | Height | No.of fittings |
|
5/4/5mm 6/5/6mm 8/6/8mm |
50x200mm 75x150mm 100x200mm |
2000mm 2200mm 2500mm 3000mm |
1500mm | 3 |
| 1800mm | 4 | |||
| 2000mm | 4 | |||
| 2200mm | 5 | |||
| 2400mm | 5 | |||
| 2800mm | 6 | |||
| Surface treatment |
1.Hot dipped galvanized after black wire welded 2.Powder coated after galvanized wire welded 3.Powder coated after Black wire welded |
|||
Post specifications
| Post view | Size | Thickness | Panel height | Post length | Surface treatment |
|

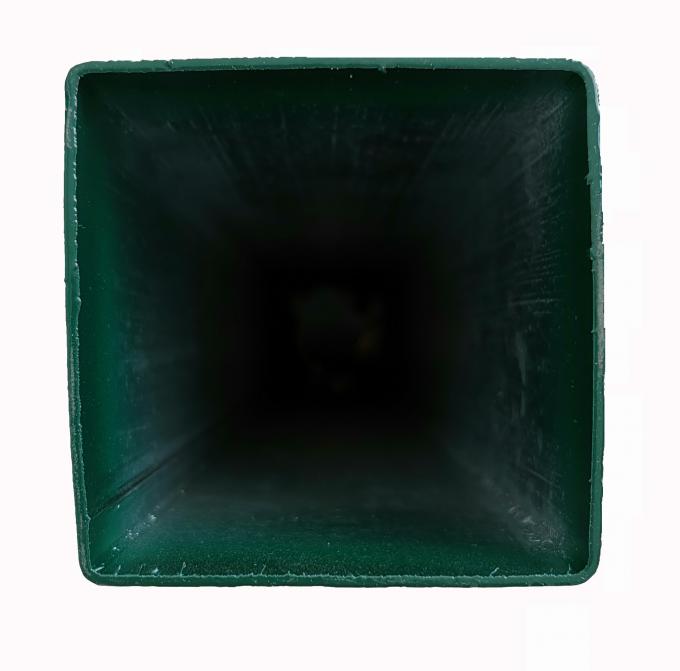

Square post
|
40x40mm 50x50mm 60x60mm |
1.0mm 1.1mm 1.2mm 1.5mm 1.8mm 2mm 2.5mm |
1500mm 1800mm 2000mm 2200mm 2400mm 2800mm |
2000mm 2400mm 2500mm 2800mm 3000mm 3400mm |
1.Black tube Hot-dipped galvanized 2.Galvanized tube PVC coated |
|
Rectangle post
|
30x50mm 40x60mm 60x80mm |
||||
|

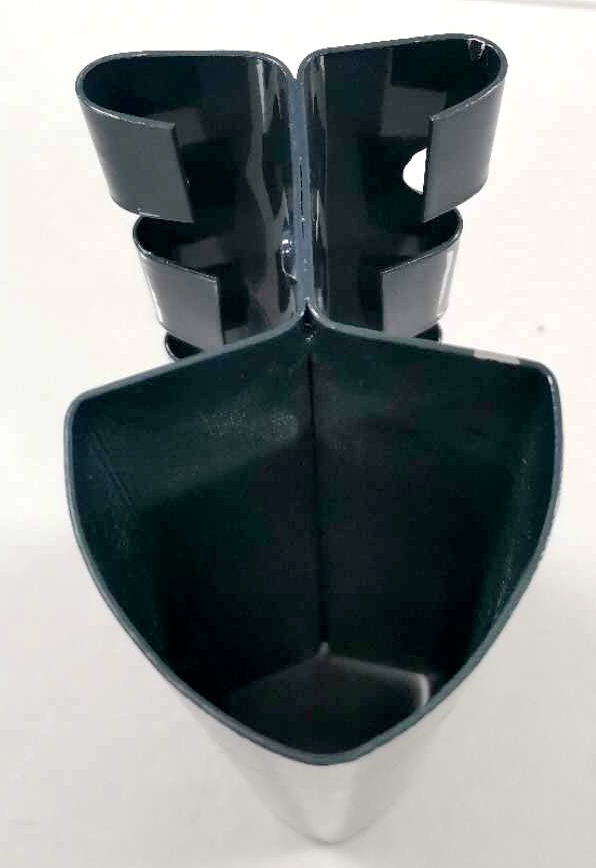

Peach post
|
50x70mm 70x100mm |
1.0mm 1.1mm 1.2mm |
Prestige panel fence application
Commercial grounds (Corporation, hotel, supermarket)
Private grounds (Courtyard, Villadom)
Public grounds (Park, zoo, train or bus station, lawn);
Road and transit (Highway, railway or road city transit);
Prestige panel fence Feature
Easy Installation
Cost effective
Durable, corrosion resistance, Galvanized wire then PVC coated
Different colors available according to customers’ special requirements. RAL 6005, 7016, etc
Different post available
Anti-climbing, high strength, strong protection ability
Prestige panel fence QC
Prestige panel fence Packing
