| Place of Origin: | Hebei，China |
| Brand Name: | Giant Fence |
| Certification: | ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015 |
| Model Number: | GF130 |
Welded Gabion Wire Baskets For Stone Retaining Gabion Box Wall
Gabion Fence System Details
Gabion mesh is a high - quality steel mesh.They can be filled on site with hard, durable stone to form a massive gravity retaining wall structure.Because they lack flexibility.Welded steel cages cannot be adapted to uneven settlement or used in rivers.Compared with the woven steel gabion, the strength of the welded steel gabion is higher.In order to meet different engineering requirements, welding gabion box can provide different line diameter and unit size.
Gabion Fence System Specifications:
| Materials | Mesh wire | Selvage wire | Tie wire | Mesh size | Length | Diaphragm | Width | Height |
|
Galvanized wire Galfan wire PE/PVC coated wire |
1.8mm 2.0mm 2.2mm 2.4mm 2.7mm 3.0mm |
2.4mm 2.7mm 3.0mm 3.4mm 4.0mm |
2.0mm 2.2mm 2.4mm |
60x80mm 80x100mm 100x120mm |
1.0m 2.0m 3.0m 4.0m 5.0m 6.0m |
No 1 2 3 4 5 |
0.5m 1.0m 1.5m 2.0m 3.0m |
0.3m 0.5m 1.0m 1.5m |
| Extra tie wire: 2% weight of gabion box | ||||||||
Gabion Fence System Applications

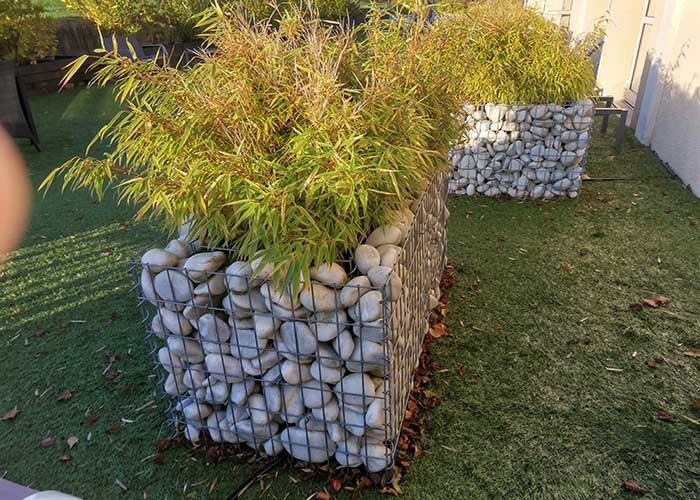

Gabion mesh can be used as a protective fence around your property, or as a support on a ramp or road.A single stone basket can be used in your garden to design different fences around the fireplace, as a garden bench or bar infrastructure, or to surround and decorate a pond or plant.You can even use them as decorative support for climbing plants.A metal basket is made of strong wire.
Gabion Fence System Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
