| Place of Origin: | China |
| Brand Name: | Giant Fence |
| Certification: | ISO9001:2001 |
| Model Number: | GF088 |
PVC Coated Or Galvanized BRC Welded Mesh Fence
BRC Welded Mesh Fence Introduction

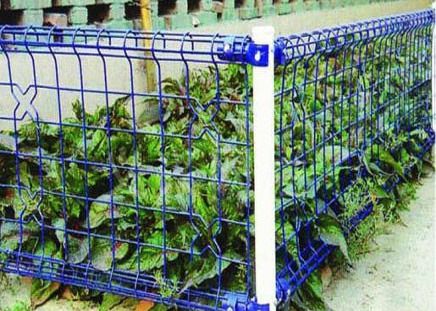

Double Loop Wire Mesh Fence
The panels consist of a unique and attractive, closed beam section located along the top and bottom edge of the panel. It is user friendly with no sharp or raw edges. These type of fencing panels are ideal where safety is a consideration.
Specifications of panels
|
Height(mm)
|
1000, 1200, 1500, 1800, 2000, 2500
|
|
Post distance(mm)
|
2500, 3000
|
|
Wire diameter(mm)
|
4.0, 5.0, 6.0
|
|
Mesh size(mm)
|
50 x 150; 50 x 200; 75 x 150
|
|
Post(mm)
|
Round: 48, 60; Square: 50 x 50, 60 x 60, 80 x 80
|
|
Material
|
low carbon steel
|
|
Surface treatment
|
hot dipped galvanized; polyester powder coating; PVC coated
|
|
Color
|
RAL Green or Black, or as your requirement.
|
|
Other specification are available on request.
|
|
Detail of parts
Packing
