Vandal Resistant 2430×2500mm Twin Bar Fencing

50sets
MOQ
Negotiable
Price
Vandal Resistant 2430×2500mm Twin Bar Fencing
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Wire Mesh Fence
Specification: 6/5/6mm,8/6/8mm
Length: 2.5m
Height: 2.0m
Treatment: Powder Coating
Color: Green,black,etc.
High Light:

2430×2500mm Twin Bar Fencing

,

Vandal Resistant Twin Bar Fencing

Basic Infomation
Place of Origin: Hebei,China
Brand Name: Giant Fence
Certification: ISO14001:2015/OHSAS 18001:2007/ ISO9001:2015
Model Number: GF085
Payment & Shipping Terms
Packaging Details: 1.panel and post all bulk in the container 2.panel with pallet and post bulk 3.panel and post all packing with pallet
Delivery Time: 8-15days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5000meter per week
Product Description

868 /656 Fence Panel Twin Bar Wire Mesh Double Wire Mesh Fencing





Double Wire Mesh Fencing Product



Designed with twin 8mm horizontal wires
Open mesh pattern provides high visibility to monitor sites without restriction
High level of vandal resistance
Available with optional V-Beam (Duo8V) to further increase strength
Supplied with standard or minimal projections at the top of the panel
Available either bolt down, in ground or on wall
For low level fences a safety capping is available
Can be supplied in 2.5 (Duo8) or 3mtr (Duo8L) panel widths

Apply color(as bellow)
Green
Black
Brown
White
Blue
Yellow
Red
Grey
Height× Width Panel(mm)
Mesh Size
(mm)
Wire Diameter
Post of Height
(mm)
Wire Dia
(mm)
Wire Dia
(mm)
Wire Dia
(mm)
630×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
1100
830×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
1300
1030×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
1500
1230×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
1700
1430×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
1900
1630×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
2100
1830×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
2400
2030×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
2600
2230×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
2800
2430×2500
50×200
8×2 + 6
6×2 + 5
6×2 + 4
3000



Double Wire Mesh Fencing Application



6/5/6 double wire panel fence zerun pillar price philippines mesh 50*200mm galvanized PVC coated for garden farm and houses
Instruction
Double wire fencehas the features of grid structure, beauty and practical, landscaping. In addition, Because of the double wire fencing features of easy transportation
and installing without the limitations of special terrain. It is adjust to mountain, hillside and winding zones.
Double wire fence has attractive appearance, various colors, it not only has the fencing function but also has the beautify effect.

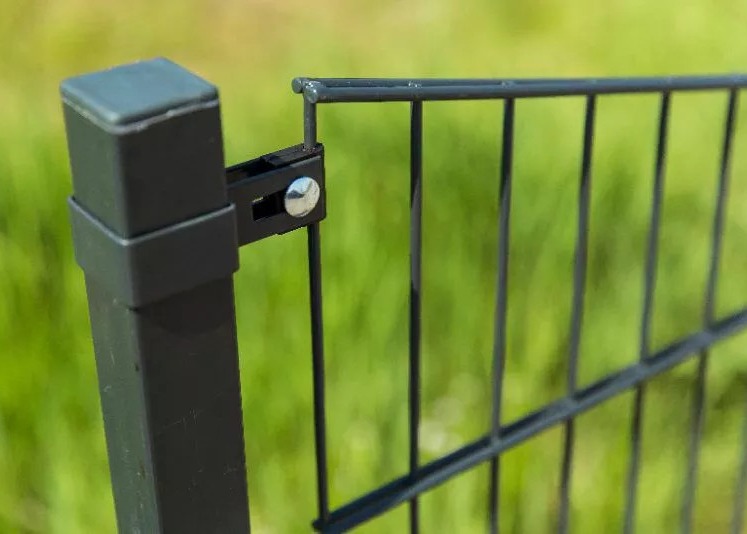

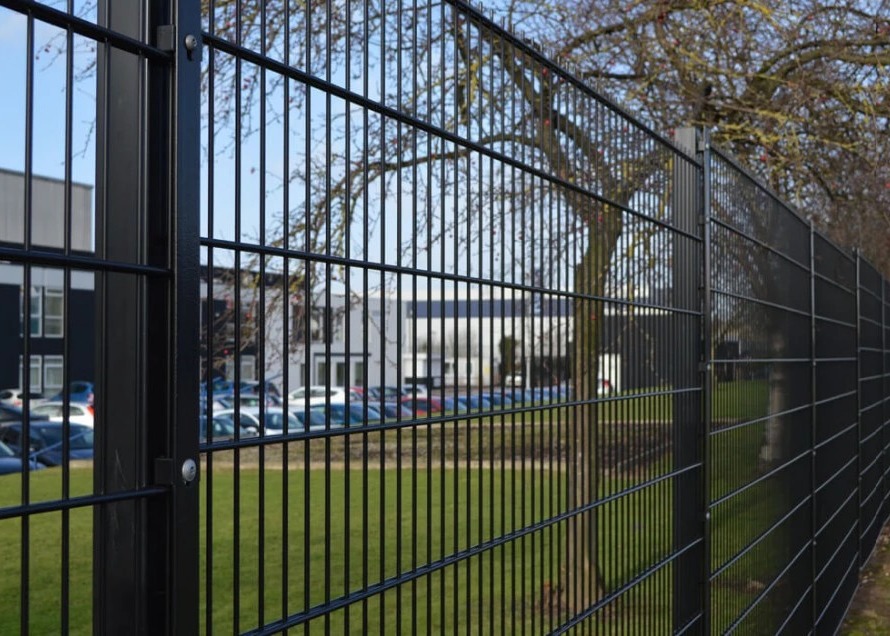

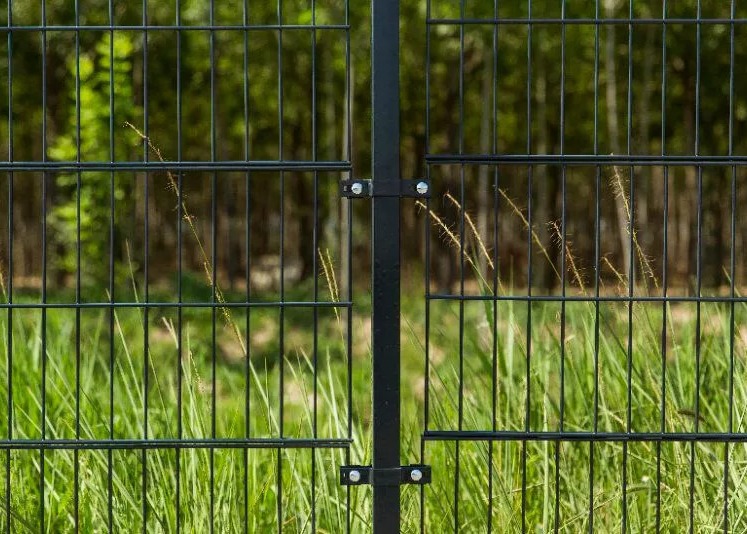

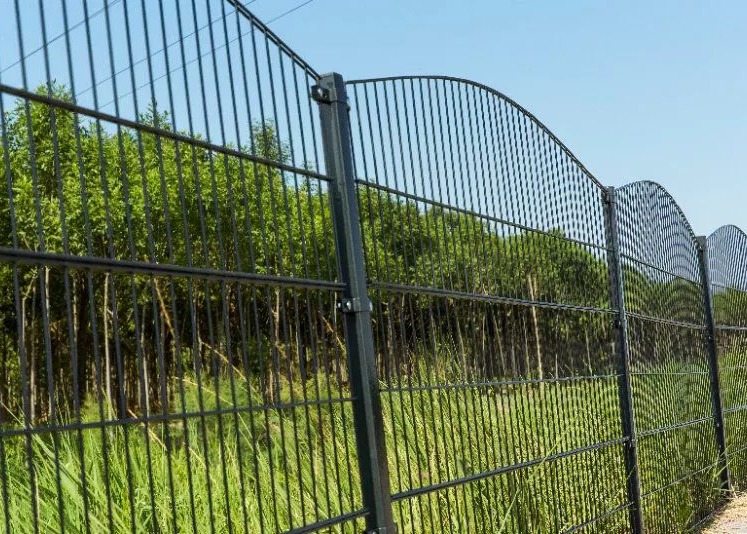

Vandal Resistant 2430×2500mm Twin Bar Fencing 0
