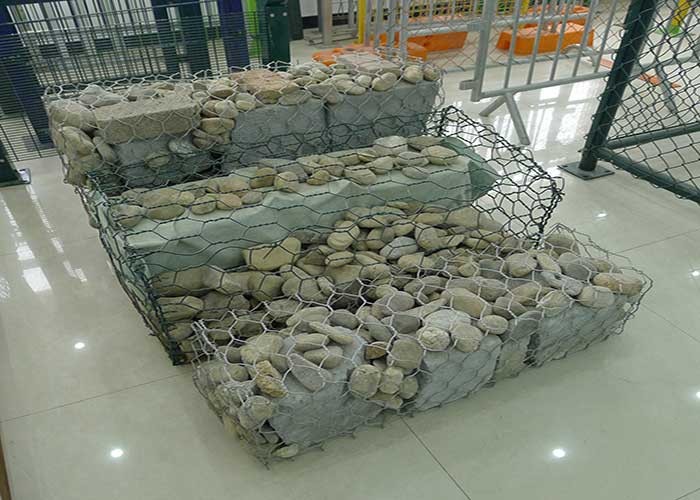

Erosion Control Gabion Stone Fence,
Galvanized Gabion Stone Fence
Erosion Control Retaining Wall PVC Coated Gabion Mesh Box

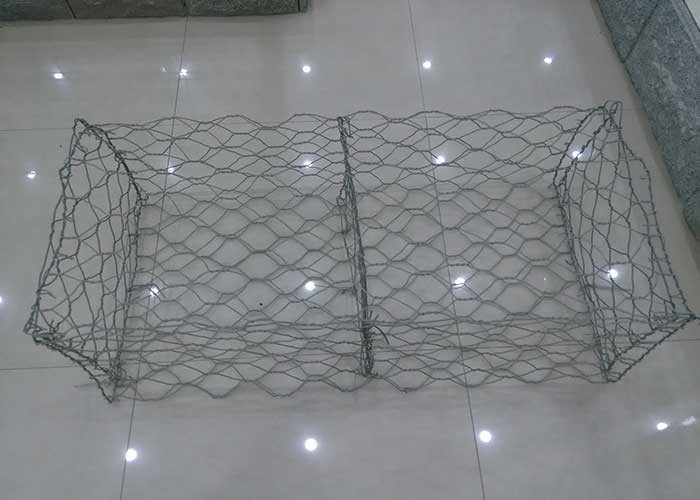

Gabion Box Details
Widely used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
Gabion Box Specifications:
|Materials||Mesh wire||Selvage wire||Tie wire||Mesh size||Length||Diaphragm||Width||Height|
PE/PVC coated wire
|Extra tie wire: 2% weight of gabion box|
Gabion Box Applications
6. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
7. Strong capacity of Anti-scour
Even reach to 6m/s.
8. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
