Galfan Seawall Protection Rustproof PVC Coated Gabion Fence System
Gabion Fence System Details
Widely used for making slope, rock,slope vegetation,rail-way or highway guardrail mesh stable. Also it can be made into basket, mesh mat for protecting dam which easily ruined by flood and lead to property losses. Therefore, application of gabion basket is the best solution of solving the problem that give dams lasting protection.
Gabion Fence System material:
1. Hot dipped galvanized wire
2. Hot dipped galvanized wire+pvc
3. Galfan coating(5%AL+95%ZN)/+pvc coating
4. Super galfan coating()10%AL+90%ZN)/+pvc coating
Gabion Fence System Specifications:
| Materials | Mesh wire | Selvage wire | Tie wire | Mesh size | Length | Diaphragm | Width | Height |
|
Galvanized wire Galfan wire PE/PVC coated wire |
1.8mm 2.0mm 2.2mm 2.4mm 2.7mm 3.0mm |
2.4mm 2.7mm 3.0mm 3.4mm 4.0mm |
2.0mm 2.2mm 2.4mm |
60x80mm 80x100mm 100x120mm |
1.0m 2.0m 3.0m 4.0m 5.0m 6.0m |
No 1 2 3 4 5 |
0.5m 1.0m 1.5m 2.0m 3.0m |
0.3m 0.5m 1.0m 1.5m |
| Extra tie wire: 2% weight of gabion box | ||||||||
Gabion Fence System Applications

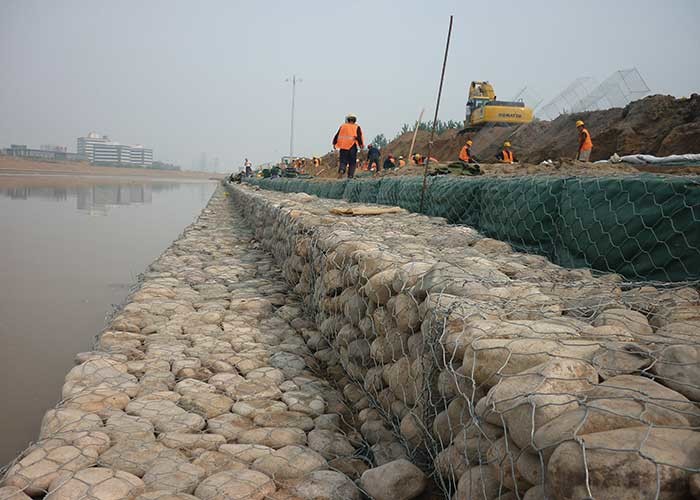

Gabion Fence System can be used as protective fences around your properties or as a support on slopes or paths. Single stone baskets can be used in your garden to design different fences around fireplaces, as base constructions for garden benches or bars, or to surround and decorate ponds or plants. You can even use them as a decorative support for climbing plants. Metal mesh baskets are made of firm wire.
Features
1. Easy to Install
Align wire mesh with the spiral pole to form a single structure, the pole will fall down automatically by itself; no tools necessary.
2. High Quality Material
Made of galvanized steel wire, resistant to rust and corrosion; with grids evenly spaced at 5 x 10 cm and hooks to fasten and keep the original shape, gabion is solid and durable.
3. Multi Purpose Use
Can be used as partitions for a retaining wall, fencing, garden decoration; road building or stabilizing inclines against erosion.
4. Cost Effective
Replace traditional walls to save cost and time, easy to operate and has an appealing look.
5. Custom Fillers
Materials for filler based on your need, cobblestone, rock, brick fragments, concrete and wood blocks; lights, flowers or plants can be added for decoration and as the highlight of your yard.
6. Soft structure
Exactly adapt to any changing of slope but not ruined by it, which more stable than rigid structure.
7. Strong capacity of Anti-scour
Even reach to 6m/s.
8. The structure has permeability essentially
Which let ground water leak while Precipitate suspended matter,mud to stay in the stone gaps, thus plants grow, restoring previous ecology.
Packing:
1. carton box or on pallet or bundle on the pallet
2. according to customers' request.
Service
1: Product Service
Our products offer 10 YEARS GUARANTEE.
2: Product customization services
We can customize products according to your requirements, including design and drawing.
3: After-sales service
Our after-sales service start immediately after signing the contract.
1.No matter FOB or CIF the price term is we would try our best to find a lowest freight cost for customers' reference.
2.The third-party inspection always gets real and true data from us and we will send production photos to customers if there is no inspection from the third-party.
3.Do our best to help customer arrange the shipment and customs clearance.
4.Installation, maintenance and repair instructions with full information.
Gabion Fence Workshop
